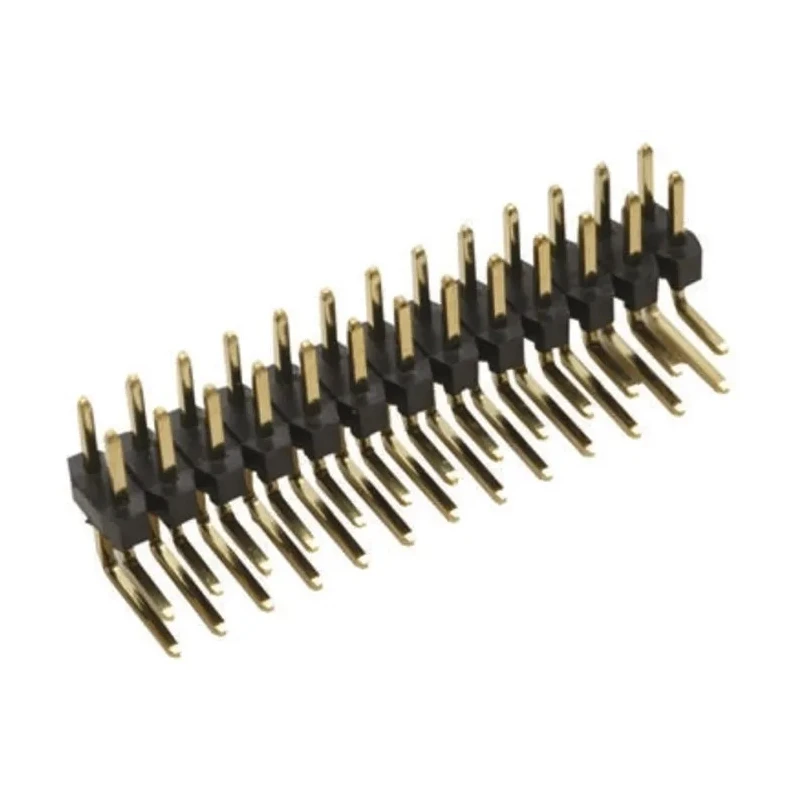

HARWIN M22 Series Right Angle Through Hole Pin Header, 16 Contacts, 2 mm Pitch, 2 Row, Unshrouded M22-2040805
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 1A |
| Model | M22-2040805 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 3.5mm |
Key Features
- This connector supports a 1A current rating for reliable electrical performance.
- Manufactured with a high-temperature nylon housing suitable for reflow soldering.
- Contacts are made of phosphor bronze with gold plating to ensure durability and excellent conductivity.
- The header features a right angle orientation and through-hole mounting for secure PCB placement.
- Tail pin length is 3 mm and mating pin length is 3.5 mm for optimal connection integrity.
- Operates effectively between -40°C and 105°C, ensuring performance stability in diverse environments.
- The design is unshrouded and has a row pitch of 2 mm, allowing customized cutting of housing where needed.
- Ideal for embedded PCs, motherboards, consumer electronics, communications, and industrial monitoring systems.
Product Description
HARWIN M22-2040805 is a high-quality right angle through hole pin header connector from the M22 series, designed to provide a reliable board-to-board connection. It features 16 male contacts arranged in 2 rows with a 2 mm pitch, making it suitable for compact and dense PCB layouts.
The housing is constructed from high temperature nylon thermoplastic material, enabling the connector to withstand the demands of reflow soldering processes without deformation. The contacts are made from phosphor bronze and plated with gold for increased durability and superior electrical conductivity.
This pin header has a tail pin length of 3 mm and mating pin length of 3.5 mm to ensure strong mechanical retention and secure electrical contact. It is unshrouded with a right angle orientation which allows it to fit in tight spaces and provides flexible design options for PCB assemblies.
The operating temperature range of -40°C to 105°C makes this connector suitable for demanding industrial and commercial applications including consumer electronics, communications equipment, control drives, and embedded computer systems.
The modular design allows the housing to be cut to smaller sizes if necessary, offering versatility in various board configurations. It is widely used as a standard connector in motherboard designs and large electronics systems.
This connector supports a 1A current rating for reliable electrical performance. Manufactured with a high-temperature nylon housing suitable for reflow soldering. Contacts are made of phosphor bronze with gold plating to ensure durability and excellent conductivity.
The header features a right angle orientation and through-hole mounting for secure PCB placement. Tail pin length is 3 mm and mating pin length is 3.5 mm for optimal connection integrity. Operates effectively between -40°C and 105°C, ensuring performance stability in diverse environments.
The design is unshrouded and has a row pitch of 2 mm, allowing customized cutting of housing where needed. Ideal for embedded PCs, motherboards, consumer electronics, communications, and industrial monitoring systems. Explore more from the HARWIN range and related PCB connectors at EnvMart for industrial and commercial electronics needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1A, ensuring reliable electrical performance.
It operates effectively between -40°C and 105°C, making it suitable for diverse environments.
The housing is made from high-temperature nylon, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
This model features 16 male contacts arranged in 2 rows.
The contact pitch is 2 mm, allowing for compact PCB layouts.
It utilizes through-hole mounting for secure placement on PCBs.
The tail pin length is 3 mm, while the mating pin length is 3.5 mm for optimal connection integrity.
This connector is unshrouded, providing flexibility in design options for PCB assemblies.
It is ideal for embedded PCs, motherboards, consumer electronics, communications, and industrial monitoring systems.
The termination type is solder, suitable for secure electrical connections.
The connector is manufactured in Taiwan.
The M22-2040805 features a right angle orientation, allowing it to fit in tight spaces.
