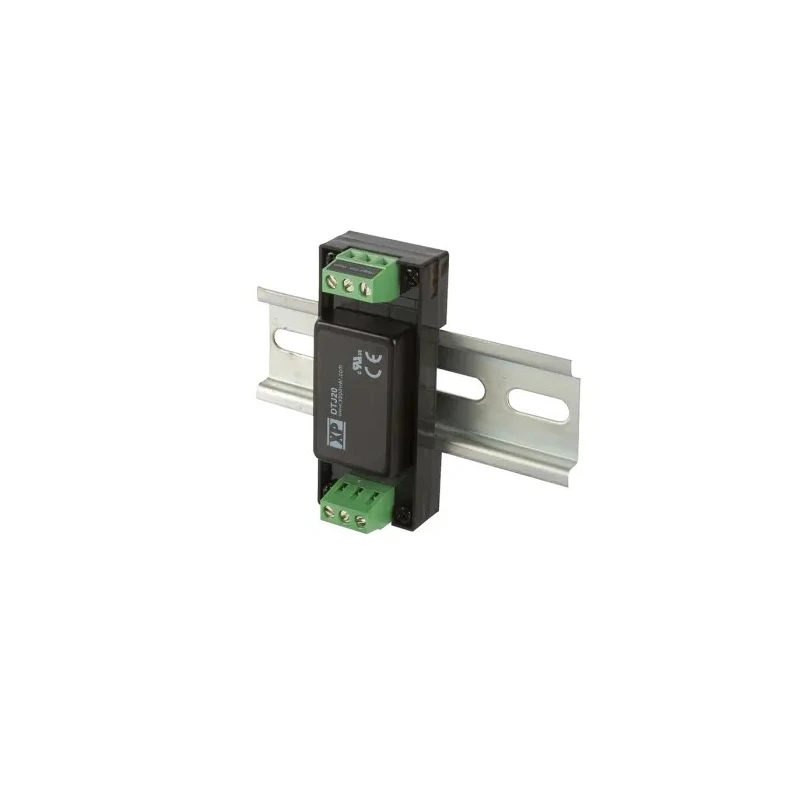

XP Power DC/DC Converter 12V DC Output, 9 - 36V DC Input, 1.67A, DIN Rail, 20W, 3kV Isolation, 100°C Max, -40°C Min DTJ20
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power DTJ20 DC/DC Converter, 12V dc/, 36V dc In |
| Brand | XP Power |
| Efficiency | 87% |
| Length | 76.2mm |
| Model | DTJ20 |
| Depth | 19.4mm |
| Width | 31.4mm |
| Mount Type | DIN Rail |
| Series | DTJ20 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 380000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 3kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
| Wide 4 | 1 input range |
Key Features
- Provides regulated 12V DC output from a wide 9 - 36V DC input range.
- Supports up to 1.67A output current for demanding loads.
- DIN rail mounting ensures easy integration in control panels.
- Withstands temperatures from -40°C up to 100°C for reliable operation.
- Features high 3kV DC isolation for enhanced safety.
- Compact design with 76.2mm length, 31.4mm width, and 19.4mm depth.
- Offers 87% efficiency and a long 380,000h MTBF.
- Suitable for industrial, automation, and commercial power applications.
Product Description
The XP Power DTJ2024S12-D is a high-performance DC/DC converter engineered for industrial and commercial power applications requiring stable 12V DC output from a broad input range. This converter delivers up to 1.67A from a 9 - 36V DC input, supporting diverse equipment and automation panels.
Designed for DIN rail mounting, it integrates easily into control cabinets and offers streamlined installation. It is constructed with lightweight yet durable materials and includes essential protective features such as short circuit protection, input reverse polarity protection, and soft start functionality, ensuring robust, safe operation even in demanding environments.
The DTJ2024S12-D achieves an impressive maximum output power of 20W and provides 3kV DC isolation, protecting sensitive systems from electrical disturbances. It is optimized for reliability, supporting ambient temperatures from -40°C up to 100°C and ensuring full power operation up to 80°C. With its high efficiency rating (87%) and long MTBF of 380,000 hours, this converter delivers dependable performance with minimal maintenance.
Its compact dimensions (76.2mm length, 31.4mm width, 19.4mm depth) make it suitable for space-constrained panels, while its six-pin configuration and chassis-mount capabilities expand its versatility. Remote On/Off and voltage trim functions are available, giving engineers additional control and flexibility.
Typical use cases include industrial automation, manufacturing systems, instrumentation, control cabinets, and commercial installations where reliable DC power and robust isolation are required.
Wide 4:1 input range allows compatibility with nominal supply voltages of 12V, 24V, and 48V. Regulated 12V DC output with single-channel operation. Protection features ensure safe system integration. Remote On/Off and voltage trim enhance operational flexibility.
3kV DC isolation supports high-reliability industrial requirements. Explore more XP Power DC converters and industrial power solutions from EnvMart for critical applications in automation and electronics.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 9 to 36V DC.
This unit has a maximum output power of 20W.
It can deliver an output current of up to 1.67A.
The dimensions are 76.2mm in length, 31.4mm in width, and 19.4mm in depth.
It is designed for DIN rail mounting, allowing for easy integration into control panels.
This converter has an efficiency rating of 87%.
It features a high isolation voltage of 3kV DC, enhancing safety for sensitive systems.
It can operate in temperatures ranging from -40°C to 100°C.
This model has a single output.
It includes short circuit protection, input reverse polarity protection, and soft start functionality.
It is suitable for industrial automation, manufacturing systems, instrumentation, and control cabinets.
The MTBF for this converter is 380,000 hours, indicating its reliability.
