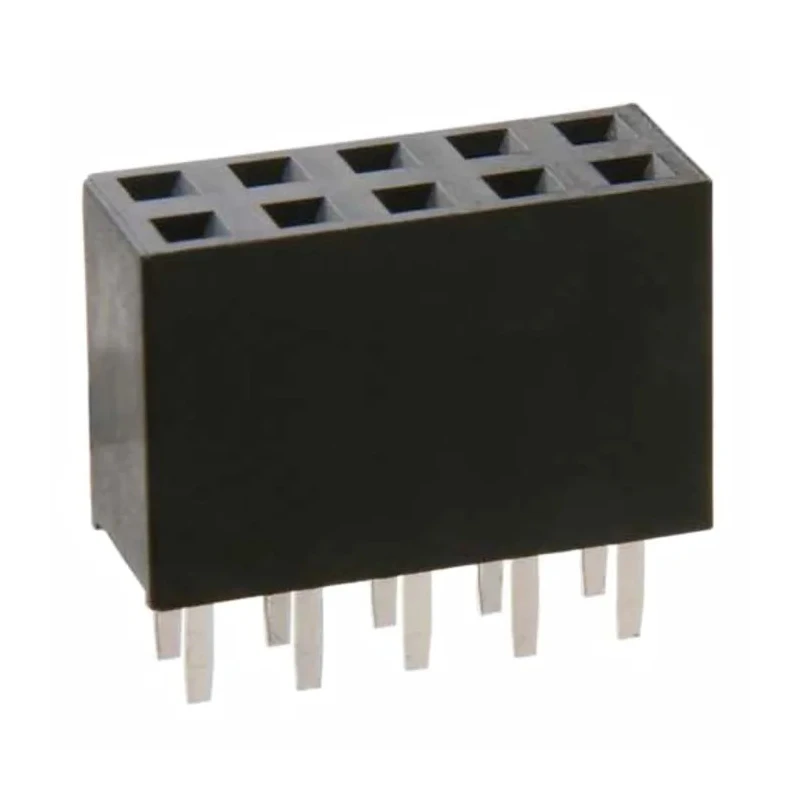

HARWIN M20 Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder M20-7830542
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7830542 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel, Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Double row design with 10 contacts arranged in two rows of 5 each.
- 2.54 mm pitch spacing ideal for standard PCB applications.
- Constructed with nylon housing for durability and electrical insulation.
- Contacts made of bronze with tin over nickel and gold plating for reliable conductivity.
- Designed for board-to-board connector systems with female contact gender.
- Operates up to 12A current and withstands voltage up to 1 kV.
- Solder termination type with 3 mm solder PC tails ensures firm attachment.
- Wide operating temperature range from -40°C to 105°C for industrial environments.
Product Description
HARWIN M20-7830542 is a series straight through hole PCB socket designed for robust and reliable electrical connections in PCB assemblies. It features 10 contacts arranged in a double row (2 rows, 5 contacts each) with a 2.54 mm pitch, ensuring compatibility with standard PCB layouts. This socket is constructed with a durable nylon housing that offers excellent insulation and mechanical stability.
The electrical contacts are made from high-quality bronze material, plated with tin over nickel and gold at the contact area to ensure long-lasting conductivity and corrosion resistance. The termination type is solder, with 3 mm solder PC tails providing a secure mechanical and electrical connection to the PCB.
Rated for a current of 12A and a voltage of up to 1 kV, this PCB socket is suitable for demanding applications requiring reliable board-to-board connections. It features a female contact gender and is oriented straight for through-hole mounting. The connector height is 8.5 mm, allowing for compact designs.
The product can operate in a temperature range from -40°C to 105°C, making it suitable for various industrial, laboratory, manufacturing, and electronic applications requiring durability under different environmental conditions.
Manufactured in China, the M20-7830542 meets industry standards despite no specific approvals being listed. Its robust construction and reliable contact plating make it ideal for use in electronic assemblies, industrial power connectors, and board interconnection systems.
Double row 10-contact PCB socket with 2.54 mm pitch. Nylon housing for durability and insulation. Bronze contacts with tin over nickel and gold plating. Solder termination with 3 mm PC tails. Rated for 12A current and 1 kV voltage.
Operating temperature range from -40°C to 105°C. Female contact gender, straight orientation. 8.5 mm connector height suitable for compact PCB layouts. Ideal for industrial, laboratory, and manufacturing use cases. Explore the HARWIN M20 series for reliable PCB Socket solutions across Electronics & Electricals categories on EnvMart for your next PCB connection requirement.
