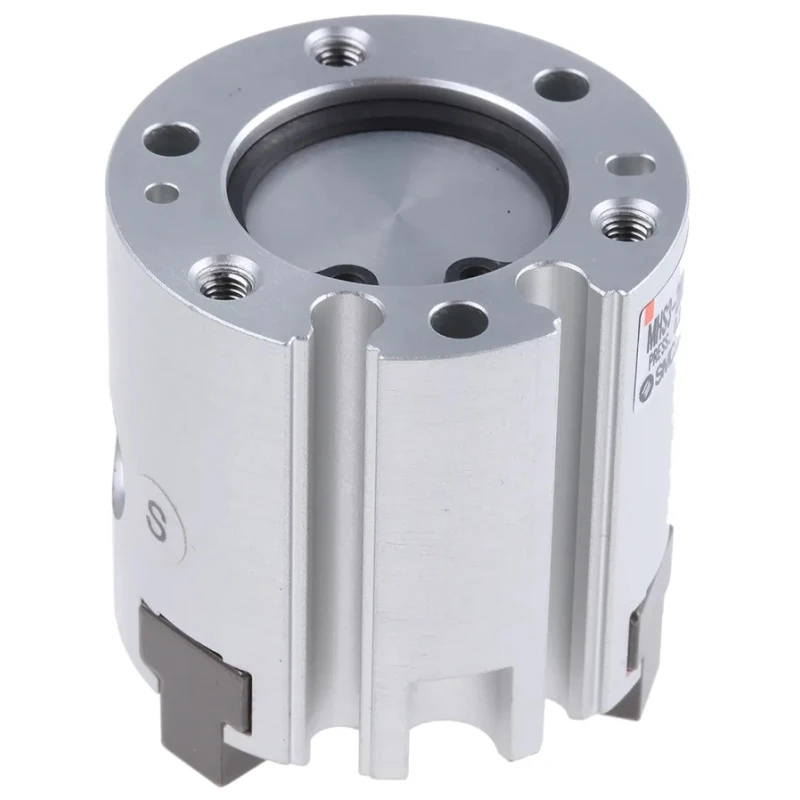

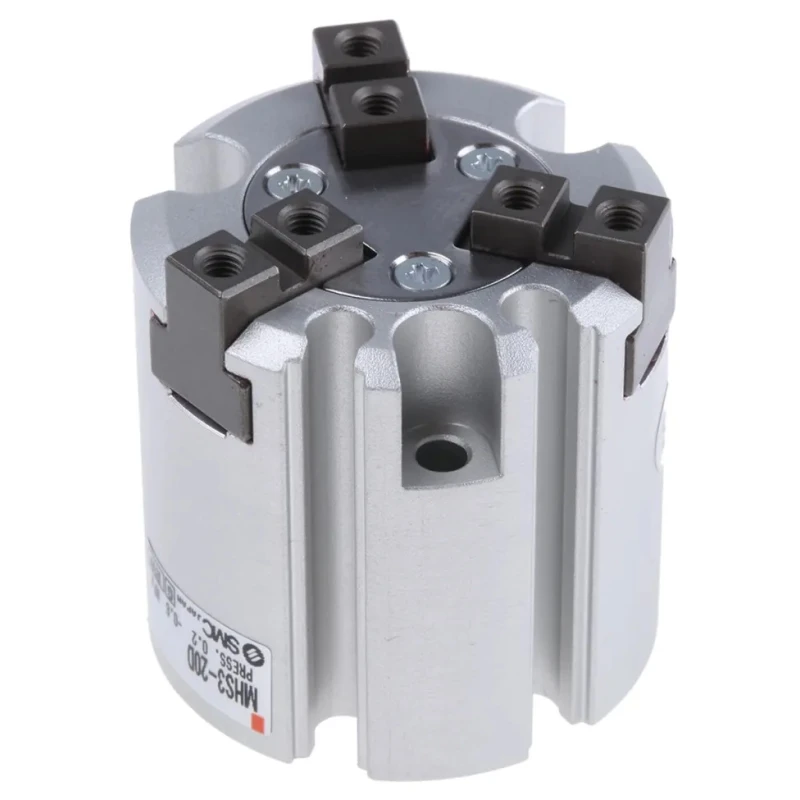

SMC 3 Finger Double Acting Pneumatic Gripper 20mm Bore Diameter 0.6 MPa Max Operating Pressure MHS3-20D

Free Delivery in India | Lowest Global Shipping Charges

SMC 3 Finger Double Acting Pneumatic Gripper 20mm Bore Diameter 0.6 MPa Max Operating Pressure MHS3-20D



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Maximum Operating Pressure	0.6 Mpa
Height	36mm
Length	36mm
Model	MHS3-20D
Gross Weight	100g
Width	38mm
Series	MHS3
Maximum Operating Temperature	60°C
Port Size	M5 x 0.8
Minimum Operating Temperature	-10°C
Stroke Length	4mm
Bore Diameter	20mm
Open Width	8mm
Action Type	Double Acting
Number of Fingers	3
Gripping Type	Parallel
Gripping Force - Internal	28N
Closed Width	6mm
Gripping Force - External	25N

Key Features

The gripper offers a 4mm stroke length for fine positioning adjustments.
It supports a maximum operating frequency of 120 cycles per minute for high-speed operation.
The 3 finger design provides 28 N internal and 25 N external gripping forces per finger.
Compact dimensions with 36mm height, length, and 38mm width reduce integration footprint.
Constructed for ambient temperatures from -10°C to 60°C for versatile industrial environments.
Lightweight at 100 grams, minimizing payload impact on robotic end-effectors.
Equipped with an M5 x 0.8 port size for pneumatic connection compatibility.
Designed with double acting action type for reliable opening and closing.

Product Description

SMC MHS3-20D Pneumatic Gripper is a compact 3 finger double acting gripper with a 20mm bore diameter engineered for high-precision parallel gripping tasks in industrial pneumatic systems. It supports a maximum operating pressure of 0.6 MPa to deliver robust gripping performance for automated pick-and-place and holding applications.

This gripper achieves up to 120 cycles per minute, facilitating high throughput in assembly line environments. Its 4mm stroke length allows small positional adjustments ensuring accurate part placement with ±0.01mm repeatability. Each finger can exert internal gripping force of 28 N and external force of 25 N, suitable for securing various component sizes and delicate parts.

The unit operates reliably in temperature ranges between -10°C and 60°C and features an M5 x 0.8 pneumatic port for easy air supply integration. With compact dimensions of 36mm height and length and 38mm width, and a lightweight mass of 100 grams, it is easily mountable on robotic end-effectors without affecting payload significantly.

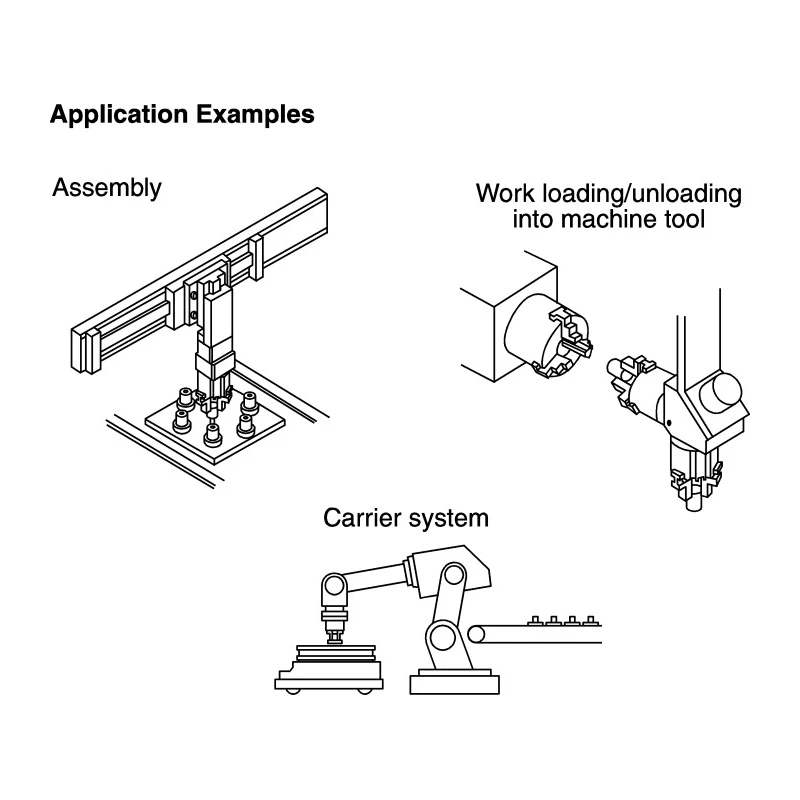

SMC MHS3-20D Pneumatic Gripper is ideal for automated small-part insertion, removal, and assembly line gripping requiring precise, fast, and secure handling. Its double acting mechanism and magnetic piston feedback allow for reliable open and close cycles in industrial manufacturing, laboratory automation, and robotic applications.

The gripper offers a 4mm stroke length for fine positioning adjustments. It supports a maximum operating frequency of 120 cycles per minute for high-speed operation. The 3 finger design provides 28 N internal and 25 N external gripping forces per finger.

Compact dimensions with 36mm height, length, and 38mm width reduce integration footprint. Constructed for ambient temperatures from -10°C to 60°C for versatile industrial environments. Lightweight at 100 grams, minimizing payload impact on robotic end-effectors.

Equipped with an M5 x 0.8 port size for pneumatic connection compatibility. Designed with double acting action type for reliable opening and closing. Explore our comprehensive range of Pneumatic Grippers and industrial automation components for efficient production and laboratory systems at EnvMart.
