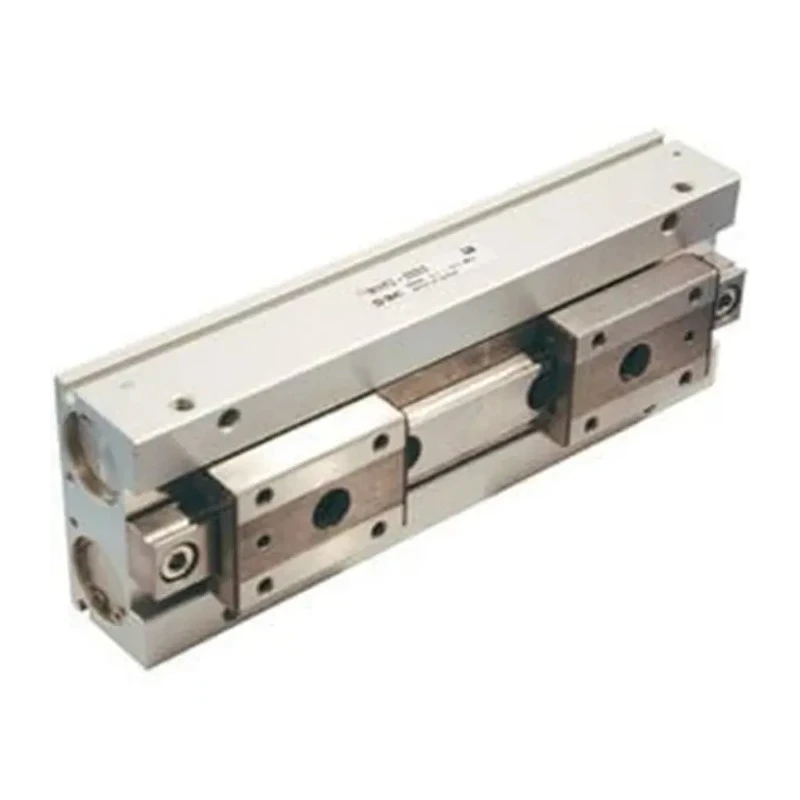

SMC 2 Finger Double Acting Action Pneumatic Gripper, Bore Diameter 20mm, Stroke Length 40mm, Low Profile Gripping MHF2-20D1R



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	7 bar
Height	41mm
Length	114mm
Model	MHF2-20D1R
Gross Weight	850g
Width	62mm
Series	MHF2
Maximum Operating Temperature	60°C
Port Size	M5
Minimum Operating Temperature	-10°C
Stroke Length	40mm
Bore Diameter	20mm
Action Type	Double Acting
Number of Fingers	2
Gripping Type	Low Profile
Gripping Force - External	141N

Key Features

The low profile design saves substantial space compared to comparable models.
Maximum operating pressure of 7 bar ensures strong gripping force.
Gripping forces both internal and external are rated at 141N for reliable hold.
Constructed to operate between minimum -10°C and maximum 60°C temperatures.
Compact dimensions with height 41mm, width 62mm, and length 114mm fit in tight installations.
Port Size M5 allows for standard pneumatic connections.
Maximum operating frequency of 120 cycles per minute supports rapid automation tasks.
Manufactured in Japan ensuring high-quality engineering standards.

Product Description

The SMC MHF2-20D1R is a 2 Finger Double Acting Pneumatic Gripper engineered for industrial automation and material handling applications. Featuring a low profile gripping type, this gripper minimizes height to approximately one-third that of equivalent MHZ series grippers, making it ideal for installations requiring compact design without sacrificing gripping force.

Equipped with a 20mm bore diameter and a 40mm stroke length, the MHF2 series offers excellent control over gripping action with consistent accuracy and smooth operation. The double acting action type allows force application during both opening and closing strokes, enhancing operational reliability and speed.

The gripper supports a maximum operating pressure of 7 bar and delivers both internal and external gripping forces of 141N, enabling it to securely handle diverse workpieces in pneumatic systems. Its build supports a temperature range from -10°C to 60°C, making it suitable for varied industrial environments.

Design considerations include easy positioning for mounting attachments and improved mounting repeatability, facilitating straightforward integration into automated assemblies and robotic tooling. The port size M5 ensures compatibility with standard pneumatic fittings, supporting efficient system connections.

The low profile design significantly reduces spatial requirements in pneumatic applications. High gripping force capacity enhances effective material manipulation. Robust mechanical performance ensures reliable operation at up to 120 cycles per minute.

Compact external dimensions of 114mm length, 62mm width, and 41mm height optimize installation space. Constructed to precise Japanese manufacturing standards for dependable quality.

This pneumatic gripper is extensively used in automation, manufacturing, robotic assembly, laboratory automation, and other industrial fields requiring precise, repeatable gripping action. Explore similar Pneumatic Grippers and other high quality pneumatic components in the Hydraulic & Pneumatic Tools category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this model is 7 bar, ensuring a strong gripping force during operation.

This unit has a height of 41mm, a width of 62mm, and a length of 114mm, making it compact for tight installations.

The stroke length is 40mm, and the bore diameter is 20mm, providing effective control over the gripping action.

It delivers both internal and external gripping forces of 141N, allowing it to securely handle various workpieces.

The gripper is designed to operate between -10°C and 60°C, making it suitable for diverse industrial environments.

This model features a double acting action type, allowing for force application during both opening and closing strokes.

The port size is M5, which allows for standard pneumatic connections, ensuring compatibility with various systems.

This model is a 2 finger gripper, designed for precise and repeatable gripping actions.

It supports a maximum operating frequency of 120 cycles per minute, facilitating rapid automation tasks.

This pneumatic gripper is manufactured in Japan, ensuring high-quality engineering standards.

It is extensively used in automation, manufacturing, robotic assembly, and laboratory automation, among other industrial fields.

The design includes easy positioning for mounting attachments and improved mounting repeatability for straightforward integration into automated assemblies.
