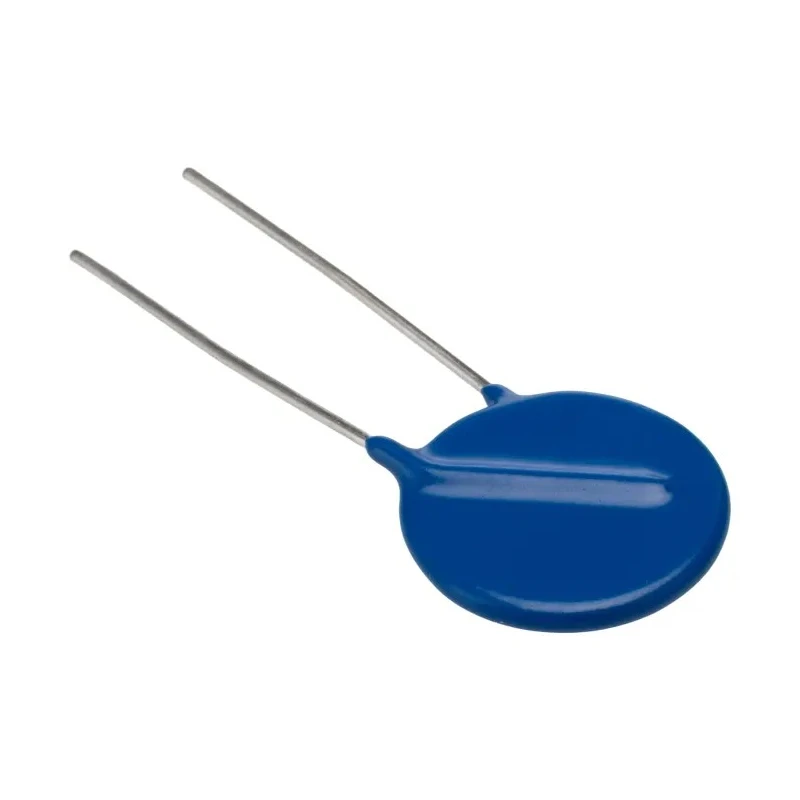

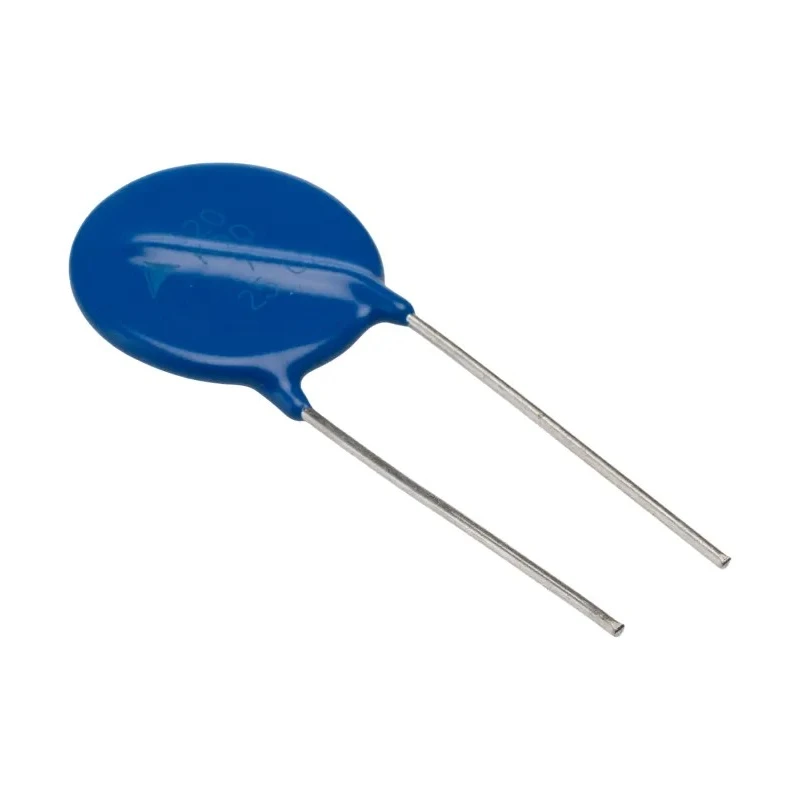

TDK Standard Metal Oxide Varistor 13 nF 20 A Clamping 65 V Diameter 21.5 mm B72220S0200K101
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 21.5mm |
| Brand | TDK |
| Material | Metal |
| THICKNESS | 5.1mm |
| Model | B72220S0200K101 |
| Packaging | Bulk |
| Series | Standard |
| Energy Rating | 18J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 13nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 26V dc |
| Standards/Approvals | VDE, UL, IEC, CSA, CECC |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 20V ac |
| Clamping Voltage VC | 65V |
| Clamping Current | 20A |
| Maximum Surge Current | 2kA |
| Varistor Voltage | 33 V |
| Panasonic, V Surge Absorber 12.2 nF 10 A, Varistor 33 VBrand | Panasonic |
Key Features
- Designed for surge protection with a clamping voltage of 65 V.
- Diameter of 21.5 mm ensures compact size for electronic circuits.
- Rated maximum AC voltage of 20 V and DC voltage of 26 V.
- Energy rating of 18 Joules supports transient energy absorption.
- Operates reliably between -40°C and 85°C temperature range.
- Epoxy-coated ceramic body with tinned copper leads for durability.
- Lead pitch of 10 mm suits standard PCB mounting.
- Compliant to industry standards including VDE, UL, IEC, CSA, and CECC.
Product Description
TDK B72220S0200K101 is a Standard Metal Oxide Varistor designed for effective surge protection in electronic circuits. Featuring a capacitance of 13 nF and a clamping current of 20 A, this varistor protects devices by clamping voltage spikes at 65 V, ensuring stable performance in sensitive electrical environments.
The varistor has a diameter of 21.5 mm and thickness of 5.1 mm, facilitating compact integration in circuit boards. Made with a ceramic body epoxy-coated for ruggedness and tinned copper leads, it offers reliable electrical connections and mechanical stability.
It is rated for a maximum AC voltage of 20 V and DC voltage of 26 V, withstanding surge currents up to 2 kA. The energy rating of 18 Joules makes it suitable for handling transient energy pulses often encountered in industrial and consumer electronics.
Operating temperature spans from -40°C to 85°C, ensuring dependable operation in varied environmental conditions. The 10 mm lead pitch supports easy mounting on standard printed circuit boards.
This component is part of TDK's Standard series and complies with multiple international standards such as VDE, UL, IEC, CSA, and CECC, reflecting quality and safety assurance for industrial, commercial, and consumer electronic applications.
Designed for surge voltage protection with 65 V clamping voltage. Epoxy-coated ceramic construction for enhanced durability and insulation. Capacitance of 13 nF suitable for transient suppression. Supports clamping current of 20 A and surge current rating of 2 kA.
Wide operating temperature range from -40°C to 85°C. Complies with VDE, UL, IEC, CSA, and CECC standards for reliability. Compact form factor with 21.5 mm diameter and 5.1 mm thickness. 10 mm lead pitch for standard PCB assembly.
This Varistor is ideal for use in industrial electronics, power supply protection, telecommunications, consumer devices, and other applications requiring robust transient voltage suppression. Discover more TDK surge protection components at EnvMart to ensure optimal and reliable system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 65 V, which helps protect devices by clamping voltage spikes.
It can withstand a maximum surge current of 2 kA, making it suitable for handling transient energy pulses.
This varistor has a capacitance rating of 13 nF, which is suitable for transient suppression applications.
The operating temperature range for this unit spans from -40°C to 85°C, ensuring reliable performance in various environments.
The lead pitch is 10 mm, which is compatible with standard PCB mounting requirements.
The maximum AC voltage rating is 20 V, while the maximum DC voltage rating is 26 V.
It has an energy rating of 18 Joules, which supports its capability to absorb transient energy.
The varistor features an epoxy-coated ceramic body and tinned copper leads, providing enhanced durability and insulation.
It complies with several international standards, including VDE, UL, IEC, CSA, and CECC, reflecting its quality and safety assurance.
The varistor has a diameter of 21.5 mm and a thickness of 5.1 mm, allowing for compact integration in electronic circuits.
This varistor is ideal for use in industrial electronics, power supply protection, telecommunications, and consumer devices requiring robust transient voltage suppression.
The model number for this varistor is B72220S0200K101, which is part of TDK's Standard series.
