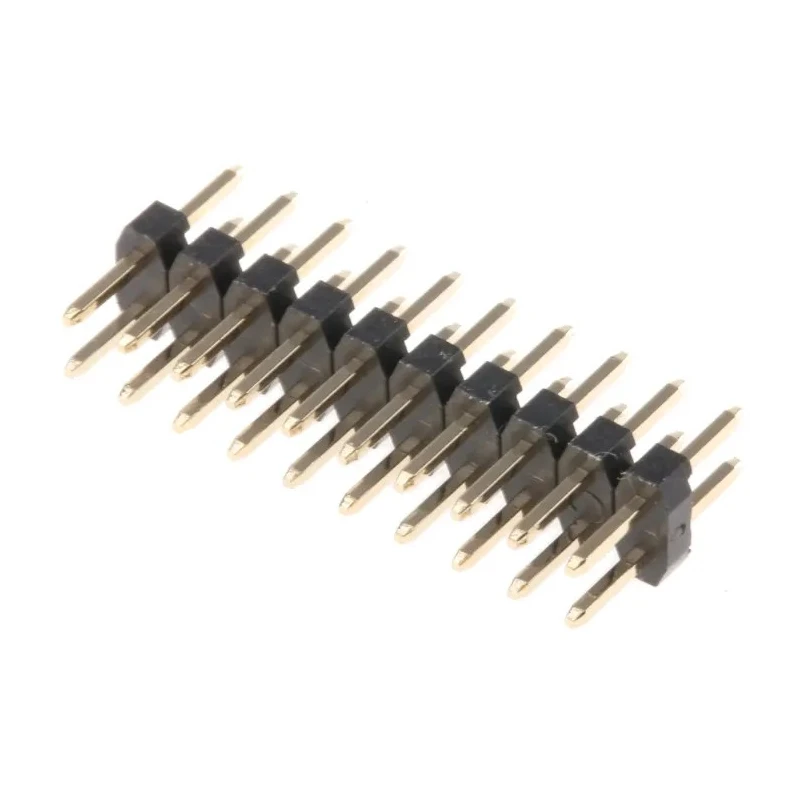

HARWIN M22 Series Straight Through Hole Pin Header, 20 Contacts, 2 mm Pitch, 2 Row, Unshrouded M22-2021005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2021005 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.4mm |
| Mating Pin Length | 3.5mm |
Key Features
- The header features 2 rows of male contacts for secure connections.
- Constructed with nylon housing for high temperature resistance during soldering.
- Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Operates reliably between -40°C to 105°C with a voltage rating of 500V and current of 1A.
- Mount type is through-hole with straight orientation and unshrouded design for flexibility.
- Tail pin length is 3.4 mm and mating pin length is 3.5 mm for optimal fit.
- These connectors can be cut to custom sizes due to castellated housing design.
- Widely used in embedded PCs, motherboards, consumer electronics, communications, drives and controls, and industrial monitoring.
Product Description
HARWIN M22-2021005 Series Straight Through Hole Pin Header is a high-quality 2 mm pitch PCB connector designed for board-to-board applications. Featuring 20 male contacts arranged in 2 rows, this header provides a robust connection interface suitable for diverse electronic systems.
The connector houses are made from high temperature resistant nylon which allows them to endure reflow soldering processes without degradation. The phosphor bronze contacts with gold plating ensure excellent electrical conductivity and durability, even under harsh environments.
Designed with a straight orientation and unshrouded configuration, this pin header enables easy integration and mating with compatible M22 series sockets, housings, and jumpers. The tail pin length of 3.4 mm and mating pin length of 3.5 mm ensure reliable mechanical and electrical contact.
Its operating temperature range from -40°C to 105°C and voltage rating of 500V combined with a current rating of 1A make it suitable for demanding industrial, consumer electronics, communications, and embedded computing uses. The castellated housings allow customization by cutting to required sizes while maintaining tail integrity.
The header features 2 rows of male contacts for secure connections. Nylon housing offers high temperature resistance compatible with reflow soldering. Phosphor bronze contacts with gold plating provide excellent conductivity and corrosion resistance.
Rated for 1A current and 500V voltage with operating temperatures from -40°C to 105°C. Through hole mount type with straight orientation and unshrouded design offers versatile application options. Tail pin length of 3.4 mm and mating pin length of 3.5 mm ensure reliable connections.
Castellated housing design enables cutting to smaller sizes as needed. Ideal for embedded PCs, motherboards, consumer electronics, communications, drives, controls, and industrial monitoring.
HARWIN is renowned for quality PCB connectors in industrial and electronic manufacturing. This M22 series pin header combines durable construction with excellent electrical performance to meet stringent requirements. Explore the Electronics Components section at EnvMart for compatible connectors and related products to optimize your designs.
Explore more products in our PCB Pin Header category.
