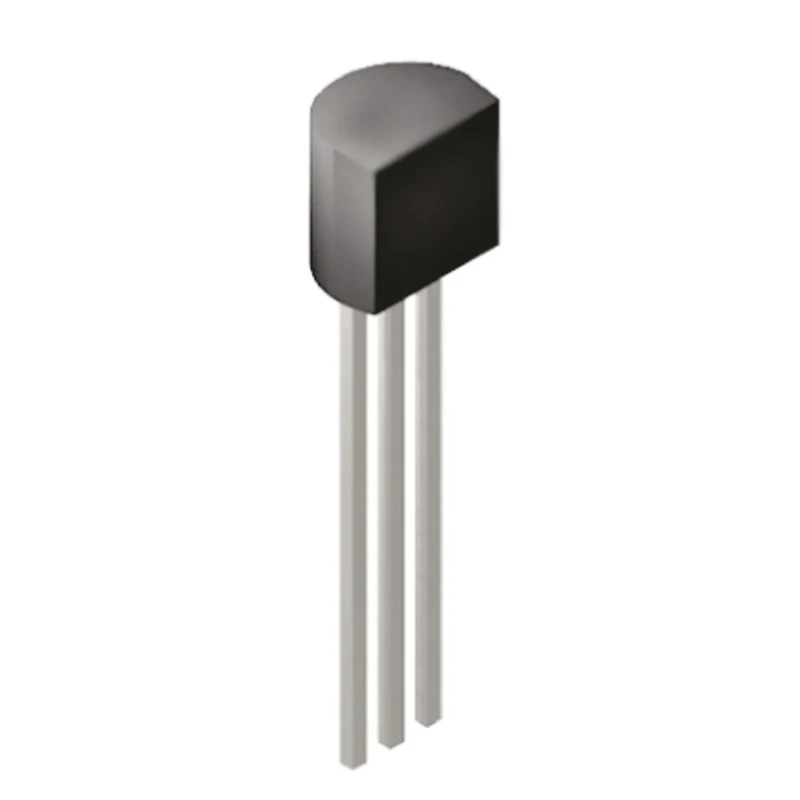

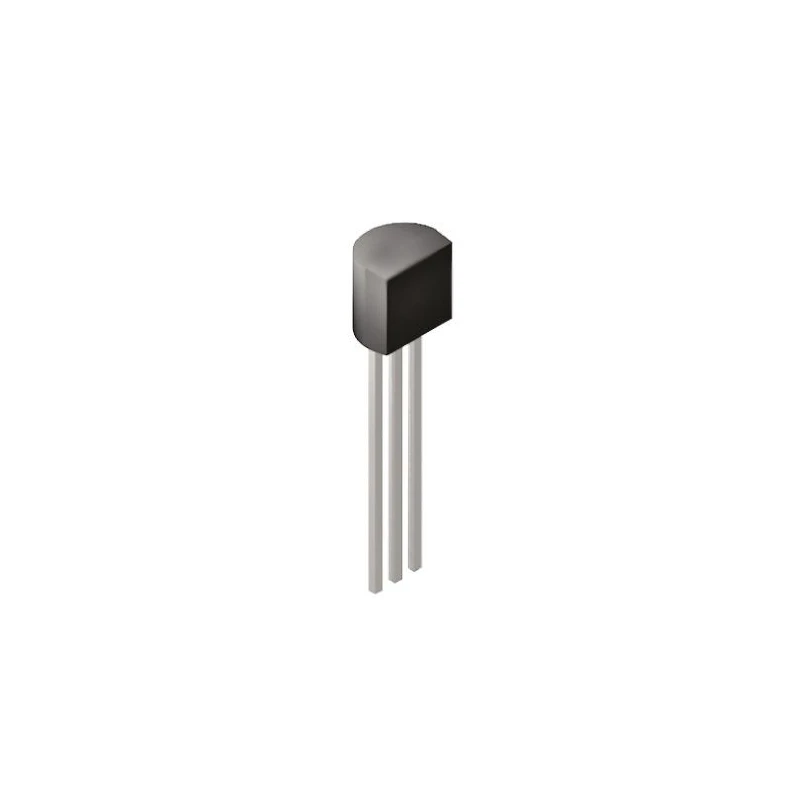

onsemi Small Signal PNP Transistor 100 mA, 65 V, 3-Pin TO-92 BC556ABU

Free Delivery in India | Lowest Global Shipping Charges

onsemi Small Signal PNP Transistor 100 mA, 65 V, 3-Pin TO-92 BC556ABU

Name: onsemi Small Signal PNP Transistor 100 mA, 65 V, 3-Pin TO-92 BC556ABU
Brand: onsemi
SKU: 132432
Price: 0.07 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	20.95mm
Length	5.2mm
Model	BC556ABU
Width	4.19mm
Mount Type	Through Hole
Series	BC556
Maximum Operating Temperature	150°C
Package Type	TO-92
Minimum Operating Temperature	0°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	65V
Minimum DC Current Gain hFE	110
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-80V
Maximum Power Dissipation Pd	500mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	10MHz

Key Features

This transistor features a maximum power dissipation of 500 mW suitable for low-power electronic circuits.
It is designed with a single transistor configuration and PNP polarity for versatile circuit applications.
The device supports a maximum collector base voltage of -80 V and maximum emitter base voltage of -5 V.
It operates reliably within the temperature range of 0°C to 150°C, making it robust for industrial environments.
The transistor provides a minimum current gain (hFE) of 110, enabling efficient signal amplification.
Its maximum transition frequency is 10 MHz, suited for moderate frequency applications.
The compact dimensions of 20.95 mm height, 5.2 mm length, and 4.19 mm width ensure minimal PCB footprint.
Through-hole mount type allows easy installation and soldering on electronic boards.

Product Description

The onsemi BC556ABU is a small signal PNP bipolar junction transistor (BJT) designed for reliable performance in various electronic circuits. Featuring a maximum DC collector current of 100 mA and a collector emitter voltage rating of 65 V, it is well-suited for signal amplification and switching applications within low-power circuits.

This transistor comes in a compact 3-pin TO-92 package and supports through-hole mounting, making it compatible with manual or automated PCB assembly processes. Its single transistor configuration and PNP polarity provide flexible integration into analog and digital circuits.

The device maintains operation across a temperature range of 0°C to 150°C, enabling stable functioning under industrial and commercial conditions. With a minimum DC current gain of 110 and a transition frequency of 10 MHz, it is ideal for moderate frequency amplification tasks.

Safety and durability are enhanced with maximum ratings of -80 V collector base voltage and -5 V emitter base voltage, alongside a power dissipation limit of 500 mW. Its physical dimensions - height 20.95 mm, length 5.2 mm, and width 4.19 mm - contribute to its space-efficient design.

This transistor is used widely in industrial electronics, communications equipment, signal processing, and control systems. Its high reliability and performance make it suitable for educational electronics projects and prototyping.

The TO-92 package offers excellent thermal performance and ease of mounting in various electronic assemblies. Applications include amplification of audio signals, switching low-current loads, and interfacing digital logic circuits.

These small signal transistors from the BC556 series by onsemi offer comprehensive solutions for bipolar transistor requirements, balancing size, power, and performance. Explore the extensive range of semiconductor components including Bipolar Transistors at EnvMart to equip your electronics design and manufacturing needs efficiently.
