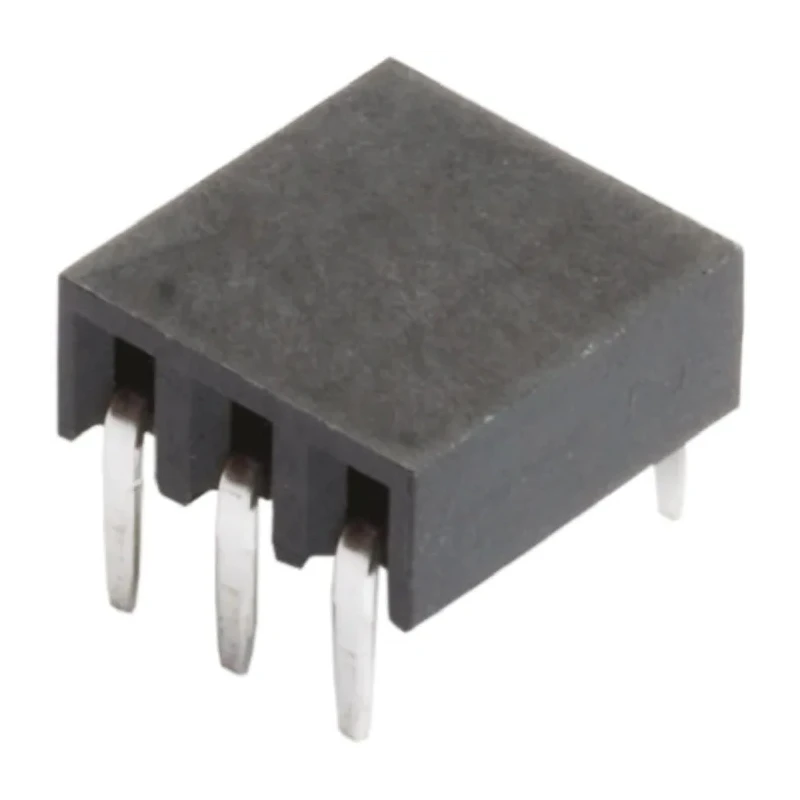

HARWIN M20 Series Right Angle Through Hole PCB Socket 3-Contact 1 Row 2.54 mm Pitch Solder M20-7890346
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 12A |
| Model | M20-7890346 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The compact design enables increased PCB density and height restriction compliance.
- The housing is made from UL94V-0 high temperature Nylon for durability.
- Dual beam bronze contacts plated with tin over nickel ensure reliable electrical connection.
- Rated for 12 A current per contact withstanding operating temperatures from -40°C to 105°C.
- Suitable for consumer electronics, industrial monitoring, communications, drives and controls, and embedded PC applications.
- The connector system is board-to-board with solder termination type for robust mounting.
- Supports up to 300 mating operations ensuring long service life.
Product Description
HARWIN M20-7890346 is a high-quality right angle through hole PCB socket designed for use in various industrial and commercial electronic applications. This single-row, 3-contact PCB connector features a 2.54 mm pitch that suits dense PCB assemblies and applications requiring low profile connectors.
The socket's housing is manufactured from UL94V-0 rated Nylon material, offering excellent high-temperature resistance ideal for reflow soldering processes. Durable dual beam bronze contacts plated with tin over nickel plating deliver reliable and long-lasting electrical connections with a current rating of up to 12 A per contact.
Operating temperature range of -40°C to 105°C makes this connector suitable for harsh environments found in industrial monitoring, drives and controls, and communications systems. The right angle orientation supports flexible PCB layout configurations, optimizing space utilization.
The M20 series sockets from HARWIN are industry standard connectors widely employed in embedded PCs, motherboards, consumer electronics, and large electronic systems demanding reliable board-to-board connectivity.
The compact design allows increased PCB density and height restrictions compliance. High-temperature thermoplastic housing ensures durability and thermal resistance. Highly reliable dual beam bronze contacts plated with tin over nickel.
Up to 300 mating cycles for extended connector lifespan. Rated 12 A current per contact for robust electrical performance. Through hole solder termination type for secure mounting to PCBs. Right angle orientation facilitates efficient board layouts.
These PCB sockets are essential for applications in industrial automation, personal computing, communications equipment, and consumer electronics where secure and stable electrical connections are critical. The connector system is designed to withstand environmental and mechanical stresses encountered in rigorous use.
Explore the range of HARWIN connectors and PCB Sockets on EnvMart for high reliability and performance in your electronic designs and manufacturing workflows.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12 A per contact, making it suitable for various applications requiring robust electrical performance.
The operating temperature range for this PCB socket is from -40°C to 105°C, allowing it to function effectively in harsh environments.
It features a solder termination type, ensuring secure mounting to PCBs for reliable connections.
This socket has 3 contacts, allowing for multiple connections in a compact design.
The housing is made from UL94V-0 rated Nylon, providing excellent high-temperature resistance and durability.
The pitch size of this model is 2.54 mm, suitable for dense PCB assemblies.
It employs a board-to-board connector system, facilitating efficient electrical connections between PCBs.
This model can support up to 300 mating cycles, ensuring a long service life for the connector.
This socket has a right angle orientation, which helps optimize PCB layout configurations.
The contacts are made from bronze and are plated with tin over nickel, ensuring reliable electrical connections.
This model complies with RoHS standards, making it suitable for environmentally conscious applications.
It is suitable for consumer electronics, industrial monitoring, communications, drives and controls, and embedded PC applications.
