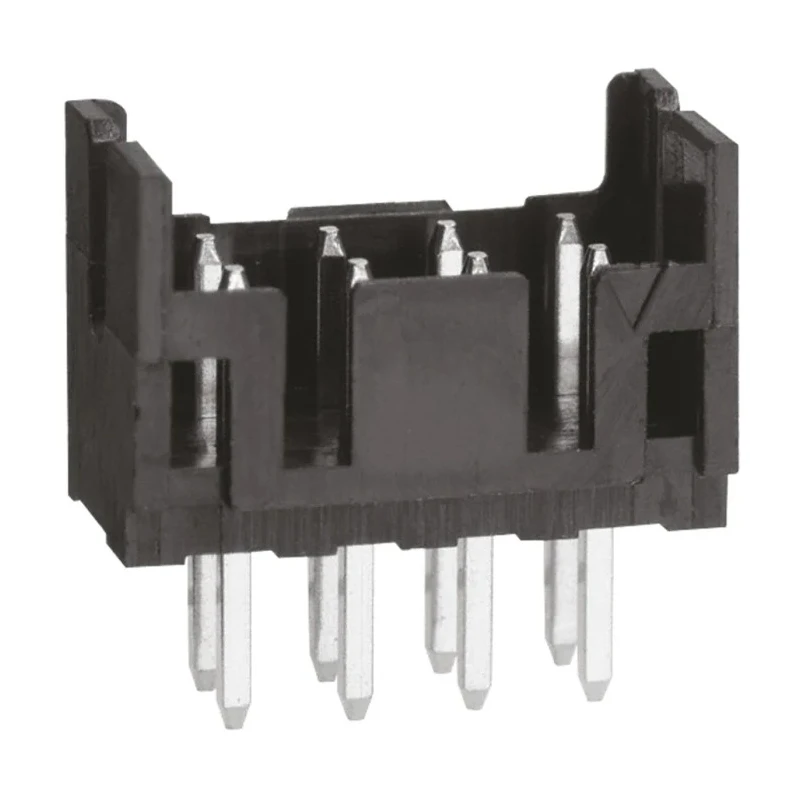

Hirose DF11 Series Straight Through Hole PCB Header, 8 Contacts, 2 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row design with a space-saving 5 mm depth.
- Shrouded polyamide housing for secure and guided connector mating.
- Male copper alloy contacts with tin plating ensure reliable conductivity.
- Rated for 2A current and 250V voltage operation.
- Suitable for board-to-board and wire-to-board applications.
- Operating temperature range from -30°C to +85°C for varied environments.
- Through hole mount type providing durable PCB retention.
- Robust locking mechanism prevents connector mismating.
Product Description
Hirose DF11 Series PCB Header DF11-8DP-2DSA(24) is a straight through hole connector designed with 8 male contacts arranged in 2 rows at 2 mm pitch. Constructed using a polyamide shrouded housing, it offers a compact and space-saving solution with a depth less than 5 mm, enabling double row contacts in the area usually occupied by a single row connector.
Its features include guide ribs to prevent incorrect insertion and twisting during mating, along with a locking mechanism ensuring secure connection. The copper alloy contacts plated with tin provide corrosion resistance and reliable signal transmission. Offering a current rating of 2 Amps and voltage rating of 250 Volts, it is suitable for both board-to-board and wire-to-board electrical connections.
The connector operates reliably within temperature extremes of -30°C to +85°C and is mounted using through hole solder termination for enhanced durability and PCB retention. This series is widely used in applications such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and various measurement devices where multiple signal interconnections are required in a compact form factor.
Compact double row design fits in single row space. Shrouded housing prevents mismating and twisting. Locking mechanism secures mating connection. Copper alloy contacts with tin plating for durability. Current rating of 2A and voltage rating of 250V.
Wide operating temperature range from -30°C to 85°C. Through hole solder mount for robust connection. Suitable for board-to-board and wire-to-board use. Ideal for various portable and embedded electronic devices. Manufactured in Malaysia under quality standards.
This Hirose DF11 Series connector is an industrial-grade component essential for compact and reliable PCB interconnections in electronics manufacturing and repair. Explore EnvMart’s range of PCB Headers and connectors for compatible housings, sockets, and accessories to complete your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2 Amps and a voltage rating of 250 Volts.
It operates reliably within a temperature range of -30°C to +85°C.
This connector uses a through hole mount type for durable PCB retention.
It features 8 male contacts arranged in 2 rows at a 2 mm pitch.
The housing is made of polyamide, and the contacts are made of copper alloy with tin plating.
Yes, it includes guide ribs to prevent incorrect insertion and twisting during mating.
It is suitable for board-to-board and wire-to-board applications, commonly used in devices like digital cameras and LCD displays.
It has a compact double row design that fits in the space typically occupied by a single row connector, with a depth of less than 5 mm.
The termination type for this model is solder, enhancing its connection reliability.
It features a robust locking mechanism that prevents connector mismating, ensuring a secure connection.
This connector is manufactured in Malaysia under quality standards.
The contact gender of this model is male.
