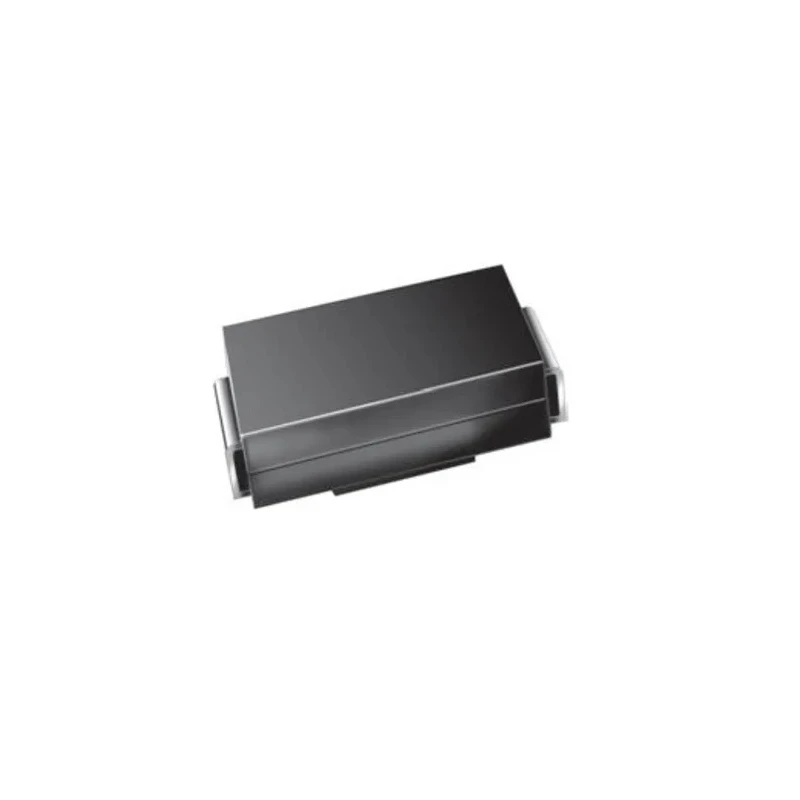

Vishay Zener Diode Single 100 V 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4764AHE3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay Zener Diode Single 100 V 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4764AHE3_A/H

Name: Vishay Zener Diode Single 100 V 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4764AHE3_A/H
Brand: Vishay
SKU: 112290



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.29mm
Length	4.5mm
Model	SML4764AHE3_A/H
Mount Type	Surface
Series	SML47xx
Maximum Operating Temperature	150°C
Package Type	SMA (DO-214AC)
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	2.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	100V
Zener Type	General Purpose
Maximum Zener Impedance	350Ω

Key Features

The diode features a 5% zener voltage tolerance.
It comes in a 2-pin SMA (DO-214AC) surface mount package.
Maximum zener impedance is 350 ohms at test current 2.5 mA.
Maximum reverse leakage current is 5 microamperes.
Operates reliably within operating temperature from -65°C to 150°C.
Compliance with IEC 61000-4-2, IEC 61760-1, RoHS, and automotive standard AEC-Q101.
High temperature soldering guaranteed at 260 °C for 10 seconds at terminals.
Low zener impedance and low regulation factor ensure stable voltage regulation.

Product Description

Vishay SML4764AHE3_A/H is a high-quality Zener diode designed for precision voltage regulation in electronic circuits. This single element diode features a nominal zener voltage of 100 V with a 5% tolerance, ensuring reliable performance in a wide range of industrial and automotive applications.

Encased in a compact 2-pin SMA (DO-214AC) surface mount package, this diode supports efficient PCB assembly and space-saving designs. It supports a maximum power dissipation of 1 watt, suitable for applications requiring stable voltage references at moderate power levels.

The device operates reliably across a broad temperature range from -65°C to 150°C, making it ideal for harsh environments including automotive electronics and industrial equipment. The diode conforms to rigorous quality and safety standards such as IEC 61000-4-2 for electrostatic discharge protection, IEC 61760-1 for semiconductor device reliability, RoHS for hazardous substance compliance, and AEC-Q101 for automotive grade performance.

The maximum zener impedance at the test current of 2.5 mA is 350 ohms, ensuring a low regulation factor and stable voltage regulation under varying load conditions. The maximum reverse leakage current is limited to 5 microamperes, minimizing leakage losses in sensitive circuits. High temperature soldering capability at 260°C for 10 seconds at terminals guarantees durability during manufacturing.

Single element Zener diode with 100 V nominal zener voltage. 1 W power dissipation in a compact SMA surface mount package. ±5% zener voltage tolerance for consistent voltage regulation. Wide operating temperature range from -65°C to 150°C.

Automotive and industrial quality standards compliance. Low zener impedance and leakage current for efficient performance. High temperature soldering suitability.

This Zener diode is perfectly suited for industrial, automotive, and commercial electronic systems requiring robust voltage regulation. It is widely used in power supplies, voltage reference circuits, and protection applications.

Explore more Vishay semiconductor components and find compatible parts in the EnvMart electronics catalog to complete your project design requirements.

Explore more products in our Zener Diodes category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal zener voltage of this diode is 100 V with a tolerance of ±5%.

This model has a maximum power dissipation of 1 watt.

It operates reliably within a temperature range from -65°C to 150°C.

The diode comes in a 2-pin SMA (DO-214AC) surface mount package.

The maximum zener impedance at a test current of 2.5 mA is 350 ohms.

This model complies with the automotive standard AEC-Q101.

The diode has a height of 2.29 mm and a length of 4.5 mm.

It is a single element zener diode configuration.

It complies with IEC 61000-4-2 for electrostatic discharge protection, IEC 61760-1 for semiconductor reliability, and RoHS for hazardous substance compliance.
