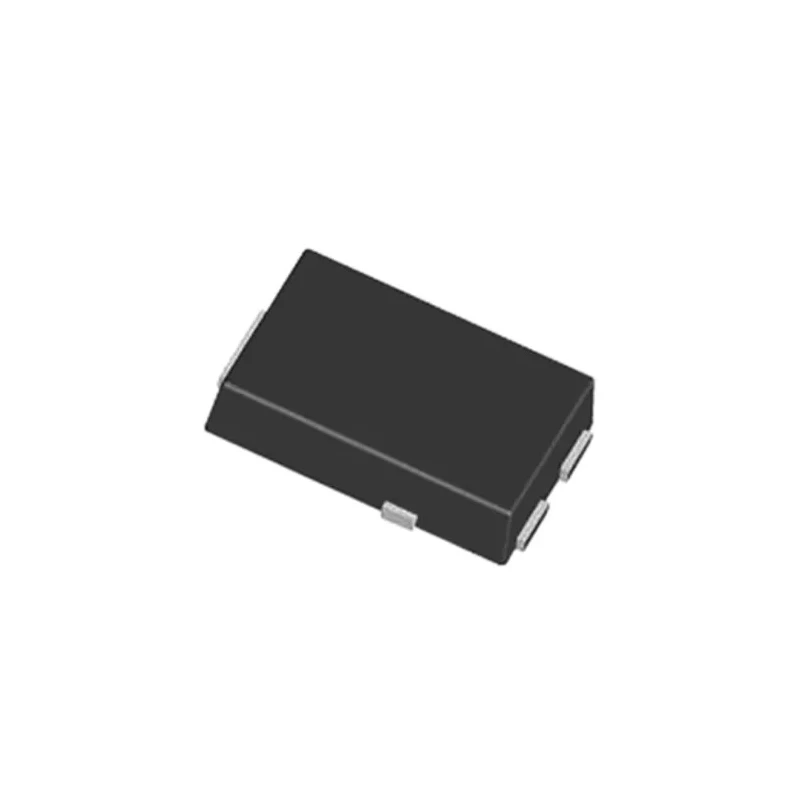

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount TO-277 3-Pin SMPC36ANHM3/H

Vishay SMPC36ANHM3/H is a high-performance 1-element uni-directional transient voltage suppression (TVS) diode designed for effective protection of sensitive electronic components against transient overvoltage events such as electrostatic discharge (ESD) and lightning-induced surges. Packaged in a compact, low-profile TO-277 surface mount case measuring 6.15 mm in length, 4.75 mm in width, and 1.2 mm in height, the diode supports automated PCB manufacturing processes and offers robust mechanical resilience.

This TVS diode features a peak pulse power capability of 1.5 kW using a 10/1000 µs surge waveform, making it suitable for industrial, automotive, and telecommunications applications where high-energy transient events are prevalent. It has a minimum breakdown voltage (Vbr) of 40 V, a maximum reverse stand-off voltage (Vwm) of 36 V, and a clamping voltage (Vc) of 58.1 V to protect circuits from damaging voltage spikes effectively.

Rated to operate over a temperature range from -55°C up to 150°C, and qualified to the automotive standard AEC-Q101, this diode ensures reliability in harsh environmental conditions. It possesses a low maximum reverse leakage current of just 1 μA and features three pins for secure electrical connections during PCB assembly.

The Vishay SMPC36ANHM3/H TVS diode is optimized for surface mount applications requiring fast transient suppression with minimal incremental surge resistance and very fast response times. This product is ideal for protection of power lines, data lines, and automotive electronics, providing longevity and safeguarding sensitive semiconductor devices from sudden voltage surges.

Features a single diode element with uni-directional operation for efficient surge suppression. Supports peak pulse power dissipation of 1.5 kW at 10/1000 µs waveform. Has a minimum breakdown voltage of 40 V and maximum reverse stand-off voltage of 36 V.

Constructed in a low-profile TO-277 package with a typical height of 1.2 mm for automated PCB assembly. Operates reliably across a temperature range of -55°C to 150°C and meets automotive AEC-Q101 standards. Equipped with 3 pins and low maximum reverse leakage current of 1 μA.

Clamping voltage is 58.1 V, ensuring protection against voltage spikes. Provides excellent ESD protection with maximum peak pulse current of 25.8 A. Ideal for power, telecommunications, automotive and industrial electronics transient voltage suppression.
