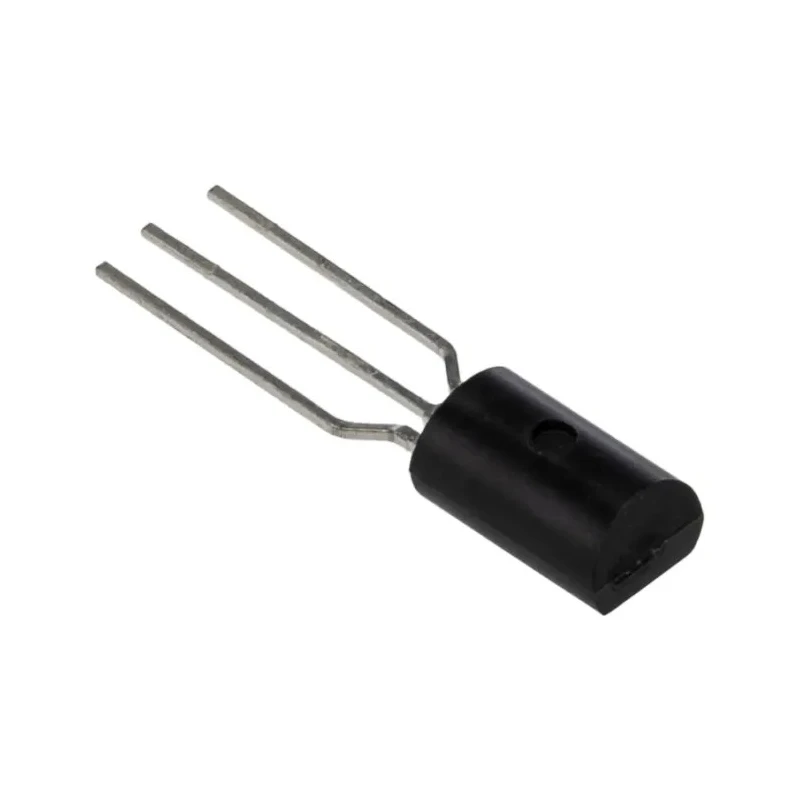

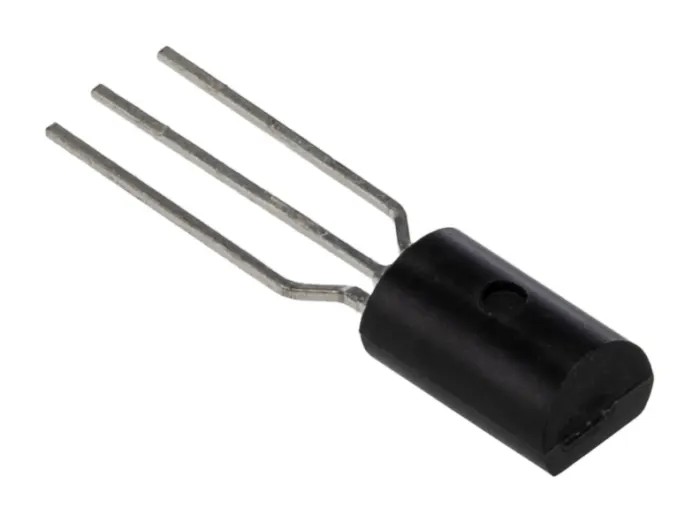

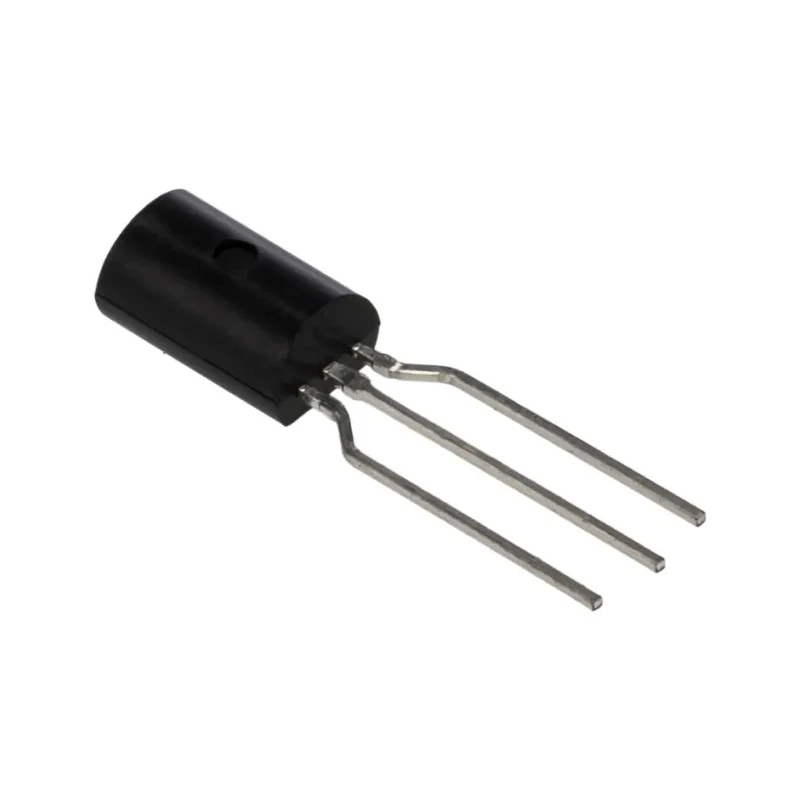

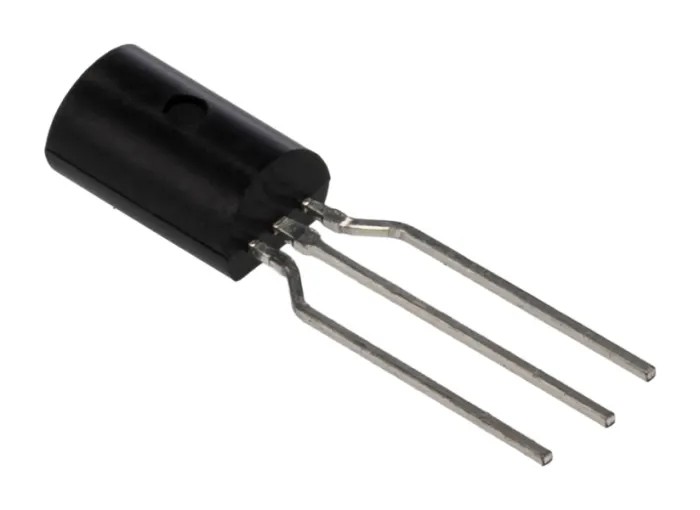

onsemi Negative Voltage Regulator MC79L15ACPRAG 3-Pin TO-92 Package -35V Input 6mA Quiescent Current MC79L15ACPRAG

onsemi MC79L15ACPRAG is a negative linear voltage regulator from the MC79L00 series provided in a TO-92 through-hole 3-pin package. This device features fixed output voltage regulation with values such as 5 V, 12 V, or 15 V in the series, with this model specifically providing -15 V regulation.

The regulator can operate from input voltages ranging from -16.7 V up to -35 V, making it suitable for a variety of power supply and industrial control applications. The quiescent current is 6 mA, allowing efficient energy usage in low current systems.

Robustness is enhanced by internal short circuit current limiting and thermal overload protection, ensuring long-term reliability under diverse conditions including a maximum operating temperature of 125°C. The TO-92 package facilitates straightforward mounting on printed circuit boards with through-hole technology, making it convenient for prototyping and industrial batch production.

This regulator ideal for use in negative voltage power rails on electronic cards, laboratory instrumentation, automation controllers, and embedded systems that require a stable fixed negative voltage rail. It is compliant with Pb-free environmental standards and does not require any external devices for operation, simplifying design complexity.

The device has a quiescent current of 6 mA ensuring low power consumption. It operates with an input voltage range from -16.7 V to a maximum of -35 V. Designed for a maximum operating temperature of 125°C, suitable for robust industrial applications.

Integrated short circuit current limiting and thermal overload protection enhance device reliability. The regulator is ideal for negative voltage regulation applications requiring up to 100 mA output current. The compact TO-92 package allows easy integration on PCB through hole designs.

The product is a Pb-free component, conforming to environmental standards. Widely used in power management IC applications where precise negative voltage levels are required.

This product is a key component for electronics manufacturers, repair professionals, and engineers engaged in the design of efficient and reliable power supply circuits and embedded system projects. Explore additional Voltage Regulators and power management ICs from onsemi and expand your development possibilities at EnvMart.
