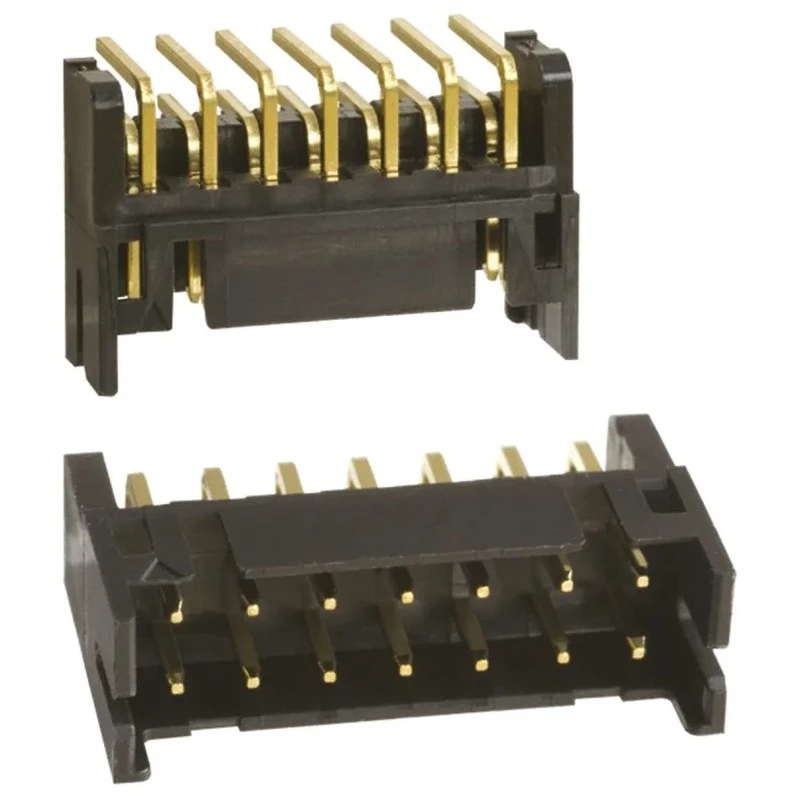

Hirose DF11 Series Right Angle Through Hole PCB Header, 14 Contact(s), 2 mm Pitch, 2 Row, Shrouded DF11

Hirose DF11 Series Right Angle Through Hole PCB Header DF11 is a high-quality electronic component designed for compact and reliable PCB connections. This connector features 14 gold-plated copper alloy contacts arranged in two rows with a 2 mm pitch, housed in a robust and shrouded polyamide casing that protects the contacts and provides secure mating.

The design maximizes space efficiency by allowing a double row of contacts in the same space as a single row connector, with an overall depth less than 5 mm. Guide ribs help to prevent incorrect insertion and twisting, while the locking mechanism firmly secures the connection to prevent accidental disconnection during use.

This PCB header is suitable for both board-to-board and wire-to-board applications and is commonly used in electronics assembly where high-density signal connections are required. It supports up to 2A current and 250V voltage, functioning within an operating temperature range of -30°C to 85°C.

The polyamide housing provides excellent mechanical and thermal stability, and the through hole mount type ensures strong solder joint reliability. This connector is ideal for use in portable devices, digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and other precision equipment that demands compact, durable, and secure electronic interfaces.

Compact double row design with less than 5 mm depth for space efficiency. Robust four wall shrouded housing for protection and secure mating. Gold-plated copper alloy contacts ensuring reliable conductivity. Guide ribs and locking mechanism to prevent mismating and ensure secure connection.

Suitable for board-to-board and wire-to-board connector systems. Rated for 2A current and up to 250V voltage. Operating temperature range from -30°C to 85°C. Polyamide housing material providing durability and heat resistance.

Termination type is solder suitable for through hole PCB mounting. Manufactured in Malaysia.

This product is categorized under PCB Headers by Hirose, a respected brand in electronic connectors, ensuring quality and precision for industrial and commercial electronics manufacturing.
