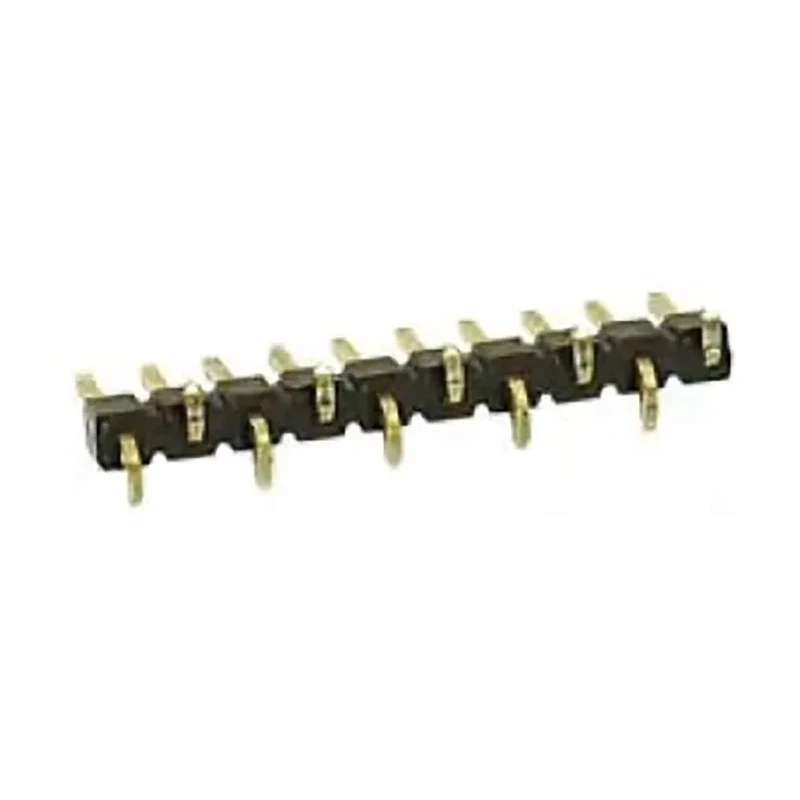

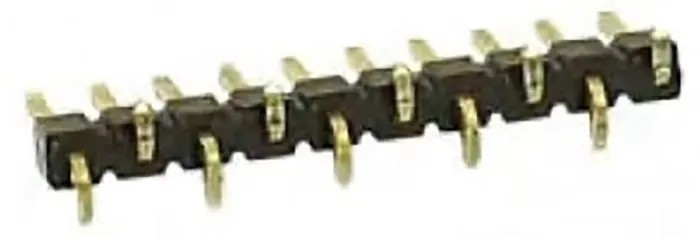

Amphenol Communications Solutions EconoStik Series Vertical Surface Pin Header, 10 Contacts, 2.54 mm 10129380-910002ALF

Amphenol Communications Solutions 10129380-910002ALF Vertical Surface Pin Header is a high-quality connector designed for board-to-board applications in industrial, test equipment, metering, POS, set-top box, surveillance, and vending machine systems.

Featuring 10 male contacts arranged in a single row with a 2.54 mm pitch, it offers efficient signal and power transmission with a current rating of 3A and voltage rating up to 1500V.

The connector housing is made from thermoplastic material capable of withstanding high temperatures, while the contacts are made from brass and plated with 1μin gold to ensure durability and corrosion resistance. This enables reliable performance over extensive mating cycles, tested up to 50 cycles.

The termination type is surface mount, allowing for robust and easy PCB assembly. Operating temperature range from -55°C to +105°C makes it suitable for harsh environments.

The design includes an 8.08 mm mating pin length for secure mechanical and electrical connection. The connector is unshrouded and designed for vertical orientation, facilitating board-to-board interfacing.

The pin header contains 10 male contacts with 2.54 mm pitch and 1 row configuration. Housing material is thermoplastic, enabling high temperature endurance. Gold-plated brass contacts ensure low resistance and corrosion resistance.

Surface mount termination simplifies PCB assembly processes. Rated for 3A current and 1500V voltage across a wide temperature range. Tested to withstand 50 mating cycles for durability. Suitable for use in industrial control, test equipment, metering, POS, set-top boxes, surveillance, and vending machines.

Complies with RoHS standards and is lead-free, thus environmentally friendly. Explore the comprehensive range of PCB Headers and connectors available to enhance your electronic system designs and applications on EnvMart.
