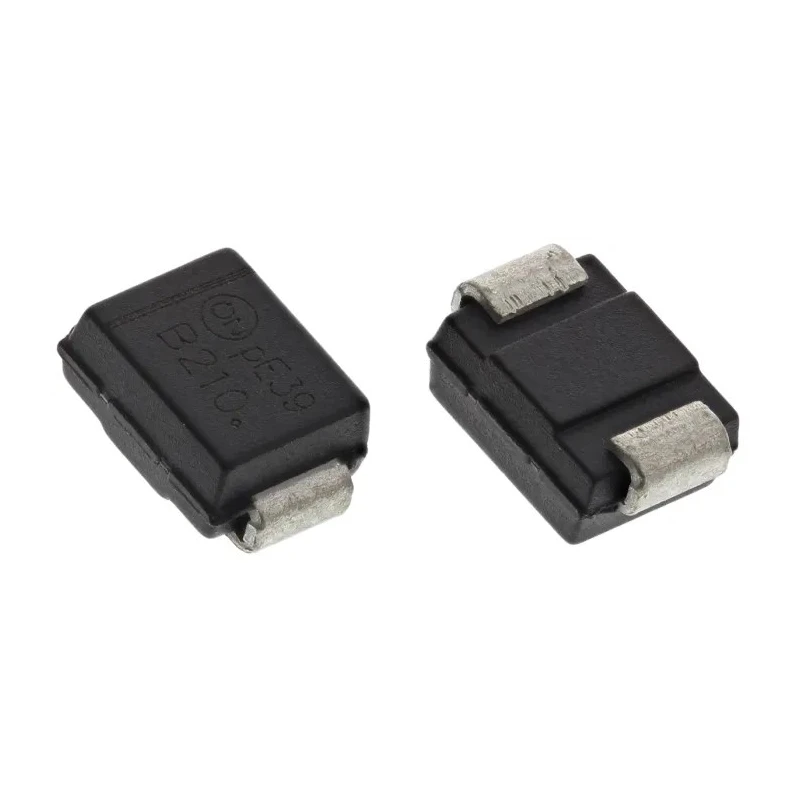

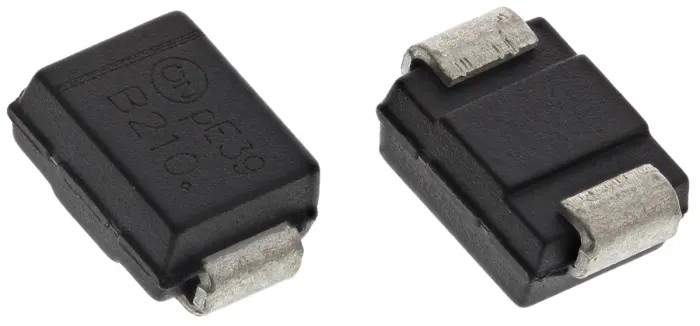

onsemi 100 V 2 A Surface Mount Schottky Diode DO-214AA MBRS2H100T3G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 100 V 2 A Surface Mount Schottky Diode DO-214AA MBRS2H100T3G

Name: onsemi 100 V 2 A Surface Mount Schottky Diode DO-214AA MBRS2H100T3G
Brand: onsemi
SKU: 131837
Price: 0.37 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.27mm
Length	4.6mm
Model	MBRS2H100T3G
Width	3.95mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1.5mA
Peak Non-Repetitive Forward Surge Current Ifsm	130A
Maximum Forward Voltage Vf	650mV

Key Features

Offers low forward voltage drop enabling improved efficiency.
Designed for high frequency and low voltage rectification.
Compact DO-214AA package with 2 pins for surface mounting.
Peak repetitive reverse voltage up to 100 volts.
Maximum forward current rating of 2 amperes.
Operates reliably between -65°C to 175°C temperature range.
Offers a peak non-repetitive forward surge current of 130 amperes.
Automotive qualified with AEC-Q101 standard.

Product Description

onsemi MBRS2H100T3G Schottky Diode is a high-performance surface mount diode packaged in a compact DO-214AA casing. It features a maximum continuous forward current of 2 A and a peak repetitive reverse voltage of 100 V, suitable for a variety of industrial and automotive electronics applications.

This diode is engineered using the Schottky barrier principle, allowing for minimal forward voltage drop of approximately 650 mV, thereby enhancing efficiency in power conversion and rectification circuits. It supports fast switching and low leakage current characteristics, which are crucial in high frequency scenarios.

The device can operate effectively across a wide temperature range from -65°C to 175°C, ensuring reliability in harsh environments. Its peak non-repetitive forward surge current rating of 130 A allows it to withstand transient current spikes without damage.

The lightweight epoxy molded case minimizing thermal resistance provides excellent stress protection and supports automated board assembly techniques, making it ideal for compact and weight-sensitive electronic designs.

Automotive applications are supported with compliance to the AEC-Q101 quality standard, ensuring the diode meets stringent reliability metrics for vehicle electronics. Offers low forward voltage drop enabling improved efficiency.

Designed for high frequency and low voltage rectification. Compact DO-214AA package with 2 pins for surface mounting. Peak repetitive reverse voltage up to 100 volts. Maximum forward current rating of 2 amperes. Operates reliably between -65°C to 175°C temperature range.

Offers a peak non-repetitive forward surge current of 130 amperes. Automotive qualified with AEC-Q101 standard. Lightweight epoxy molded plastic case with dimensions 4.6mm x 3.95mm x 2.27mm. Ideal for freewheeling, polarity protection, and surface mount applications where space saving is essential.

This diode is suitable for multiple industrial sectors including electronics manufacturing, automotive electronics, power supply design, and telecommunications equipment. Its durable construction and compliance ensure robust performance in demanding operational conditions.
