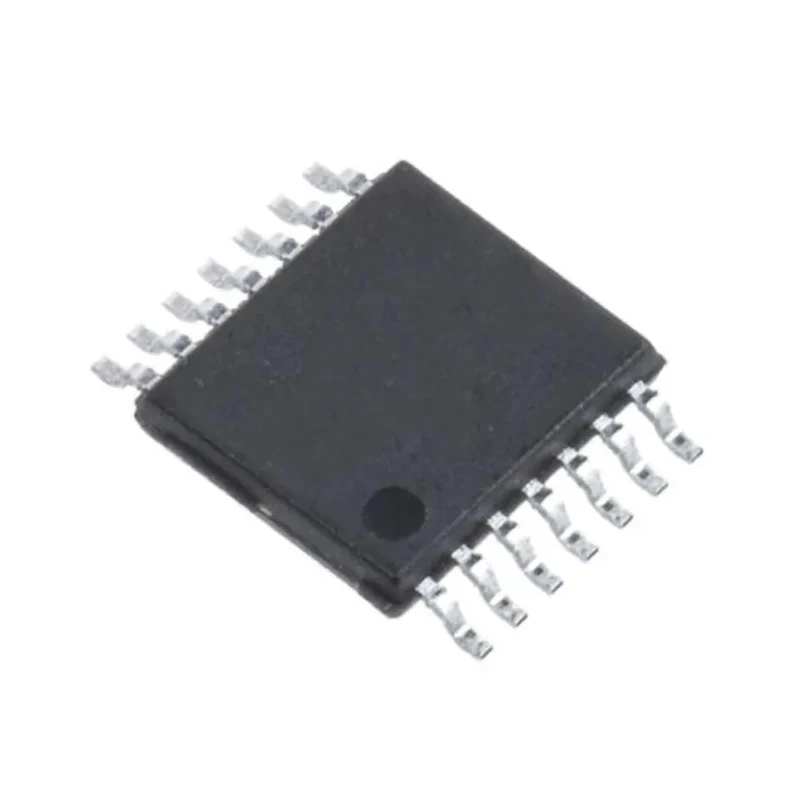

onsemi Voltage Level Shifter Buffer 1-Buffer Uni-Directional 14-Pin TSSOP MC74HC125ADTR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Voltage Level Shifter Buffer 1-Buffer Uni-Directional 14-Pin TSSOP MC74HC125ADTR2G

Name: onsemi Voltage Level Shifter Buffer 1-Buffer Uni-Directional 14-Pin TSSOP MC74HC125ADTR2G
Brand: onsemi
SKU: 157621



Category Logic ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Operating Voltage Range	2.0 to 6.0 V
Length	5.1mm
Model	MC74HC125ADTR2G
Mount Type	Surface
Output type	3 State
Series	MC74HC125
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements per Chip	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Buffer
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	135ns
Direction Type	Uni-Directional
Maximum Low Level Output Current	7.8mA
Translation	Buffer
Low Input Current	1.0 mA
Output Drive Capability	15 LSTTL Loads
Chip Complexity	72 FETs or 18 Equivalent Gates

Key Features

Uni-directional direction type suitable for precise voltage level shifting.
Operates over a voltage range of 2.0 to 6.0 volts ensuring versatile power compatibility.
Features a maximum propagation delay time of 135 nanoseconds for fast switching performance.
Surface mount package type TSSOP with 14 pins for compact PCB design integration.
Provides 3-state output type enabling efficient bus-oriented system interfacing.
Low input current of 1.0 milliampere reduces power consumption in circuits.
Wide operating temperature range from -55 to 125 degrees Celsius for industrial environments.
Output drive capability of 15 LSTTL loads, compatible with TTL and CMOS logic levels.

Product Description

onsemi MC74HC125ADTR2G is a high-performance silicon-gate CMOS voltage level shifter buffer designed for industrial and automotive applications requiring reliable voltage translation and signal buffering. This uni-directional buffer IC provides a single buffer element within a compact 14-pin TSSOP package suitable for surface mount PCB assembly.

Operating from 2.0 to 6.0 volts supply range and supporting wide temperature ratings from -55°C up to 125°C, the MC74HC125ADTR2G delivers robust performance under demanding environmental conditions. The buffer features low input current of 1 mA, 3-state output enabling easy bus control, and an output drive capability sufficient to directly interface CMOS, NMOS, and TTL logic families.

Its automotive standard AEC-Q100 rating ensures suitability in automotive electronics.

The compact TSSOP package with 14 pins and 1.05 mm height supports modern PCB design requirements focusing on size and performance. The chip complexity is equivalent to 72 FETs or 18 gates, enabling reliable logic buffer operation.

Uni-directional level shifting buffer with one element per chip. Wide operating voltage range from 2 V to 6 V. Low power consumption with 1.0 mA input current. Automotive standard compliant (AEC-Q100) for robust applications.

3-state output for bus interface flexibility. Compact 14-pin TSSOP package for space-saving designs. High output drive capability to support 15 LSTTL loads. Temperature range -55°C to 125°C suitable for harsh environments.

Fast propagation delay time of 135 ns for high-speed switching. Compatible with CMOS, NMOS, and TTL logic systems.

This voltage level shifter buffer is commonly used in semiconductor circuits requiring voltage compatibility between different logic families, facilitating integration in industrial, automotive, and consumer electronics assembly lines.

Explore the range of Logic IC components and industrial semiconductor devices at EnvMart for comprehensive sourcing solutions.
