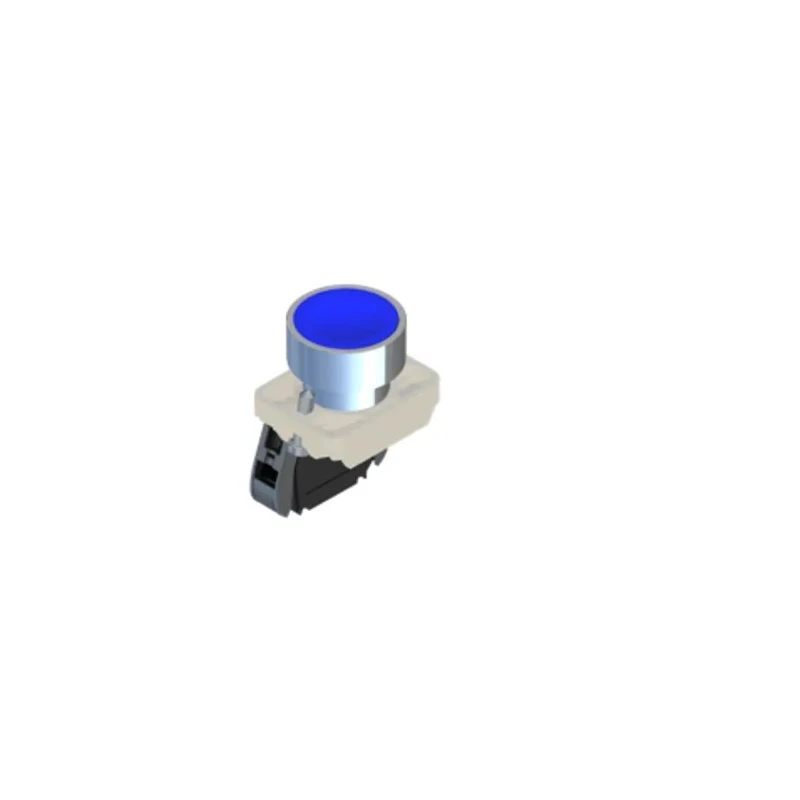

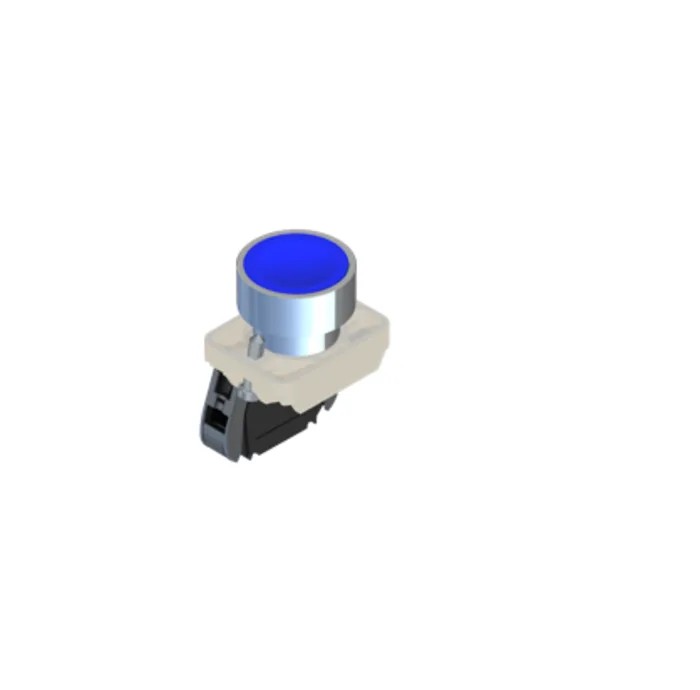

RS PRO Push Button Complete Unit Panel 23 mm Cutout Blue SPST IP65 24V 239-8181

Name: RS PRO Push Button Complete Unit Panel 23 mm Cutout Blue SPST IP65 24V 239-8181
Brand: RS PRO
SKU: 176908
Price: 16.32 USD
Availability: InStock



Category Push Button Complete Unit Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Colour	Black, Red, Blue, Green, Yellow available
Body Material	Chrome Plated Zamak
Outer Diameter	30 mm
Model	239-8181
IP Rating	IP65
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	UL, CE, UKCA, EN
Cutout Diameter	23mm
Push Button Actuation	Momentary
Push Button Colour	Blue
Push Button Shape	Flush
Push Button Style	Round
Illumination Voltage	24V
Connecting Terminals	Screw with captive cable clamp

Key Features

Features a blue, flush-style push button for intuitive panel operation.
Constructed with chrome plated zamak body ensuring durability and corrosion resistance.
Supports SPST contact configuration with momentary actuation for reliable control.
Designed for panel mounting with a 23 mm cutout diameter and an outer diameter of 30 mm.
Equipped with screw terminals with captive cable clamps for secure wiring connections.
IP65 rated for protection against dust and water ingress in harsh environments.
Operates in temperature range from -25°C to 70°C for versatile usage.
Meets international standards including UL, CE, UKCA, and EN approvals.

Product Description

RS PRO 239-8181 Push Button Complete Unit Panel is a robust and reliable panel-mounted switch designed for industrial, automation, and control system applications. This unit features a momentary-actuated flush round push button with a 23 mm cutout diameter, finished with a durable chrome plated zamak body to ensure longevity in demanding environments.

Designed with a blue push button head, this switch utilizes a SPST contact configuration suited for start/stop operations and other control functions. The mounting mechanism securely fits panels up to 6 mm thick, eliminating unwanted movement in the cutout. The unit supports connections through screw terminals equipped with captive cable clamps, promoting secure and easy installation.

The device is rated IP65, providing excellent resistance to dust and water ingress, making it suitable for use in industrial and outdoor conditions. It operates reliably within a broad temperature range from -25°C to 70°C. The switch meets stringent international certifications including UL, CE, UKCA, and EN, ensuring compliance with safety and performance standards.

Though this particular model is non-illuminated, the series offers variants with illuminated versions available. The push button offers tactile feedback and durability in various industrial settings, including automotive control systems, lighting controls, building management, and medical equipment.

Blue flush push button with momentary actuation. Chrome plated zamak body construction. SPST contact type for effective control switching. Screw terminals with captive clamps for secure wiring. Panel mount via 23 mm cutout, outer diameter 30 mm.

Protected to IP65 standard against dust and water. Operating range from -25°C to 70°C for versatile environments. Certified to UL, CE, UKCA, and EN standards. Manufactured in Italy ensuring premium build quality.

This RS PRO Push Button Complete Unit is ideal for industrial automation, control panels, manufacturing machinery, and other electrical systems requiring reliable and quality switching solutions. It balances compact design with rugged durability and complies with top international standards for safety and function.

Explore more products in the Push Button Complete Unit category for a wide range of options to suit your control and automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cutout diameter for this push button complete unit is 23 mm.

It operates reliably within a temperature range from -25°C to 70°C.

This switch utilizes a SPST (Single Pole Single Throw) contact configuration.

The unit is rated IP65, providing protection against dust and water ingress.

The body is constructed from chrome plated zamak, ensuring durability and corrosion resistance.

It is designed for panel mounting and fits panels up to 6 mm thick.

It features screw terminals with captive cable clamps for secure wiring connections.

The push button is available in blue, with other colors such as black, red, green, and yellow also offered in the series.

It meets international standards including UL, CE, UKCA, and EN approvals.

Yes, the series offers variants with illuminated versions available.

The outer diameter of this push button is 30 mm.

It is suitable for industrial automation, control panels, manufacturing machinery, and other electrical systems requiring reliable switching solutions.
