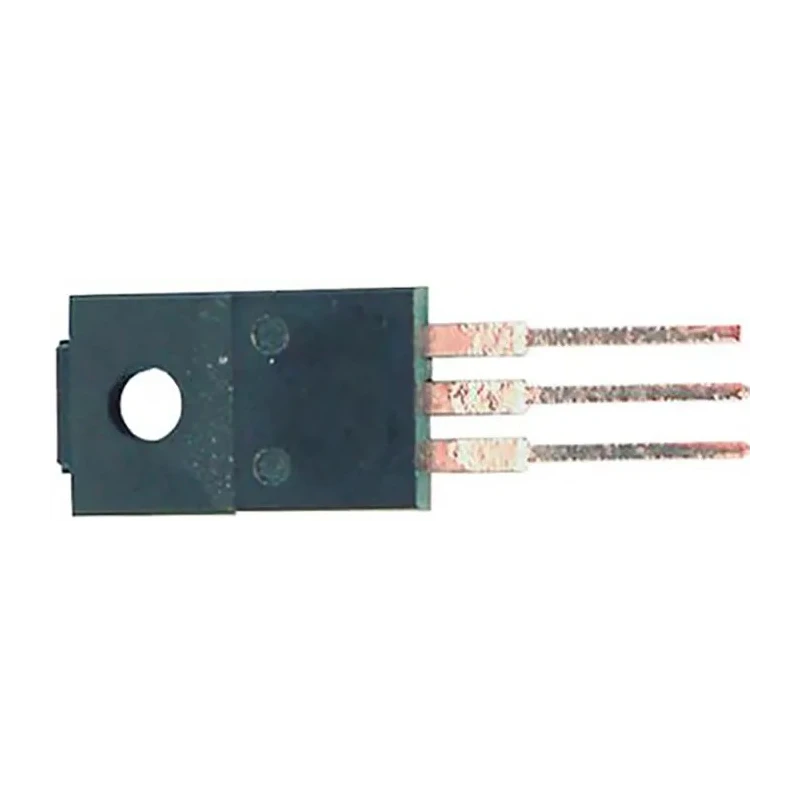

onsemi Schottky Diode 100 V 30 A Through Hole Diode Common Cathode 3-Pin TO-220FP MBRF30H100CTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 16.12mm |
| Length | 10.63mm |
| Model | MBRF30H100CTG |
| Width | 4.9mm |
| Mount Type | Through Hole |
| Series | MBR30H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220FP |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | UL 94 V-0 |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 930mV |
Key Features
- Designed for low voltage, high frequency rectification applications.
- Employs Schottky barrier technology for low forward voltage drop and low reverse current.
- Features common cathode diode configuration suitable for surface mount applications.
- Maximum continuous forward current is 30 A with peak forward surge current of 250 A.
- Operating temperature range from -65°C to 175°C ensures reliable performance.
- Epoxy moulded case offers stress protection and lightweight packaging.
- 3-pin TO-220FP package with dimensions of 16.12 mm height, 10.63 mm length, and 4.9 mm width.
- Maximum forward voltage drop is 930 mV and peak reverse current is 6 mA.
Product Description
onsemi MBRF30H100CTG is a high-quality Schottky rectifier diode designed for efficient low voltage and high frequency rectification needs. It features a common cathode diode configuration packaged in a 3-pin TO-220FP housing optimized for through-hole mounting. The diode supports a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 100 V, making it suitable for industrial, electronics manufacturing, and power electronics applications.
This device utilizes the Schottky barrier principle with barrier metal technology to achieve optimal forward voltage drop versus reverse current trade-off. Its low forward voltage drop of 930 mV ensures minimal power loss during conduction, and the peak surge current capacity of 250 A provides robustness under transient conditions. The epoxy moulded case offers mechanical stress protection and lightweight packaging weighing 11.7 mg, compliant with UL 94 V-0 for flame retardancy.
The diode's operating temperature range from -65°C to 175°C allows reliable performance in various industrial environments including power supplies, freewheeling diodes, and polarity protection use cases. The 3-pin configuration and through-hole mount type facilitate easy assembly on printed circuit boards, while the Pb-free construction supports environmental compliance and automated production techniques.
Low forward voltage drop for energy efficient rectification. High surge current handling for dependable transient tolerance. Wide operating temperature range for harsh industrial conditions. Epoxy moulded flame retardant case for safety.
Compact TO-220FP footprint for space saving designs.
This onsemi diode is ideal for industries such as power electronics, automotive, manufacturing, and laboratory applications requiring reliable Schottky rectifiers. The product embodies durability, performance, and ease of integration.
Explore more electronic components and semiconductor devices in the Schottky Diodes & Rectifiers category on EnvMart for your technical projects and supply chain needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 30 A.
The peak reverse repetitive voltage for this model is 100 V.
The operating temperature range for this diode is from -65°C to 175°C.
The maximum forward voltage drop of this diode is 930 mV.
The peak non-repetitive forward surge current rating is 250 A.
This diode is packaged in a TO-220FP type with a through-hole mounting configuration.
The peak reverse current for this model is 6 mA.
The dimensions of the TO-220FP package are 16.12 mm in height, 10.63 mm in length, and 4.9 mm in width.
This model uses a common cathode diode configuration.
This diode complies with UL 94 V-0 standards for flame retardancy.
This Schottky diode is suitable for industries such as power electronics, automotive, manufacturing, and laboratory applications.
The weight of this diode is 11.7 mg.
