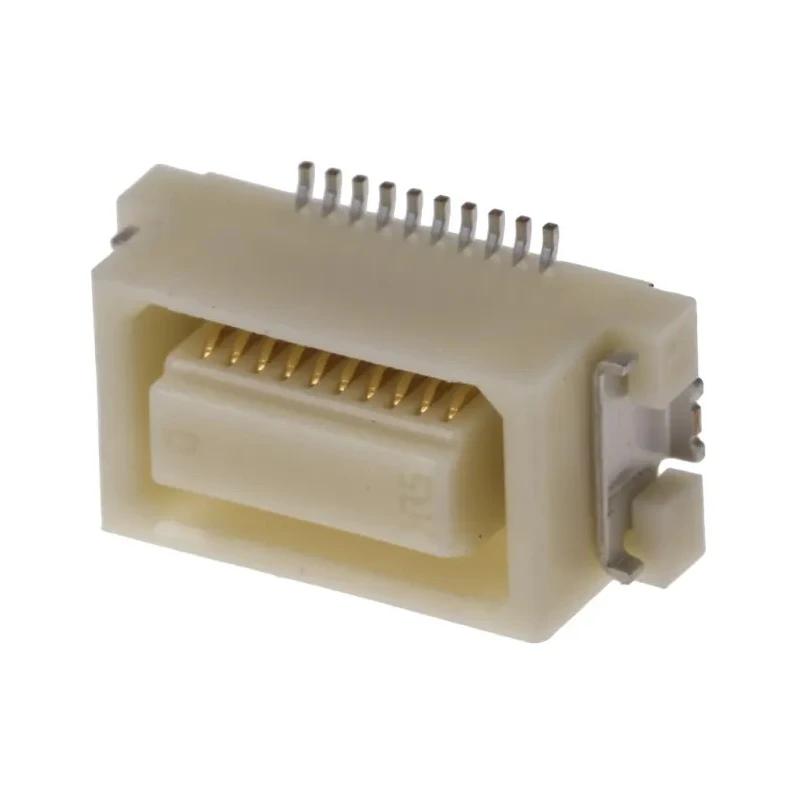

Hirose DF17 Series Straight Surface PCB Socket 20-Contact 2 Row 0.5 mm Pitch Solder Termination DF17
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF17 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF17 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 4mm |
| Row Pitch | 3.9mm |
Key Features
- Compact design with a 0.5 mm pitch suitable for high-density PCB layouts.
- Features 20 female contacts arranged in 2 rows for reliable connectivity.
- Solder termination type ensures secure attachment to the PCB.
- Manufactured with polyamide housing and gold plated copper contacts for durability.
- Shock-proof structure prevents connector damage from mechanical impact.
- Mounting bosses enhance stability on the PCB during operation.
- Designed for use between board-to-board stacking heights of 4 mm.
- Operating voltage rated at 50 V with maximum current of 300 mA.
Product Description
Hirose DF17 Series Straight Surface PCB Socket DF17 model is a 20-contact, 2-row female socket connector featuring a compact 0.5 mm pitch solder termination, designed for board-to-board connectivity applications. This surface mount type connector offers a stacking height of 4 mm and operates reliably within -35°C to 85°C temperature ranges, making it suitable for industrial electronics and portable telecommunications equipment.
The connector housing is made of durable polyamide material, while copper contacts are plated with gold to ensure excellent electrical continuity and corrosion resistance. The socket features a robust shock-proof structure to withstand mechanical impacts, protecting the connector integrity in rugged environments. Mounting bosses at the base provide reinforced stability on the PCB, preventing damage from mechanical stresses during handling and operation.
The DF17 series connectors are ideal for use in devices requiring compact and reliable board stacking, including mobile phones, LCD modules, and other portable electronics. The scoop-proof bellows type contacts and box-style housing design increase protection and ensure smooth mating connections. Designed and manufactured in Japan, this connector meets demanding quality expectations and is suitable for industrial, manufacturing, telecommunications, and electronics assembly applications.
Compact 0.5 mm pitch allows for space-saving PCB layouts. Shock-proof structure reduces risk of connector failure from drops and impacts. Gold plated copper contacts ensure high conductivity and corrosion resistance. Polyamide housing provides mechanical strength with resistance to wear and heat.
Surface mount termination provides secure solder joints and PCB stability. Mounting bosses add extra mechanical stability on printed circuit boards. Operating voltage 50 V and current 300 mA for low power electronics. Operating temperature range from -35°C to 85°C suits a variety of environments.
Reliable mating with scoop-proof contact design for long-term electrical performance. Ideal for compact electronics, telecommunications, and LCD equipment.
Explore EnvMart’s Electronics & Electricals category for more Hirose PCB connectors and related electronic components designed for high performance and durability in industrial and commercial applications.
