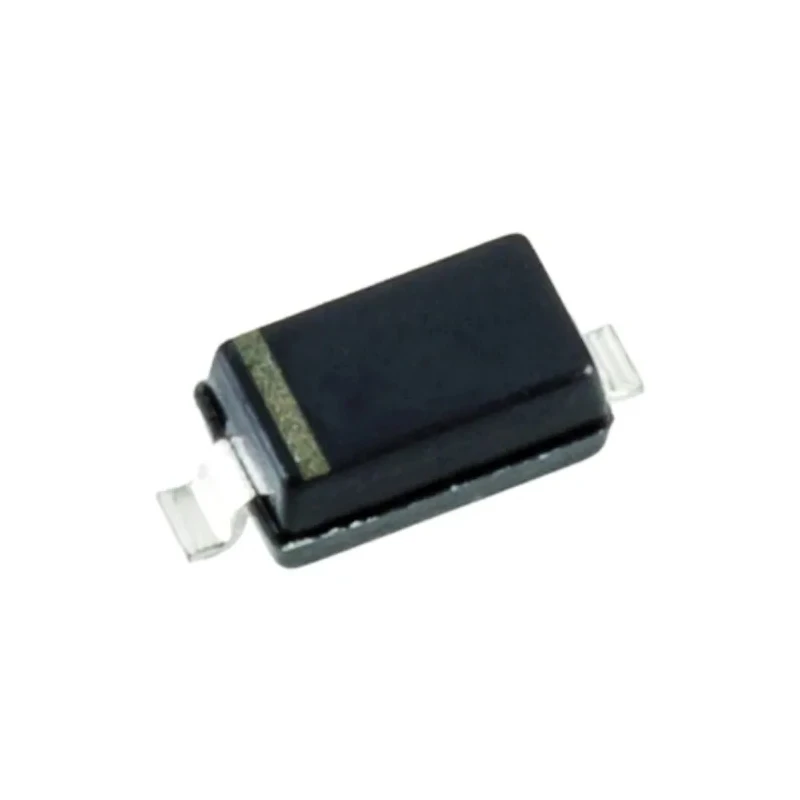

onsemi Schottky Diode Surface Mount 30 V 500 mA 2-Pin SOD-123 MBR0530T1G

onsemi MBR0530T1G Schottky Diode is a surface mount 2-pin diode housed in a compact SOD-123 package, engineered for power electronic applications requiring efficient low-voltage rectification and high-speed switching.

Utilizing Schottky barrier metal technology, this diode achieves an optimal trade-off between forward voltage drop and reverse leakage current, which improves the efficiency of power supplies, switching regulators, and polarity protection circuits.

With a maximum continuous forward current rating of 500 mA and a peak reverse repetitive voltage rating of 30 V, the MBR0530T1G is well suited for applications demanding robust electrical performance under varying loads and temperatures.

The diode's operating temperature range from -65°C to +125°C makes it reliable for use in industrial, consumer electronics, and automotive environments not requiring automotive certification. Its tiny SOD-123 package (length 2.69 mm, width 1.6 mm, height 1.12 mm) allows for high-density PCB layouts.

Additional features include a peak non-repetitive forward surge current rating of 5.5 A to withstand transient power surges, an extremely low peak reverse current of 130 μA to minimize energy loss, and an epoxy moulded package that provides protection from environmental stress.

Employs Schottky barrier technology for low forward voltage drop and minimal reverse current. Compact SOD-123 surface mount package suitable for automated assembly. Maximum continuous forward current of 500 mA supports reliable operation in power circuits.

Peak reverse repetitive voltage rating of 30 V ensures protection in various applications. Operating temperature range from -65°C to 125°C accommodates harsh environments. Extremely low peak reverse current at 130 μA reduces leakage losses significantly.

Peak non-repetitive forward surge current up to 5.5 A protects against transient spikes. Lightweight epoxy moulded package weighing approximately 11.7 mg optimizes compact electronic designs. Ideal for freewheeling, polarity protection, and high-frequency rectification in surface mount circuits.

This product is ideal for electronics manufacturing, including industrial power devices, consumer electronics, telecommunications, and other applications requiring efficient, compact Schottky diodes.
