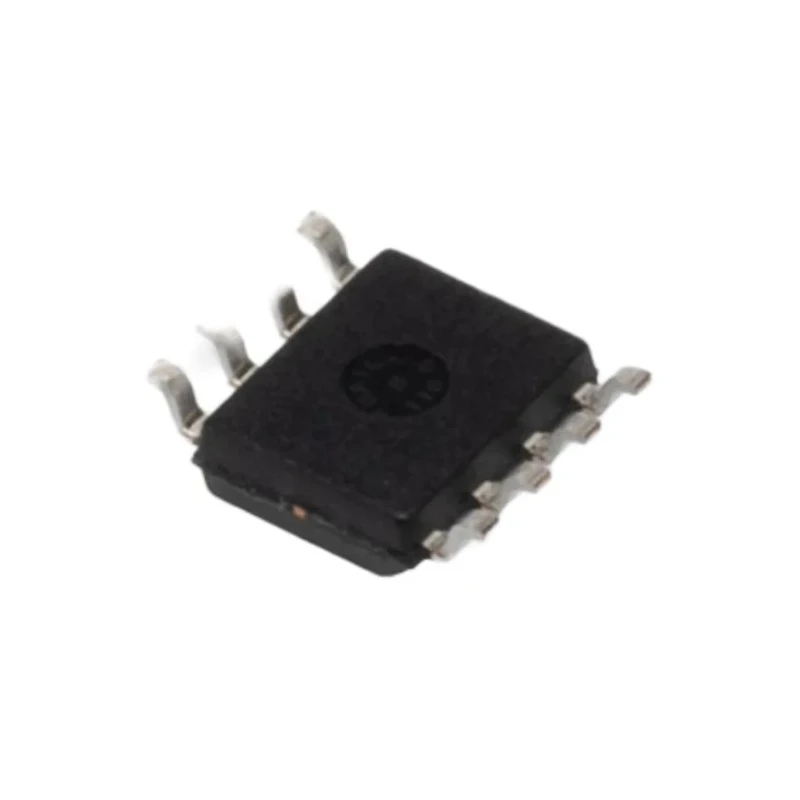

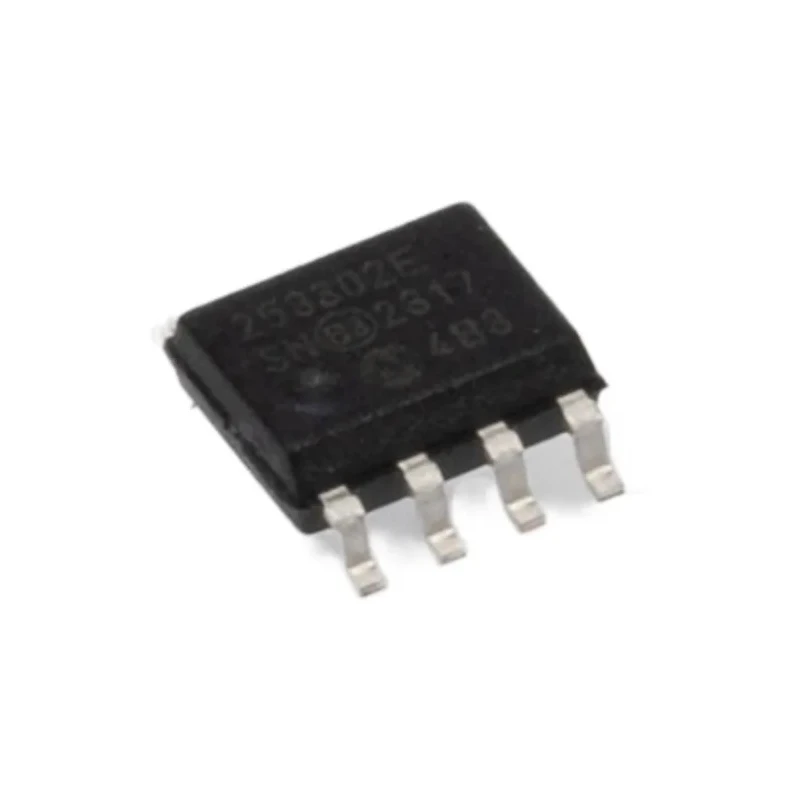

Microchip Low Dropout Voltage Regulator, 5-Channel, Fixed 3.3V Output, 500 mA, SOIC 8-Pin MCP1725-3302E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP1725 |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1725 |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 6V |
| Output Voltage | 3.3V |
| Quiescent Current | 120μA |
| Line Regulation | 0.05 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.3V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides stable low dropout voltage regulation for sensitive electronic circuits.
- Fixed 3.3V output voltage with a 500 mA output current capacity.
- Compact SOIC 8-pin surface mount package supports efficient PCB design.
- Low quiescent current of 120 μA ensures minimal power consumption.
- Wide input voltage range from 2.3V to 6V for versatile applications.
- Accurate line regulation of 0.05 %/V and load regulation of 0.5 % for precise output.
- Operates reliably in temperatures from -40°C to 125°C meeting automotive AEC-Q100 standards.
- RoHS compliant, suitable for industrial and automotive power management uses.
Product Description
Microchip MCP1725-3302E/SN is a high-performance low dropout (LDO) Voltage Regulator designed to supply regulated fixed 3.3V output voltage with up to 500 mA output current. It features low dropout voltage characteristics ideal for power-sensitive electronic components and systems.
The device comes in a compact SOIC 8-pin surface mount package, making it suitable for space-constrained designs and efficient PCB layouts. Its low quiescent current of 120 μA makes it highly effective for battery-powered and low power consumption applications.
With an input voltage range from 2.3V to a maximum of 6V, it supports a broad variety of power supply configurations. The MCP1725 offers precise regulation with line regulation at 0.05 %/V and load regulation of 0.5 %, ensuring stable voltage output under variable load and line conditions.
This regulator complies with RoHS standards and the automotive AEC-Q100 requirement, making it reliable and suitable for automotive, industrial, and general electronics power management. Its operating temperature range from -40°C to +125°C provides robust performance in harsh environments.
Features fixed 3.3V output voltage and 500 mA output current capacity. Low quiescent current improves battery life in portable devices. Satisfies stringent automotive and industrial quality standards. Surface mount SOIC 8-pin package enhances assembly efficiency.
Line and load regulation ensure precise voltage delivery for sensitive electronics. Wide operating temperature range suitable for diverse environmental conditions. Positive polarity and fixed output type for stable power supply design.
RoHS compliant for environmental safety compliance. Applicable in electronic components, power & connectors, and semiconductor systems.
Choose Microchip MCP1725-3302E/SN for your applications in electronic circuits requiring efficient, stable, and precise low dropout voltage regulation. Compatible with industrial, automotive, and laboratory environments, it helps improve reliability and energy efficiency.
Explore more models and power management components in EnvMart's Electronics & Electricals category for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 3.3V.
It has a maximum output current capacity of 500 mA.
The input voltage range is from 2.3V to 6V, allowing for versatile applications.
The dimensions are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
The quiescent current is 120 μA, which helps minimize power consumption.
It features a line regulation of 0.05 %/V and a load regulation of 0.5 % for precise output.
The MCP1725 operates reliably in temperatures from -40°C to +125°C.
It comes in a compact SOIC 8-pin surface mount package.
Yes, it is RoHS compliant and meets automotive AEC-Q100 standards.
This model provides 5 outputs.
It has a positive polarity, suitable for stable power supply design.
It is suitable for automotive, industrial, and general electronics power management applications.
