Epson 27 MHz Crystal ±50 ppm Surface Mount 4-Pin 3.2 x 2.5 x 0.7 mm Q22FA2380007912

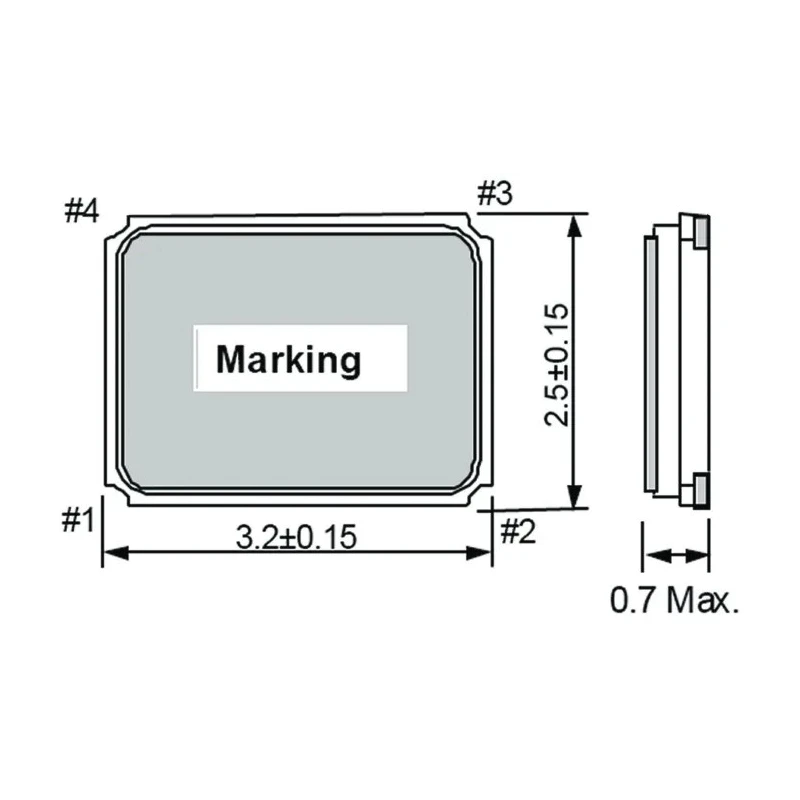

Epson Q22FA2380007912 is a 27 MHz surface mount crystal unit with a compact footprint of 3.2 x 2.5 x 0.7 mm and a low profile height of 0.7 mm. Designed for high precision frequency control, this crystal is stable with a frequency tolerance of ±50 ppm and frequency stability of ±30 ppm, making it suitable for sensitive electronic applications.

The crystal features a 4-pin configuration with a series resistance of 50 Ω, ensuring consistent oscillation performance. It is packaged in tape and reel for compatibility with automated surface mount technology (SMT) assembly lines.

This crystal is ideal for mobile phones, Bluetooth devices, and W-LAN ISM band radios, serving as a reliable clock source for MPUs and communication circuits. Rated for operation in temperatures ranging from -40°C to 85°C, it maintains stable performance in a range of environments.

The product complies with RoHS standards, reinforcing environmental safety in electronic manufacturing processes. The FA-238 series encompassing this model is known for its miniature size and fundamental overtone order, supporting frequencies between 16 MHz and 60 MHz, providing flexible use across many designs.

The crystal offers a standard frequency of 27 MHz for precise timing. It supports load capacitance of 10 pF compatible with typical circuit requirements. Designed to meet RoHS compliance for environmental responsibility.

Its robust temperature range covers industrial and consumer electronics use cases. Packaged with tape & reel for efficient handling and assembly.
