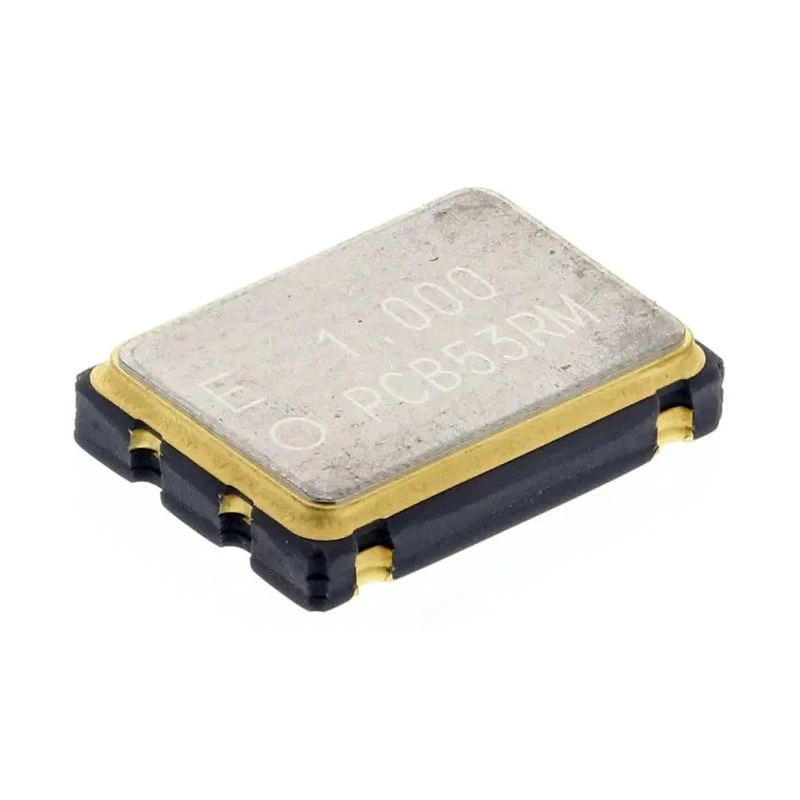

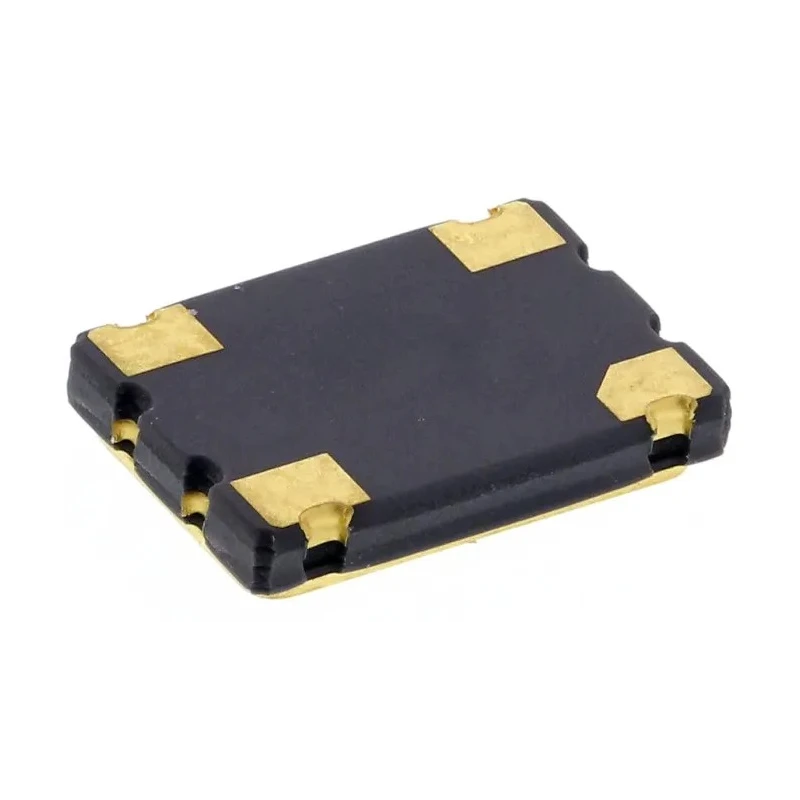

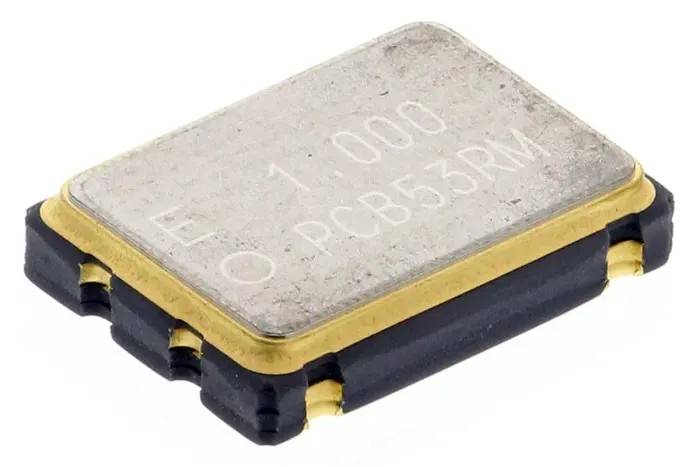

Epson 1MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount Q3309CA40041712

Epson Q3309CA40041712 1MHz XO Oscillator is a high-quality electronic component designed for reliable frequency generation in industrial and commercial applications. This oscillator features a stable ±50 ppm frequency stability with a 1MHz output, making it suitable for precision timing circuits, communication equipment, and embedded systems.

The device comes in a compact 7x5x1.4 mm ceramic package suitable for surface mount technology (SMT) with a standard 4-pin configuration, facilitating easy assembly in printed circuit boards (PCB). Operating comfortably within a temperature range of -20°C to 70°C, it ensures consistent performance in varied environmental conditions.

This oscillator supports a supply voltage ranging from 2.7V to 5.5V and outputs a CMOS compatible signal, ensuring compatibility with modern digital electronic circuits. Its advanced PPL technology broadens the spectrum of frequency outputs while offering optional low power consumption features such as stand-by and output enable functions, beneficial for power-sensitive applications.

The SG-8002 series design emphasizes durability and conformance with strict industry standards including ISO 14001, ISO 9001, CE marking, RoHS compliance, Pb Free, and ISO/TS 16949 certification, underscoring its quality and environmental responsibility. The ceramic case offers enhanced mechanical strength and thermal stability.

This crystal oscillator is widely utilized in electronic manufacturing, automotive electronics, telecommunications, instrumentation, and other industrial fields that require stable clocking signals. It provides designers and engineers a dependable component for high-frequency timing and synchronization tasks.

The oscillator operates at a frequency of 1MHz with XO type technology. It has a package designed for surface mounting with four pins for easy integration. Minimum supply voltage requirement is 2.7V with a maximum up to 5.5V.

Operating temperature ranges from -20°C to 70°C ensuring reliability in various environments. Compact ceramic casing measures 7mm in length, 5mm in width, and 1.4mm in height. Output level is CMOS compatible, suitable for many digital circuits.

Designed with advanced PPL technology allowing wide frequency output and optional stand-by or output enable functions. Meets relevant standards including ISO 14001, ISO 9001, Pb Free, CE, RoHS, and ISO/TS 16949 for quality and environmental compliance.
