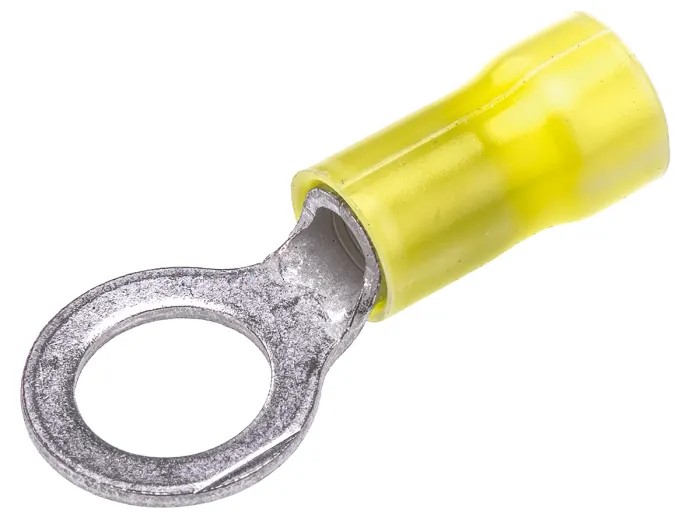

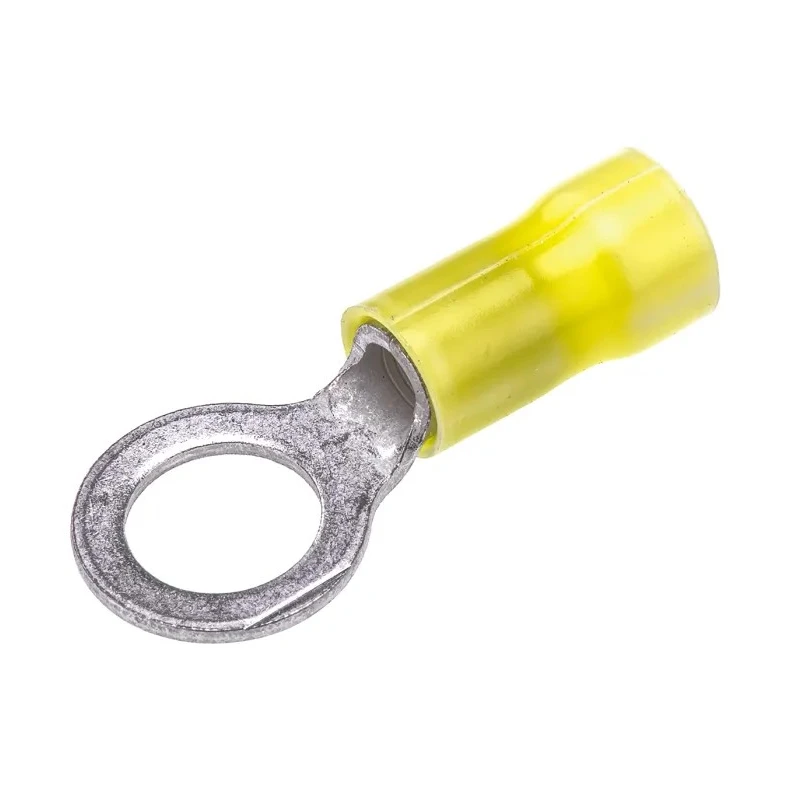

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M8 Stud Size 12 AWG 10 AWG Wire Size Yellow 160296
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.99mm |
| Model | 160296 |
| Insulation | Insulated |
| Overall Length | 30.1mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 12.65mm |
| Inner Ring Diameter | 8.3mm |
| Stud Size | M8 |
Key Features
- Made from high conductivity tin-plated copper for excellent electrical contact.
- Features a vinyl insulated sleeve rated 94V-0 for high dielectric strength.
- The serrated inner barrel maximizes tensile strength after crimping.
- Yellow insulation sleeve color indicates compatibility with 2.7 - 6.6 mm² wire sizes.
- Overall terminal length measures 30.1 mm ensuring compact installation.
- Capable of withstanding maximum operating temperature of 105°C.
- Designed to facilitate easy wire insertion with a funneled wire barrel entry.
- Suitable for industrial, automotive, and electrical wiring applications.
Product Description
TE Connectivity 160296 PLASTI-GRIP insulated ring terminal is engineered for dependable electrical connections in various industrial and automotive wiring applications. Featuring a durable copper contact with tin plating, this terminal ensures excellent conductivity and corrosion resistance.
The terminal includes a high dielectric strength vinyl insulation sleeve rated 94V-0, colored yellow to denote wire compatibility for 12 AWG to 10 AWG (3 mm² to 6 mm²) wire sizes. The serrated inner barrel improves electrical contact and mechanical retention after crimping, preventing wire slippage under vibration or stress.
With an overall length of 30.1 mm and an M8 stud size, this ring terminal facilitates straightforward and secure mounting in electrical panels and assemblies. Its funneled wire barrel entry simplifies wire insertion, enhancing installation efficiency.
This product can withstand operating temperatures of up to 105°C, making it suitable for demanding environments. It is an essential component for industries such as manufacturing, construction, automotive, HVAC, and electrical maintenance.
High conductivity copper with tin plating for reliable contacts. Insulated with vinyl sleeve for safety and high dielectric strength. Serrated barrel for superior mechanical and electrical performance. Yellow sleeve for wire size identification (12 AWG to 10 AWG).
Designed for use with M8 stud mounting. Compact overall length of 30.1 mm. Rated for maximum operating temperature of 105°C. Manufactured in the United States under strict quality standards.
The TE Connectivity PLASTI-GRIP Ring Terminal enhances installation efficiency and electrical safety across various industrial applications. Browse the Electronics Components category on EnvMart for compatible connectors, terminals, and wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG to 10 AWG, or 3 mm² to 6 mm².
It can withstand a maximum operating temperature of 105°C, making it suitable for demanding environments.
The contact material is copper, which is tin-plated for improved conductivity and corrosion resistance.
The overall length of this terminal is 30.1 mm, allowing for compact installation.
It features a vinyl insulated sleeve rated 94V-0 for high dielectric strength.
This model is designed for M8 stud size mounting.
The serrated inner barrel maximizes tensile strength after crimping, improving electrical contact and preventing wire slippage under stress.
It is suitable for various applications in industries such as manufacturing, construction, automotive, HVAC, and electrical maintenance.
The insulation sleeve is yellow, which indicates compatibility with wire sizes from 12 AWG to 10 AWG.
The inner ring diameter is 8.3 mm, while the outer ring diameter is 12.65 mm.
This terminal is manufactured in the United States under strict quality standards.
The funneled wire barrel entry simplifies wire insertion, enhancing installation efficiency.
