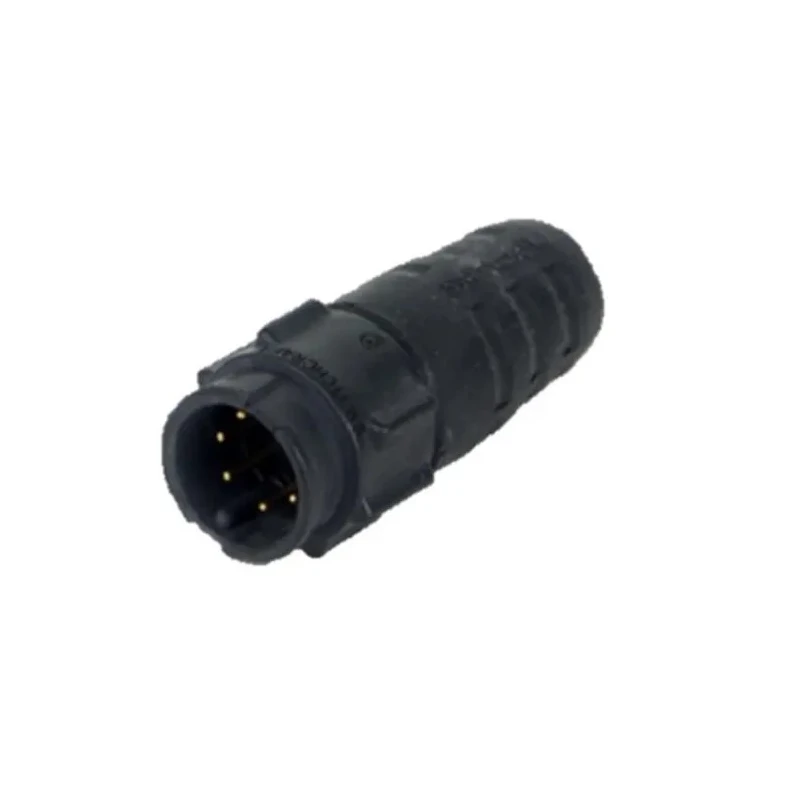

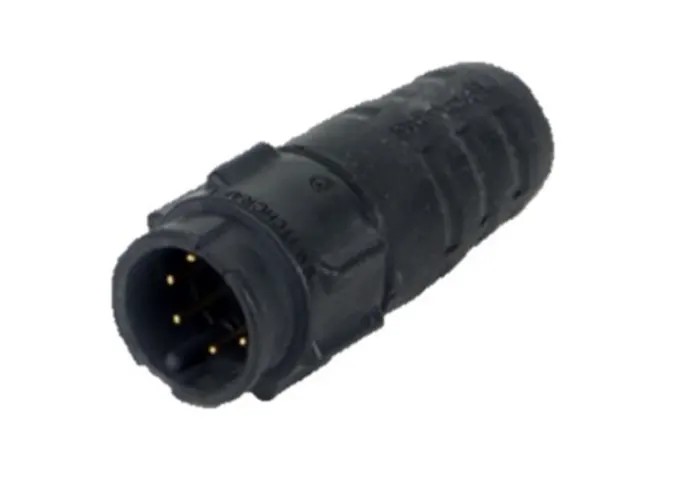

Switchcraft Circular Connector Cable Mount Plug Male 4 Contacts IP68 IP69K Thermoplastic Housing 250V 7.5A EN3L4MX
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Switchcraft |
| Orientation | Straight |
| Current | 7.5A |
| Model | EN3L4MX |
| IP Rating | IP68, IP69K |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EN3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Constructed with thermoplastic rubber housing and gold-plated copper contacts.
- Supports cable diameters from 4.6mm to 6.73mm with strain relief boot backshell.
- Features bayonet locking and an O-ring gasket for secure, weather-tight connections.
- Operates reliably between -40°C and 65°C for demanding industrial environments.
- Suitable for marine, instrumentation, transportation, and industrial electronic applications.
- Provides solder cup termination with straight body orientation for ease of assembly.
Product Description
Switchcraft EN3L4MX circular connector is a premium cable mount plug with 4 male contacts designed for industrial and electronic applications. It features a thermoplastic rubber housing with copper alloy contacts plated in gold over nickel to ensure reliable electrical performance and corrosion resistance. Rated for 250VAC/DC voltage and 7.5A current per contact, it supports cables with diameters ranging from 4.6mm to 6.73mm through its boot backshell for strain relief.
The connector uses a bayonet locking mechanism combined with an integral O-ring and gasket design, offering robust IP68 and IP69K ingress protection. This construction ensures superior leakage protection and mechanical stability suitable for harsh environments including marine, medical instrumentation, transportation, and industrial electronics.
Operating temperature ranges from -40°C up to 65°C, allowing use in extreme temperature conditions. Its straight body orientation and solder cup termination provide ease of use during installation and maintenance.
The Switchcraft EN3 series connectors are noted for their low part count and mini weather-tight design, featuring a polarizing keyway and 1/4 turn locking to prevent misalignment and unintentional disconnection. The strain relief design with thermoplastic rubber boots further protects cables, enhancing connector longevity even in demanding industrial applications.
Thermoplastic rubber housing with gold-plated copper contacts. Bayonet locking and IP68, IP69K ratings provide water and dust ingress protection. Operating temperature from -40°C to 65°C for reliable performance. Straight body orientation and solder cup termination improve handling.
Ideal for use in industrial electronic, marine, instrumentation, and transportation applications.
This connector is manufactured in the United States and is engineered to meet rigorous industrial connection standards. The product is designed to mate with compatible panel or in-line connectors and offers optional protective caps available separately for unused panel connectors.
Explore the comprehensive selection of Industrial Circular Connectors and electronic components available to suit your project requirements here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Switchcraft EN3L4MX is rated for 250V AC/DC voltage.
It has a current rating of 7.5A per contact.
This connector operates reliably between -40°C and 65°C.
It features solder cup termination, allowing for ease of assembly.
The housing is made from thermoplastic rubber, and the contacts are gold-plated copper.
The bayonet locking mechanism provides a secure connection by allowing a 1/4 turn to lock the connector in place, preventing unintentional disconnection.
It has an IP68 and IP69K rating, providing excellent protection against dust and water ingress.
It supports cable diameters ranging from 4.6mm to 6.73mm.
This model is suitable for marine, instrumentation, transportation, and industrial electronic applications.
The Switchcraft EN3L4MX has a straight body orientation.
It is manufactured in the United States.
It features a bayonet mating type for secure connections.
