Switchcraft 6.35 mm Right Angle PCB Female 2 Way Mono Jack Connector RA49C-12A

Free Delivery in India | Lowest Global Shipping Charges

Switchcraft 6.35 mm Right Angle PCB Female 2 Way Mono Jack Connector RA49C-12A

Name: Switchcraft 6.35 mm Right Angle PCB Female 2 Way Mono Jack Connector RA49C-12A
Brand: SWITCHCRAFT
SKU: 167982
Price: 14.25 USD
Availability: InStock



Category Jack Connector Brand SWITCHCRAFT Condition New

Specifications

Country of Origin	United States
Size	6.35 mm
Brand	Switchcraft
Colour	Black
Orientation	Right Angle
Model	RA49C-12A
Number Of Ways	2
Mount Type	PCB
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	RA49
Termination Type	Solder
Sub Type	Mono
Contact Plating	Tin
Contact Gender	Female
Connector Gender	Female

Key Features

Right angle design enables compact PCB mounting and space saving.
Connector is female type with two contact ways for mono audio signals.
Termination is solder type for durable electrical connection.
Housing made from black thermoplastic material ensuring electrical insulation.
Contact plating is tin over copper alloy for reliable conductivity.
Includes metal thread bushings extending 0.492 in above PCB for mechanical stability.
Designed with tip spring to accommodate various tip shapes for versatility.
Provides greater retention on PCB during flow soldering process.

Product Description

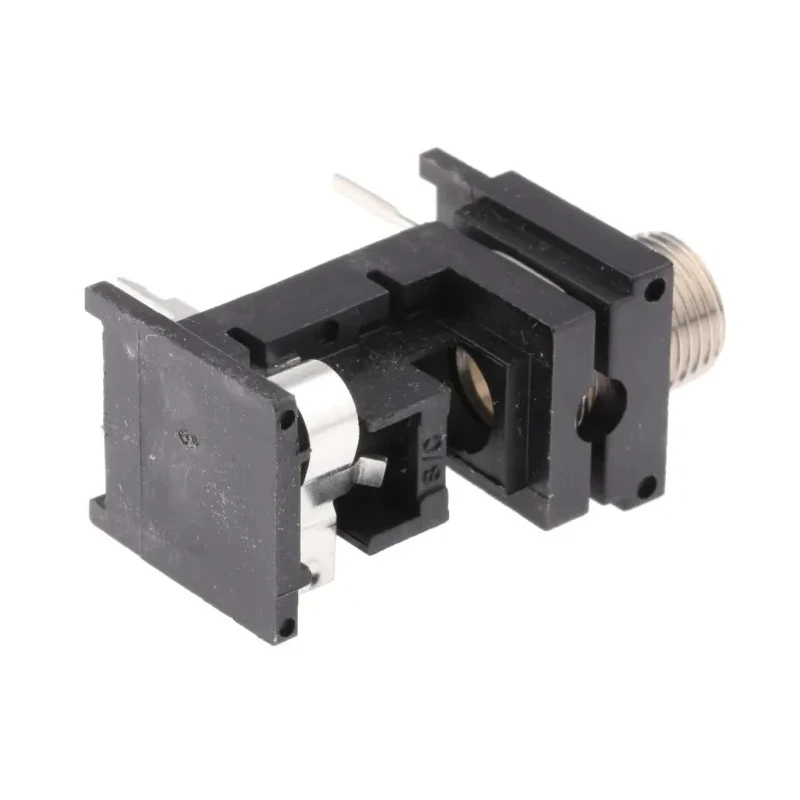

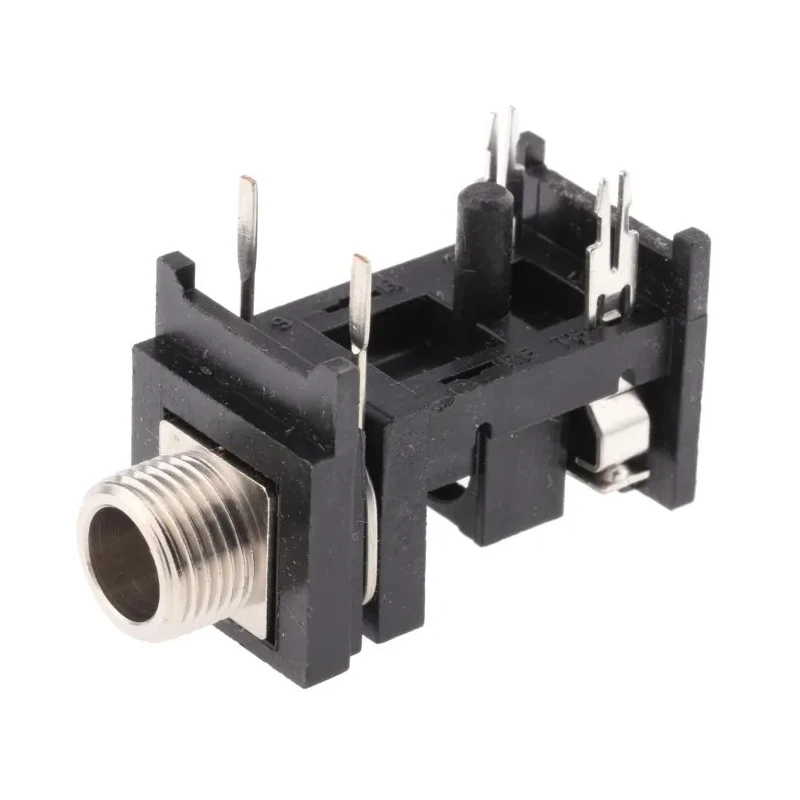

Switchcraft RA49C-12A is a 6.35 mm right angle female jack connector intended for reliable PCB mounting in electronic and audio devices. Manufactured in the United States, this connector is engineered with a durable thermoplastic housing and copper alloy contacts plated with tin to ensure excellent electrical conductivity and resistance to corrosion.

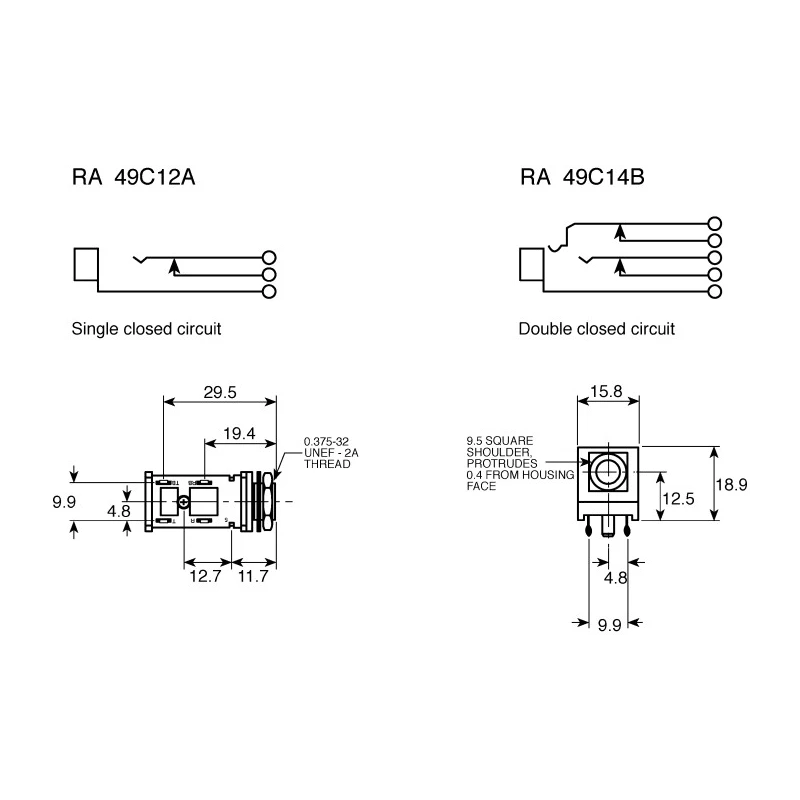

The connector features two contact ways catering to mono signal transmission. Its right angle orientation and split terminal design make it an ideal choice when PCB space is limited, allowing minimum mounting centres of 0.625 inches. A metal thread bushing extends 0.492 inches above the PCB to enhance mechanical retention and durability during usage.

The solder termination type is optimized for flow soldering techniques, with solder flowing to the top of terminals for improved mechanical and electrical retention. The tip spring design is flexible, accommodating a wide variety of tip shapes and enhancing connection reliability across different equipment.

This Jack Connector is widely suited for applications in audio/video equipment, professional audio devices, electronic circuits, and other industrial electronics requiring robust, compact connector solutions. Its high reliability and build quality make it a preferred component for manufacturers and designers focused on performance and durability.

Right angle PCB mounting saves space on printed circuit boards. Female connector with 2 ways supports mono audio signal. Tin plating offers corrosion resistance and solid conductivity. Thermoplastic housing provides insulation and mechanical strength.

Metal thread bushings increase retention and mechanical stability. Solder termination facilitates secure flow soldering connections. Flexible tip spring design adapts to multiple tip styles. Manufactured in the United States ensuring quality standards.
