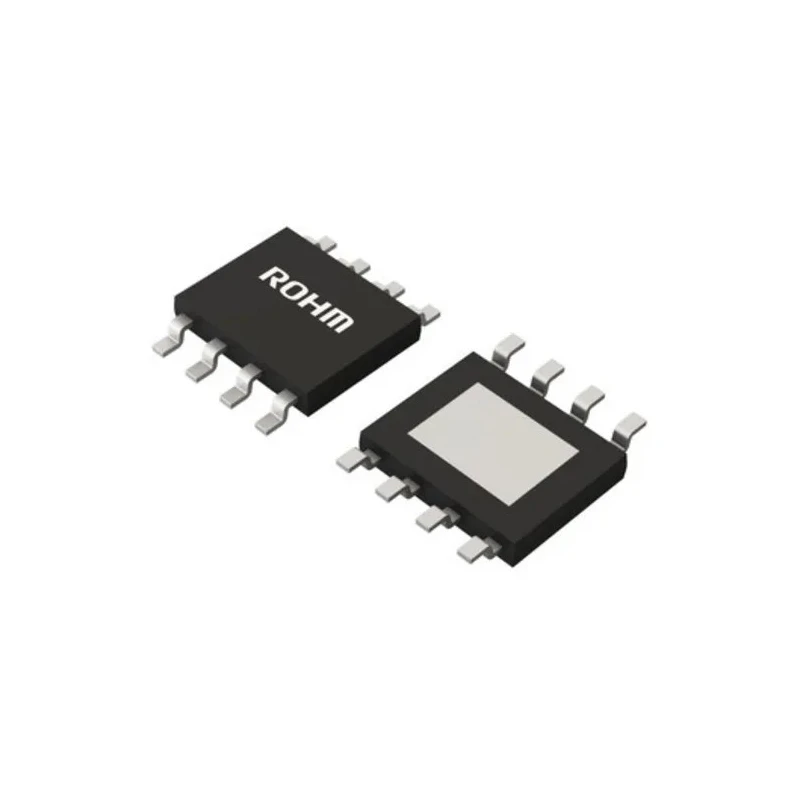

ROHM 1-Channel DC/DC Converter Adjustable 8-Pin HTSOP-J BD7J200EFJ-LBE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1mm |
| Length | 6mm |
| Model | BD7J200EFJ-LBE2 |
| Width | 4.9mm |
| Output type | Adjustable |
| Topology | Flyback |
| Maximum Operating Temperature | 125°C |
| Package Type | HTSOP-J |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 80V |
| Maximum Switching Frequency | 400kHz |
| Minimum Input Voltage | 8V |
| Pin Count | 8 |
Key Features
- Operates with a minimum input voltage of 8V and a maximum of 80V.
- Features a flyback topology with an adjustable output type for versatile power management.
- Integrates an 8-pin HTSOP-J package suitable for PCB mounting.
- Supports a maximum switching frequency of 400kHz for low noise operation.
- Designed for industrial applications with operating temperature range from -40°C to 125°C.
- Includes functionality for shutdown and enable control enhancing safety.
- Incorporates load compensation and thermal shutdown features for reliability.
- Built-in battery short circuit protection to prevent damage.
Product Description
The ROHM BD7J200EFJ-LBE2 is a highly efficient 1-channel DC/DC converter in an 8-pin HTSOP-J package designed for isolated flyback power supply applications, especially for industrial equipment. It operates over a wide input voltage range from 8V to 80V and supports adjustable outputs with a maximum switching frequency of 400kHz. The integrated switching MOSFET eliminates the need for external optocouplers and feedback circuits, reducing component count and improving system reliability.
This converter provides stable output voltage regulation with low output ripple and rapid load response, making it suitable for precise power management tasks in industrial environments. It includes advanced features such as shutdown and enable control, load compensation, thermal shutdown, and battery short circuit protection to safeguard the system during fault conditions.
Its compact package dimensions (6mm length, 4.9mm width, and 1mm height) make it ideal for space-constrained PCB applications. The wide operating temperature range (-40°C to 125°C) allows deployment in harsh industrial conditions.
This product is a long-time support solution widely used in industrial power supplies where high reliability and efficiency are critical. The ROHM BD7J200EFJ-LBE2 reduces the need for external phase compensation components by utilizing original control technology, simplifying design complexity.
Operates with a minimum input voltage of 8V and maximum 80V. Flyback topology ensures isolated power conversion. Adjustable output type enables flexible power supply configurations. Maximum switching frequency of 400kHz minimizes output ripple.
Integrated thermal shutdown and battery short protection enhance safety. Compact 8-pin HTSOP-J packaged IC supports space-saving designs. Wide operating temperatures from -40°C to 125°C support harsh environments. Eliminates need for external optocouplers for feedback stabilization.
Load compensation function maintains output stability under varying load. Reliable long-term use in industrial power supply applications.
Discover EnvMart's comprehensive range of semiconductor power management ICs suitable for industrial and commercial power supply designs. Explore ROHM products and other brands offering high-quality DC/DC Converters at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum input voltage of 8V and a maximum input voltage of 80V.
It supports a maximum switching frequency of 400kHz, which helps minimize output ripple.
The dimensions of this unit are 6mm in length, 4.9mm in width, and 1mm in height.
It features an adjustable output type, allowing for flexible power supply configurations.
This converter uses a flyback topology for isolated power conversion.
It is designed to operate within a wide temperature range from -40°C to 125°C.
This model has a single output channel.
It incorporates thermal shutdown and battery short circuit protection to enhance safety during operation.
This model has a pin count of 8, packaged in an HTSOP-J format suitable for PCB mounting.
It is specifically designed for isolated flyback power supply applications, particularly in industrial equipment.
No, it eliminates the need for external optocouplers and feedback circuits, reducing component count and improving reliability.
The country of origin for this product is India.
