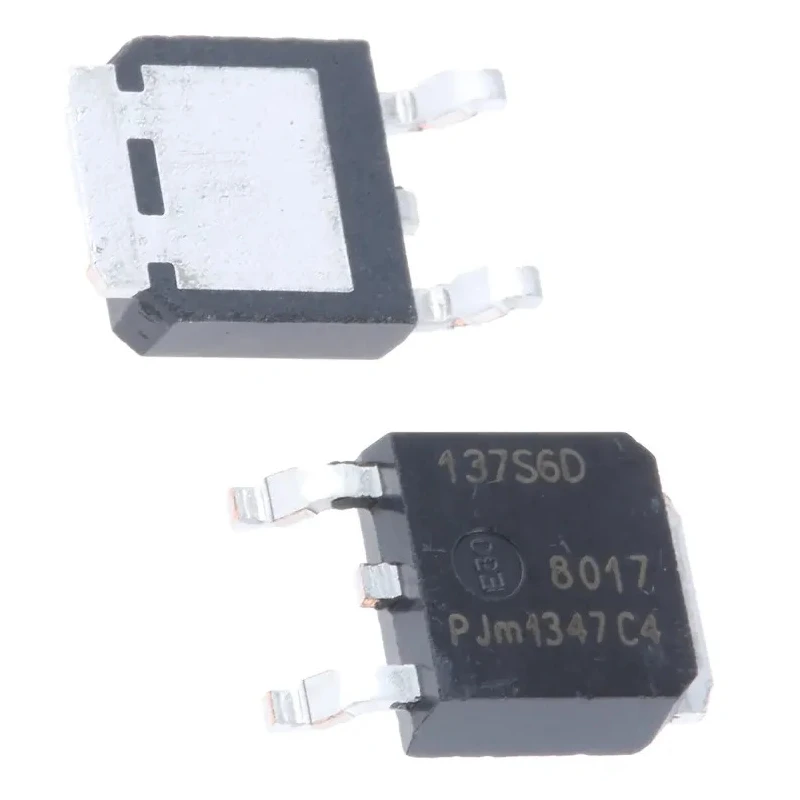

WeEn Semiconductors Co., Ltd Surface Mount 3-Pin TRIAC 600 V Gate Trigger 1 V BT137S-600D,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | BT137S-600D,118 |
| Mount Type | Surface |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 71A |
| Maximum Gate Trigger Current Igt | 5mA |
| Maximum Holding Current Ih | 10mA |
| Maximum Gate Trigger Voltage Vgt | 1V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- Rated average on-state current of 8A suitable for AC switching applications.
- Surge current capability up to 71A enhancing reliability under transient conditions.
- Compact TO-252 package with dimensions 6.73mm length and 2.38mm height.
- Maximum gate trigger current of 5mA ensuring ease of control.
- Operates reliably in a wide temperature range from -40°C to 125°C.
- Repetitive peak reverse voltage and off-state current rated at 600V and 0.5mA respectively.
- Designed as single configuration TRIAC with peak on-state voltage of 1.65V.
- Compliance with RoHS standards for environmental safety.
Product Description
WeEn Semiconductors Co., Ltd BT137S-600D,118 is a high-performance surface mount TRIAC designed for AC switching and control applications. This 3-pin device supports a repetitive peak reverse voltage of 600 V and can handle an average on-state current of 8 A, making it suitable for diverse industrial, commercial, and electronic applications.
Encapsulated in a compact TO-252 package measuring 6.73 mm in length and 2.38 mm in height, this TRIAC offers ease of mounting on printed circuit boards while maintaining reliable performance. Its maximum surge current rating of 71 A ensures robustness during transient load conditions.
The device requires only a low gate trigger voltage of 1 V and a trigger current of 5 mA, facilitating low power control circuits. It operates efficiently across a broad temperature range from -40°C to 125°C, ensuring durability in harsh environments.
Additional performance parameters include a maximum holding current of 10 mA and a peak on-state voltage of 1.65 V. The product complies with RoHS standards, confirming its environmentally-friendly design without hazardous substances.
Typical use cases include AC power control, lighting control, motor speed regulation, heater controls, and other switching applications in industrial automation, HVAC systems, and consumer electronics. The TRIAC's single configuration and surface mounting design enable easy integration into existing circuit designs.
Rated average on-state current of 8A suitable for AC switching applications. Surge current capability up to 71A enhancing reliability under transient conditions. Compact TO-252 package with dimensions 6.73mm length and 2.38mm height.
Maximum gate trigger current of 5mA ensuring ease of control. Operates reliably in a wide temperature range from -40°C to 125°C. Repetitive peak reverse voltage and off-state current rated at 600V and 0.5mA respectively.
Designed as single configuration TRIAC with peak on-state voltage of 1.65V. Compliance with RoHS standards for environmental safety. Maximum holding current is 10mA for secure switching operation. Explore more advanced semiconductor devices and TRIACs at EnvMart for your industrial and commercial electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this TRIAC is 8A, making it suitable for AC switching applications.
The maximum repetitive peak reverse voltage for this model is 600V.
This TRIAC has a surge current capability of up to 71A, enhancing its reliability under transient conditions.
The TO-252 package measures 6.73mm in length and 2.38mm in height.
The maximum gate trigger current for this model is 5mA, which ensures ease of control.
This TRIAC operates reliably within a wide temperature range from -40°C to 125°C.
The peak on-state voltage of this TRIAC is 1.65V.
The maximum holding current for this model is 10mA, ensuring secure switching operation.
Yes, this TRIAC complies with RoHS standards for environmental safety, confirming its design without hazardous substances.
This TRIAC has a pin count of 3, which is typical for its configuration.
Typical applications for this TRIAC include AC power control, lighting control, motor speed regulation, and heater controls.
This model uses surface mounting, which facilitates easy integration into existing circuit designs.
