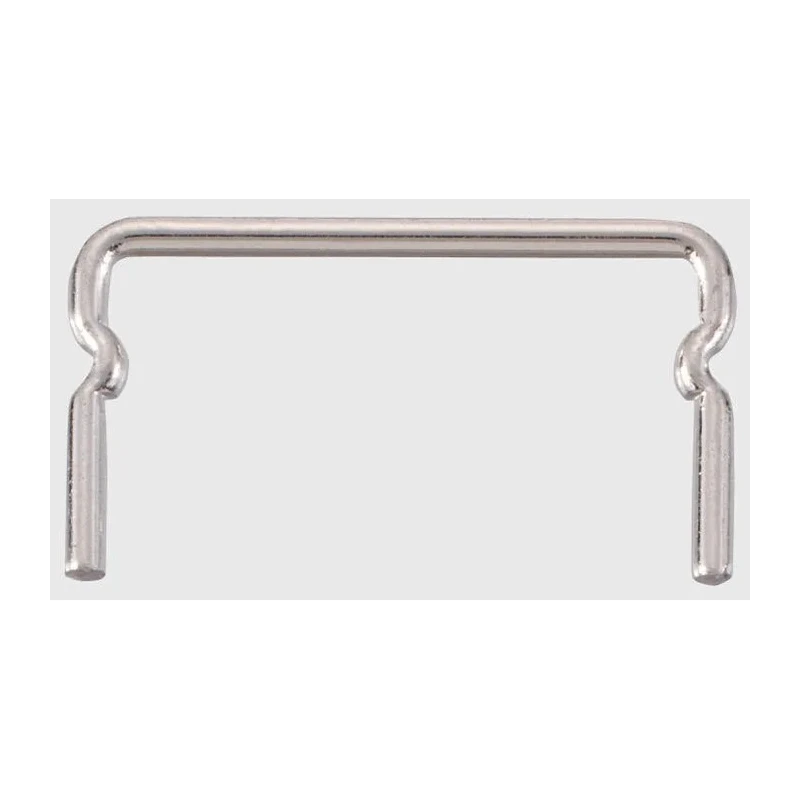

Mac 8 Jumper Straight Male Jumper 2 Way 1 Row 10.16 mm Pitch JP-5

Mac 8 JP-5 Jumper Straight Male Jumper 2 Way 1 Row 10.16 mm Pitch is a precision jumper designed for reliable electrical connections on printed circuit boards (PCBs). It features 2 male contacts spaced with a 10.16 mm pitch suitable for bridging and shorting applications.

The jumper contacts are made of phosphor bronze, plated with tin over nickel, providing excellent conductivity and corrosion resistance. The jumper's straight orientation and single row design make it a versatile component for various circuit configurations.

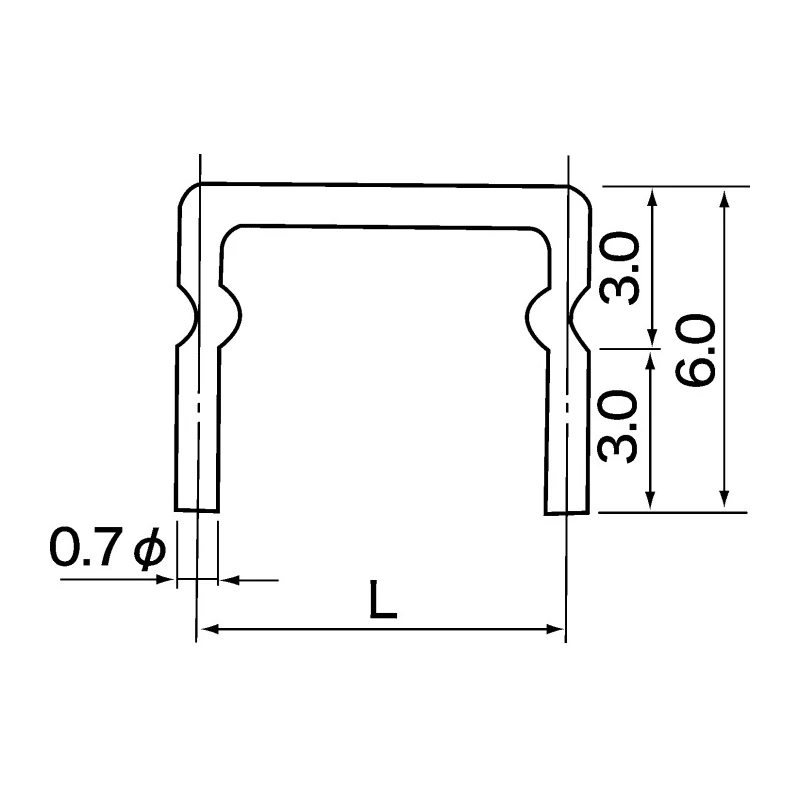

With a rated current carrying capacity of 3A, this jumper is ideal for moderate power circuits. Its compact size with dimensions approximately 10.86 mm in length, 6 mm in width, and 0.7 mm in depth enhances ease of use in dense PCB layouts.

Designed for use in the air above PCBs, the JP series jumpers enable efficient circuit bridging without soldering. The product is manufactured in Japan, reflecting stringent quality and manufacturing standards.

This jumper features 2 contacts for circuit bridging. Designed with a 10.16 mm pitch for standard PCB compatibility. Constructed using phosphor bronze contact material for durability. Contact plating is tin over nickel ensuring reliable conductivity.

Supports current up to 3A for moderate power applications. The orientation is straight to fit standard jumper slots with 1 row configuration. Compact dimensions of 10.86 mm length, 6 mm width, and 0.7 mm depth. Ideal for use in air above PCBs to short circuits efficiently.

Manufactured in Japan, ensuring high production quality standards.

This jumper is suitable for electronics manufacturing, prototyping, laboratory testing, and educational purposes, where PCB jumper wires are essential for circuit modification and testing.
