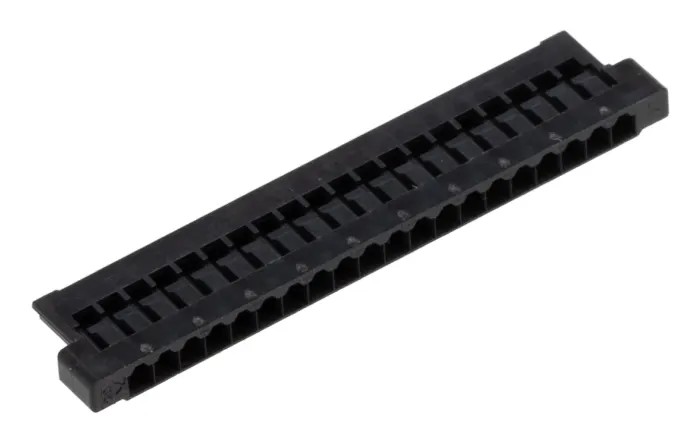

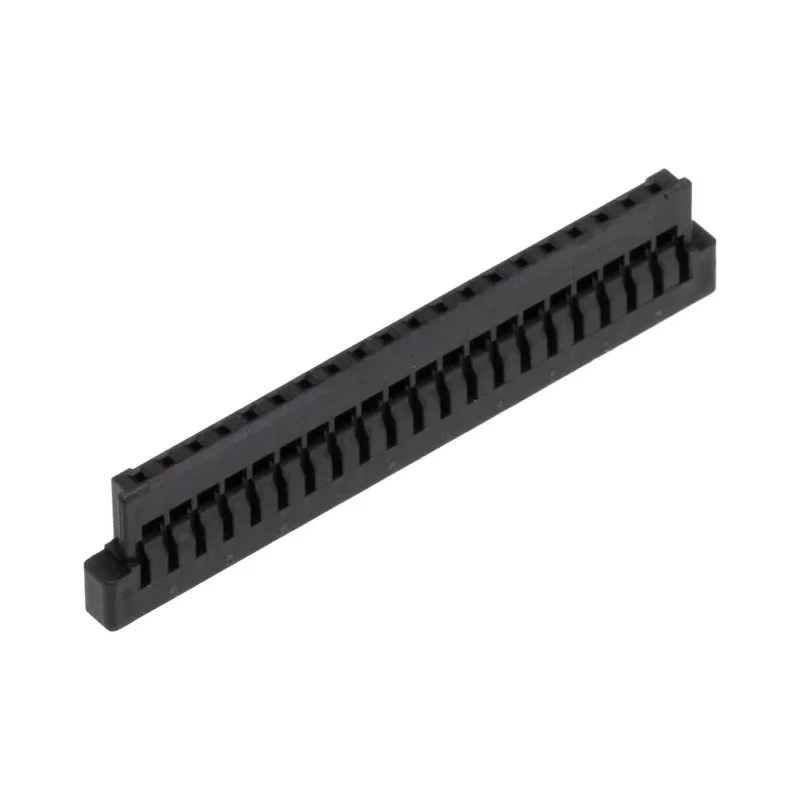

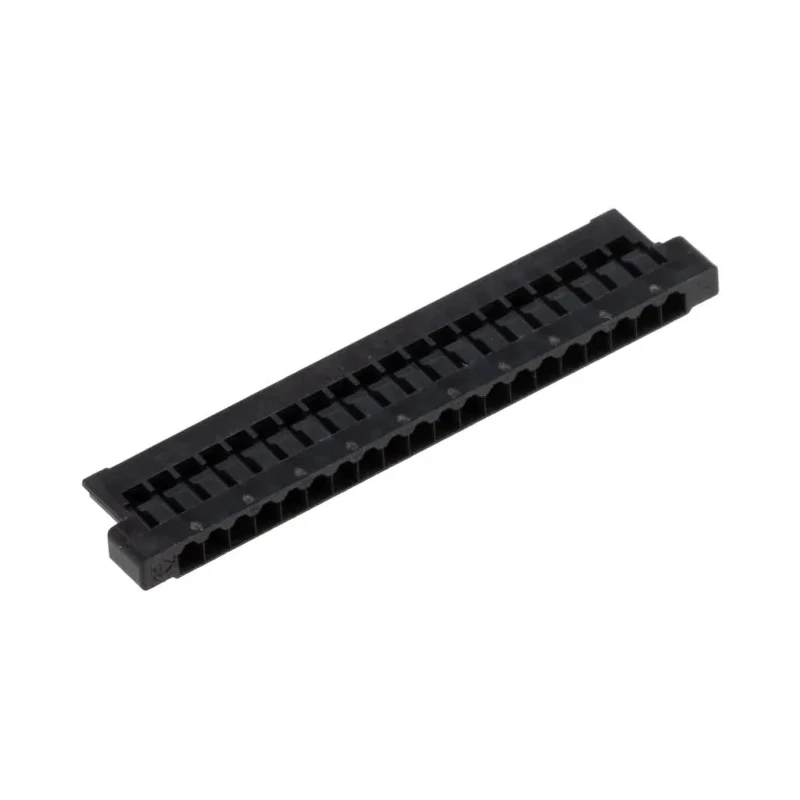

JAE LVDS Connector 1.25 mm Pitch 20 Way 1 Row Straight Cable Plug Housing Crimp FI-S20S

Free Delivery in India | Lowest Global Shipping Charges

JAE LVDS Connector 1.25 mm Pitch 20 Way 1 Row Straight Cable Plug Housing Crimp FI-S20S



Category LVDS Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Model	FI-S20S
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper Alloy
Series	FI
Termination Type	Crimp
Sub Type	Plug Housing
Number of Rows	1
Pitch	1.25mm
Standards/Approvals	RoHS
Number of Contacts	20
Housing Colour	Black

Key Features

Plug housing with crimp termination ensures secure electrical connections.
Features 20 contacts arranged in a single row with 1.25 mm pitch.
Constructed from black nylon housing for durability and UL94V-0 flame resistance.
Copper alloy contacts provide reliable conductivity and corrosion resistance.
Designed for cable mount with straight orientation, ideal for compact electronic devices.
Commonly used in notebook PCs, VCRs, mobile phones, and other space-sensitive applications.
FI series connectors ensure board-to-board applications with keying and friction lock features.
RoHS compliant ensuring environmentally friendly manufacturing and materials.

Product Description

JAE FI-S20S LVDS Connector Plug Housing is a 1.25 mm pitch 20 way 1 row straight cable plug housing designed for crimp termination applications. This connector features a black nylon housing with flame retardant UL94V-0 rating, making it suitable for demanding electronic environments.

Equipped with 20 copper alloy contacts arranged in a single row with a 1.25 mm pitch, this plug housing provides reliable and precise electrical connections. Its straight cable mount orientation is ideal for compact electronic assemblies requiring space-saving connectors.

These connectors are commonly used in consumer electronics such as notebook PCs, VCRs, mobile phones, and other devices where reduced space is critical. The FI series supports board-to-board interconnections with built-in keying and friction lock features to prevent incorrect mating.

The connector complies with RoHS environmental standards, ensuring it is free from hazardous substances. It is compatible with corresponding socket contacts and mating headers typically found in LVDS connector systems.

Plug housing with crimp termination ensures reliable cable connections. 20 contact points arranged in a single row with 1.25 mm pitch. Black nylon UL94V-0 rated housing for flame resistance. Copper alloy contacts offer excellent electrical conductivity.

Designed for straight cable mounting in compact devices. Common in notebook PCs, mobile phones, and VCRs for space efficiency. FI series supports keying and friction lock for secure mating. RoHS compliant for environmental safety.

Compatible with standard LVDS socket contacts and headers.

This connector is ideal for industrial, manufacturing, electronics assembly, and laboratory applications requiring compact and reliable LVDS cable connectors. Browse more LVDS Connectors and electronic components to suit your technical needs on EnvMart.
