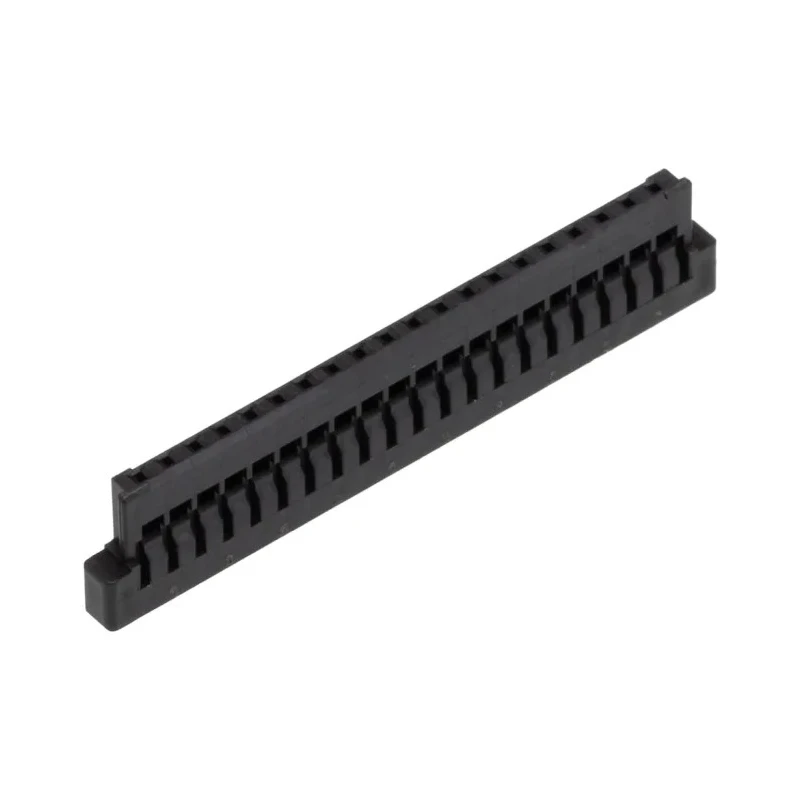

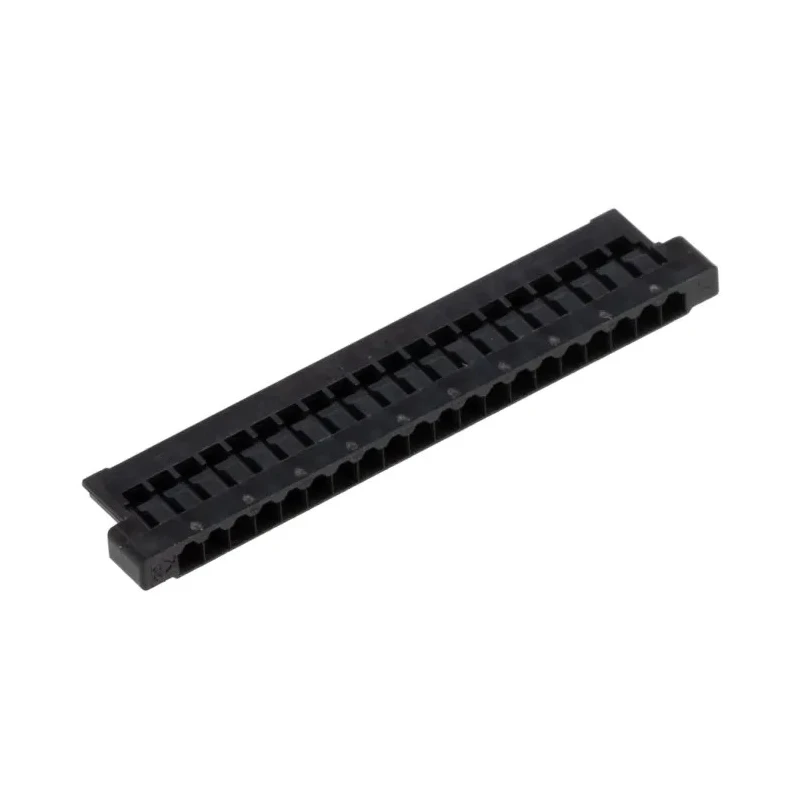

JAE LVDS Connector Plug Housing Cable, 1.25 mm Pitch, 20 Way, 1 Row, Straight Orientation FI-S20S

Free Delivery in India | Lowest Global Shipping Charges

JAE LVDS Connector Plug Housing Cable, 1.25 mm Pitch, 20 Way, 1 Row, Straight Orientation FI-S20S



Category LVDS Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Model	FI-S20S
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper Alloy
Series	FI
Termination Type	Crimp
Sub Type	Plug Housing
Number of Rows	1
Pitch	1.25mm
Standards/Approvals	RoHS
Number of Contacts	20
Housing Colour	Black

Key Features

The connector features crimp termination type for secure wire connections.
It is made with copper alloy contacts ensuring reliable conductivity.
The housing is constructed from black nylon with a UL94V-0 glass filled rating for flame resistance.
Designed with keying and friction lock features for reliable mating with corresponding headers.
Typical applications include notebook PCs, VCRs, mobile phones, and compact consumer electronics requiring reduced space.
Compatible with socket contacts and mating headers of the FI series.
The connector is RoHS compliant, ensuring environmentally friendly manufacturing.

Product Description

JAE FI-S20S LVDS Connector Plug Housing is engineered for high-performance wire-to-board applications requiring compact size and reliable connections. With a 1.25 mm pitch and 20 contacts arranged in a single row, this straight cable mount connector provides secure electrical transmission for LVDS signals.

The plug housing features crimp termination, allowing for durable and robust wire attachment. The copper alloy contacts guarantee excellent conductivity and resistance to wear over extended use cycles.

The housing is manufactured from black nylon with UL94V-0 glass filled material, providing excellent mechanical strength and flame retardancy. The design incorporates keying and friction lock mechanisms that ensure correct assembly and prevent accidental disconnection.

This connector is part of the FI series from JAE and is intended for applications such as notebook PCs, VCRs, mobile phones, and other consumer electronics where space constraints and reliable data transfer are critical. It is designed to mate with socket contacts, easily interfacing with compatible headers in electronic circuits.

JAE FI-S20S complies with RoHS standards, emphasizing the eco-friendly aspect of the component. The product comes supplied in bags, ready for machinery insertion to improve production efficiency.

The connector features crimp termination type for secure wire connections. It is made with copper alloy contacts ensuring reliable conductivity. The housing is constructed from black nylon with a UL94V-0 glass filled rating for flame resistance.

Designed with keying and friction lock features for reliable mating with corresponding headers. Typical applications include notebook PCs, VCRs, mobile phones, and compact consumer electronics requiring reduced space. Explore additional JAE connectors and LVDS cable solutions in the EnvMart catalog for expanded compatibility and engineering requirements.
