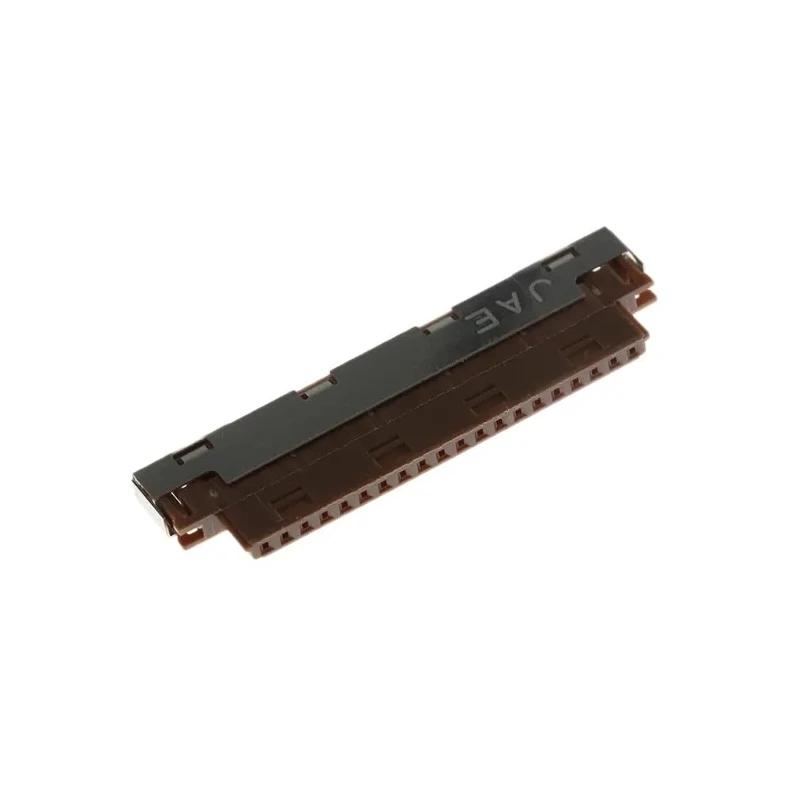

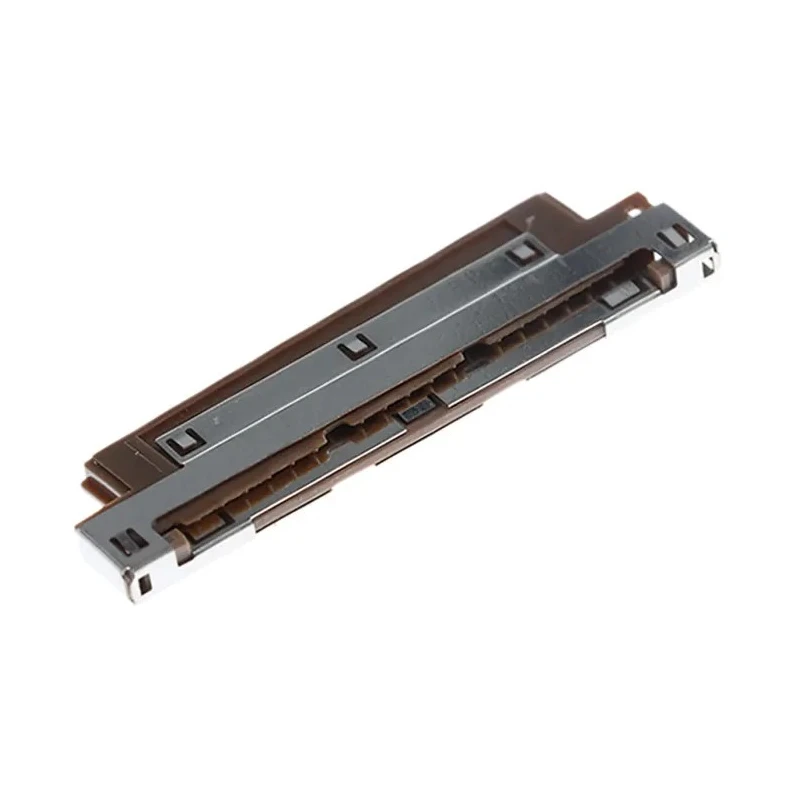

JAE FI 1.25 mm Pitch 20 Way 1 Row Straight Cable LVDS Connector FCP Plug IDT FI-SE20MRE
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Model | FI-SE20MRE |
| Mount Type | Cable |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Copper Alloy |
| Series | FI |
| Termination Type | IDT |
| Sub Type | FCP Plug |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 20 |
| Housing Colour | Brown |
Key Features
- This connector features 20 contacts in a single row for reliable signal connections.
- The 1.25 mm pitch ensures compatibility with high speed differential transmission up to 90 to 100 Ω.
- Constructed with copper alloy contacts and a polyphenylene sulphide brown housing for durability.
- Designed as an FCP plug with IDT termination for board-to-cable applications.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Favored by VESA as a standard LVDS connector for LCD interfaces and other digital equipment.
- Straight orientation provides ease of installation in cable assemblies.
- Supports digital technology needs in LCD, PDP, Rear Projection, and similar devices.
Product Description
JAE FI-SE20MRE is a 1.25 mm pitch LVDS connector designed as a 20-way, 1-row straight cable assembly FCP plug with IDT termination. The connector caters to the demanding electrical performance requirements of Low Voltage Differential Signalling (LVDS) transmissions for modern digital equipment.
With its copper alloy contact material and rigid polyphenylene sulphide housing in brown, this connector ensures long-term reliability and robust mechanical performance. The single-row layout with 20 contacts enables compact yet efficient wiring solutions, particularly suited for board-to-cable connections.
The FI series connectors are widely adopted in applications including LCD, PDP, rear projection displays, and other devices requiring high-speed differential signal transmission. The 1.25 mm pitch and electrical characteristics are optimized for 90 to 100 Ω impedance, making this connector ideal for maintaining signal integrity across internal product wiring.
This straight cable connector includes features such as improved mechanical retention with latching options available in the FI family and shielded versions that further enhance EMI resistance. Additionally, it is recognized by the Video Electronics Standards Association (VESA) as a standard LVDS connector for LCD interfaces.
20 contacts arranged in 1 row for compact wiring. Copper alloy contacts for high conductivity and durability. Brown polyphenylene sulphide housing offering chemical and heat resistance. Designed for board-to-cable cable assemblies in electronic equipment.
Supports LVDS signal transmissions at 1.25 mm pitch. Compliance with RoHS environmental standards. Application in LCD, PDP, and rear projection display technology. Straight orientation facilitating easy cable routing.
This connector is suitable for multiple industrial domains including electronics manufacturing, display technology assembly, and digital signal applications where reliable and standardized signal connectors are critical.
Explore more LVDS Connectors and JAE series products for your electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.25 mm, which is optimized for Low Voltage Differential Signalling (LVDS) applications.
It features 20 contacts arranged in a single row, designed for efficient wiring solutions in board-to-cable applications.
The connector uses IDT termination, suitable for board-to-cable connections in electronic equipment.
It is constructed with copper alloy contacts and a polyphenylene sulphide housing, which provides chemical and heat resistance.
This model has a straight orientation, facilitating ease of installation in cable assemblies.
It meets RoHS standards, ensuring compliance with environmental regulations.
This connector is favored for use in LCD, PDP, rear projection displays, and other digital equipment requiring high-speed differential signal transmission.
The housing of this connector is brown in color, made from polyphenylene sulphide.
The connector is manufactured in India.
This connector is part of the FI series, which is recognized for its high-performance LVDS connectors.
The mount type for the FI-SE20MRE is cable, designed for straightforward integration into cable assemblies.
It is optimized for an impedance range of 90 to 100 Ω, which is crucial for maintaining signal integrity in LVDS applications.
