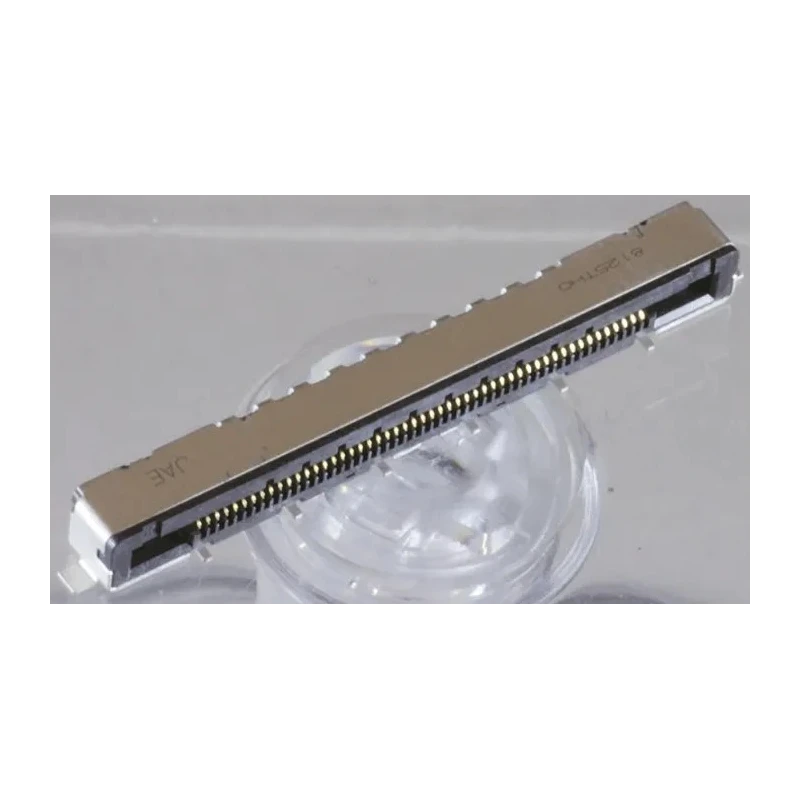

JAE FI-R 0.5 mm Pitch 51 Way 1 Row Right Angle Surface LVDS Connector Receptacle Solder FI-RE51S-HF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Model | FI-RE51S-HF |
| Mount Type | Surface |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | FI-R |
| Termination Type | Solder |
| Sub Type | Receptacle |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Number of Contacts | 51 |
| Housing Colour | Brown |
Key Features
- This connector features a compact and robust design suitable for high-speed digital serial transmission.
- The pitch is precisely 0.5 mm, enabling reliable wire-to-board connections.
- It has 51 contacts arranged in a single row with a right-angle orientation.
- The housing is brown polymer with copper alloy contacts for durability and conductivity.
- Designed with metal hold-downs for secure PCB retention and tin-plated stainless steel shell for EMI shielding.
- Compatible with applications such as high definition TVs LCD interfaces and other high-speed video transmissions.
- Suitable for use in medical, broadcasting, and server equipment requiring high signal integrity.
Product Description
JAE FI-RE51S-HF LVDS Connector is a 0.5 mm pitch, 51 way, 1 row, right angle surface mount receptacle designed for high-speed digital serial transmission applications. This connector belongs to the FI-R series, widely adopted as an industry standard for LCD interfaces in high definition televisions.
The connector features a robust low profile height of 3.8 mm for compact integration, with a tin-plated stainless steel shell ensuring excellent shielding and grounding performance.
Metal hold-downs enhance PCB retention security, while the brown polymer housing and copper alloy contacts optimize durability and signal conduction.
It is suitable for LVDS, TMDS (HDMI), and PCI Express signals, commonly used for high-speed internal video transmission in consumer electronics such as TVs, monitors, and digital signage.
Beyond display use, these connectors can be deployed in medical imaging, set-top boxes, base stations, copiers, fax machines, and servers where signal integrity and EMI shielding are critical.
This connector features a compact and robust design suitable for high-speed digital serial transmission. The pitch is precisely 0.5 mm, enabling reliable wire-to-board connections. It has 51 contacts arranged in a single row with a right-angle orientation.
The housing is brown polymer with copper alloy contacts for durability and conductivity. Designed with metal hold-downs for secure PCB retention and tin-plated stainless steel shell for EMI shielding. Compatible with applications such as high definition TVs LCD interfaces and other high-speed video transmissions.
Suitable for use in medical, broadcasting, and server equipment requiring high signal integrity.
Choose this JAE FI-RE51S-HF LVDS Connector for reliable, compact, and high-performance electronic connections in demanding industrial and commercial environments. Explore more connectors and electronic components on EnvMart for your engineering needs.
Explore more products in our LVDS Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm, allowing for reliable wire-to-board connections.
It features 51 contacts arranged in a single row.
This model uses surface mounting for installation.
The housing is made of brown polymer, while the contacts are constructed from copper alloy.
The connector is designed with a right-angle orientation.
The termination type for this model is solder.
It belongs to the FI-R series, which is widely adopted for LCD interfaces in high definition televisions.
The connector has a low profile height of 3.8 mm for compact integration.
It is suitable for applications such as high definition TVs, medical imaging, and server equipment that require high signal integrity.
It is designed for LVDS, TMDS (HDMI), and PCI Express signals, commonly used in high-speed internal video transmission.
The connector is designed with metal hold-downs that enhance PCB retention security.
The connector is manufactured in Japan.
