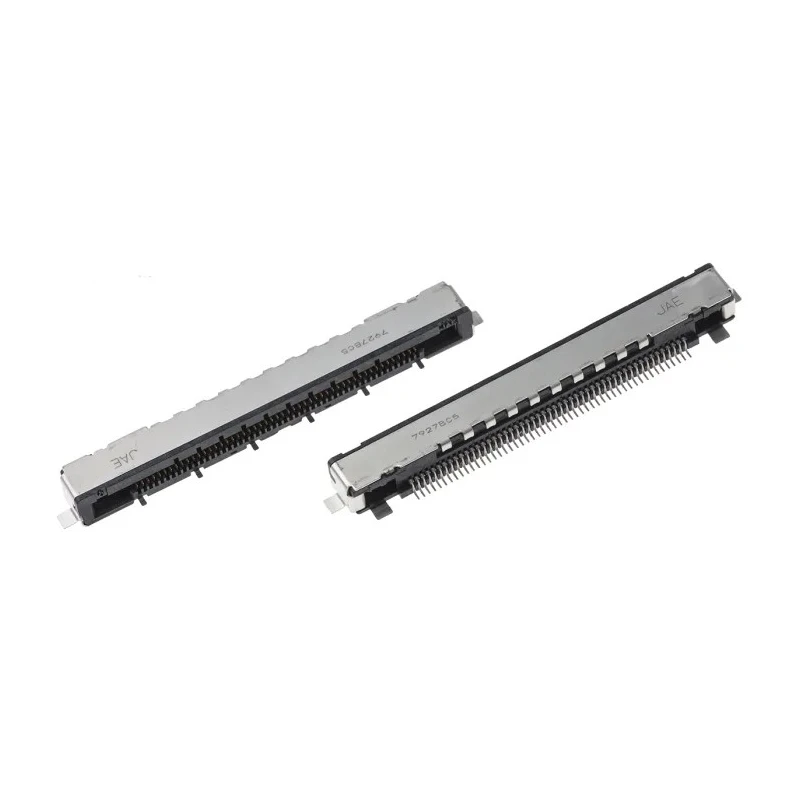

JAE FI-R Series 0.5 mm Pitch 51 Way 1 Row Right Angle Surface LVDS Connector Receptacle Solder FI-RE51S-HF
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Model | FI-RE51S-HF |
| Mount Type | Surface |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | FI-R |
| Termination Type | Solder |
| Sub Type | Receptacle |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 51 |
| Housing Colour | Brown |
Key Features
- Designed for high-speed digital serial transmissions with robust compact construction.
- Features a low profile height of 3.8 mm for space-saving installation.
- Made with copper alloy contacts and polymer brown housing for durability.
- Includes a tin-plated stainless steel shell for EMI shielding and grounding.
- Metal hold-downs provide secure PCB retention ensuring reliable connections.
- Complies with RoHS standards ensuring environmental safety.
- Industry standard for LCD interface in high definition televisions and displays.
- Compatible with LVDS, TMDS (HDMI), and PCI Express signals for versatile application.
Product Description
JAE FI-RE51S-HF is a high-speed LVDS Connector type Receptacle designed with a 0.5 mm pitch, 51 contacts arranged in a single row, and a right angle orientation for surface mount PCBs. It offers a compact and robust design with a low profile height of just 3.8 mm, making it ideal for space-conscious electronic applications. The connector features copper alloy contacts paired with a brown polymer housing for mechanical reliability and durability.
The stainless steel shell is tin-plated to provide effective EMI shielding and grounding, ensuring signal integrity in high-frequency digital serial transmissions. Metal hold-downs secure the connector firmly to the PCB, preventing loosening or disconnects during operation.
This connector series conforms to RoHS standards for environmental compliance. The FI-R connectors serve as an industry standard for LVDS high definition TV LCD interfaces, supporting applications including internal video transmission in TVs, monitors, and digital signage.
Its robust electrical and mechanical characteristics also enable its use in non-display systems requiring high signal integrity and EMI shielding such as medical imaging and scanning devices, set-top boxes, base stations, copiers, fax machines, and servers.
Designed for compact, high-speed digital serial transmission applications. Compact size with low profile height suitable for crowded PCB layouts. High-quality copper alloy contacts for reliable electrical performance. Polymer housing and stainless steel shell for durability and EMI shielding.
Secure PCB retention with metal hold-downs. RoHS compliant for environmental safety. Widely used in TV LCD interfaces and video transmission applications. Applicable to HDMI, TMDS, PCI Express signal transmission. Suitable for a broad range of industrial and commercial electronics.
Explore more connectors and electronic components from the Electronics & Electricals category on EnvMart.
Explore more products in our LVDS Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm.
This model features 51 contacts arranged in a single row.
It is made with copper alloy contacts and a polymer housing, along with a tin-plated stainless steel shell for EMI shielding.
The orientation of this connector is right angle.
This connector is designed for surface mounting on PCBs.
Yes, it complies with RoHS standards for environmental safety.
It is widely used in high definition televisions, monitors, digital signage, and other electronic systems requiring high signal integrity and EMI shielding.
The low profile height of this connector is 3.8 mm, making it suitable for space-constrained applications.
This connector uses a solder termination type.
The housing of this connector is brown in color.
The metal hold-downs provide secure retention to the PCB, ensuring reliable connections during operation.
It is compatible with LVDS, TMDS (HDMI), and PCI Express signals, allowing for versatile applications.
