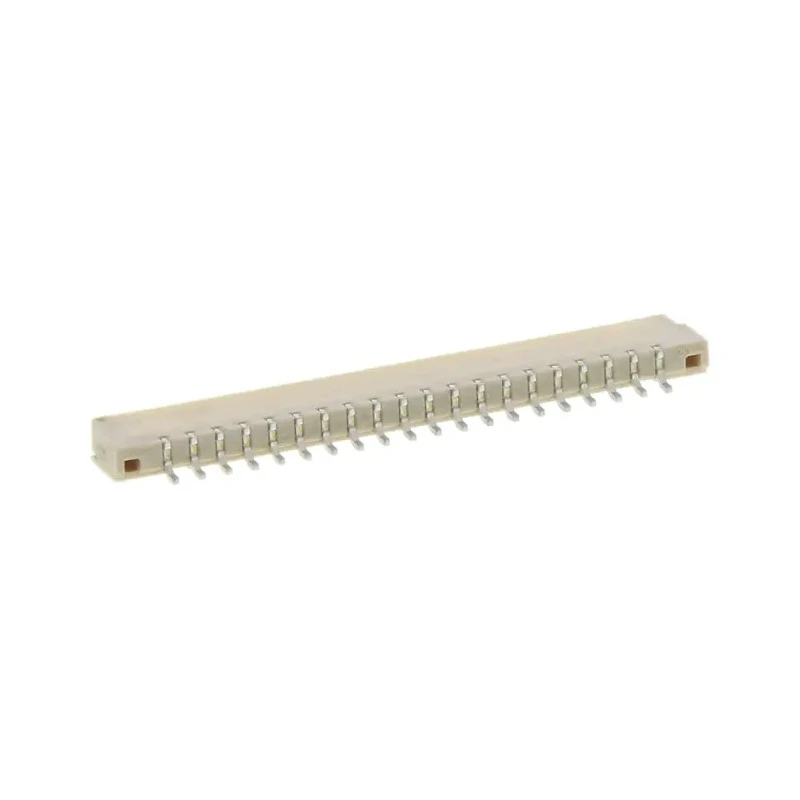

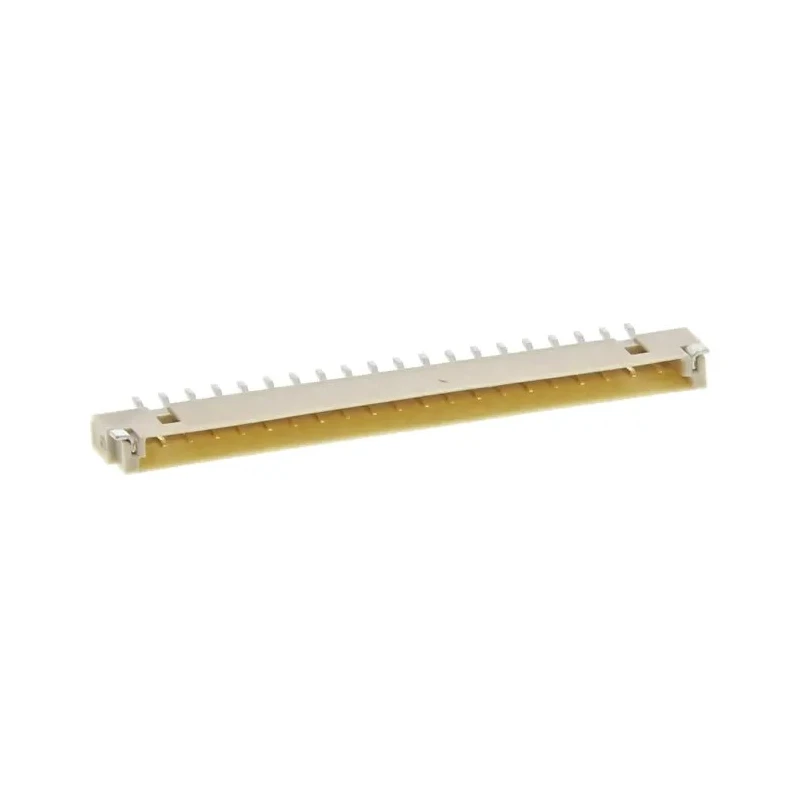

JAE FI 1.25 mm Pitch 20 Way 20 Row Right Angle Surface Mount LVDS Connector Receptacle Solder Termination FI-S20P-HFE
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Model | FI-S20P-HFE |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | FI |
| Termination Type | Solder |
| Sub Type | Receptacle |
| Number of Rows | 20 |
| Pitch | 1.25mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 20 |
| Housing Colour | Beige |
Key Features
- Designed for board to cable applications supporting Low Voltage Differential Signalling (LVDS).
- Right angle orientation with surface mount for PCB integration.
- Features 20 contacts arranged in 20 rows with a 1.25 mm pitch.
- Constructed with copper alloy contacts and liquid crystal polymer beige housing.
- Compliant with RoHS standards ensuring environmental safety.
- Provides high mechanical retention and EMI shielding options.
- Chosen as a standard LVDS connector by VESA for LCD interfaces.
- Solder termination type ensures secure attachment to PCB.
Product Description
JAE FI-S20P-HFE is a 1.25 mm pitch LVDS connector designed as a 20 way 20 row right angle receptacle with surface mount solder termination. This connector is part of the FI series tailored for board to cable applications requiring high-speed low voltage differential signalling (LVDS) transmissions.
Constructed with copper alloy contacts housed within a beige liquid crystal polymer, it ensures durability and reliable electrical performance. The right angle orientation facilitates compact PCB assembly, while solder termination provides secure and stable mounting.
The FI family meets the demands of modern digital devices including LCDs, plasma display panels (PDP), and rear projection systems. It supports differential impedance between 90 and 100 ohms, crucial for signal integrity in high-frequency transmission.
Features include latch versions for improved mechanical retention under vibration and shielded options to enhance EMI resistance. VESA has chosen the FI-R as the standard LVDS connector for LCD interfaces, highlighting its industry acceptance and performance.
Designed for board to cable use supporting LVDS transmissions. Right angle surface mount style suitable for PCB designs. 20 contacts arranged in 20 rows with a 1.25 mm pitch spacing. Copper alloy contact material for reliable conductivity.
Liquid crystal polymer housing in beige color for robust insulation. RoHS compliant manufacturing for environmental standards. Latches provide mechanical stability in vibrating environments. Shielded option available for enhanced electromagnetic interference protection.
Industry standard connector adopted by VESA for LCD applications. Solder termination ensures firm PCB attachment and electrical connection.
This LVDS connector is ideal for use in industrial electronics, manufacturing, computing devices, and display technology. It offers engineers an efficient, robust solution for secure PCB-to-cable interfacing while maintaining signal integrity across high-speed data lines.
Explore the extensive range of JAE connectors at EnvMart for all your electronic component needs.
Explore more products in our LVDS Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a 1.25 mm pitch and has 20 contacts arranged in 20 rows.
It is constructed with copper alloy contacts and a liquid crystal polymer housing in beige color.
This model uses solder termination for secure attachment to the PCB.
The connector is designed with a right angle orientation, suitable for compact PCB assembly.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This LVDS connector is ideal for use in industrial electronics, manufacturing, computing devices, and display technology.
The housing of this connector is beige in color.
It supports a differential impedance between 90 and 100 ohms, which is crucial for maintaining signal integrity in high-frequency transmissions.
The country of origin for this connector is India.
It utilizes a surface mount type for PCB integration.
This connector is part of the FI series designed for board to cable applications supporting LVDS transmissions.
