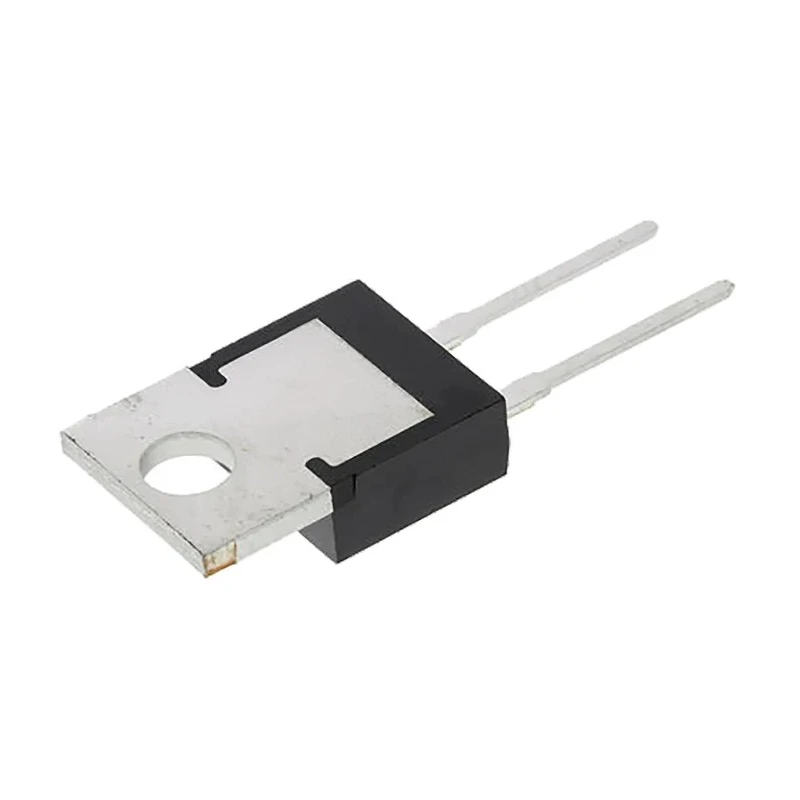

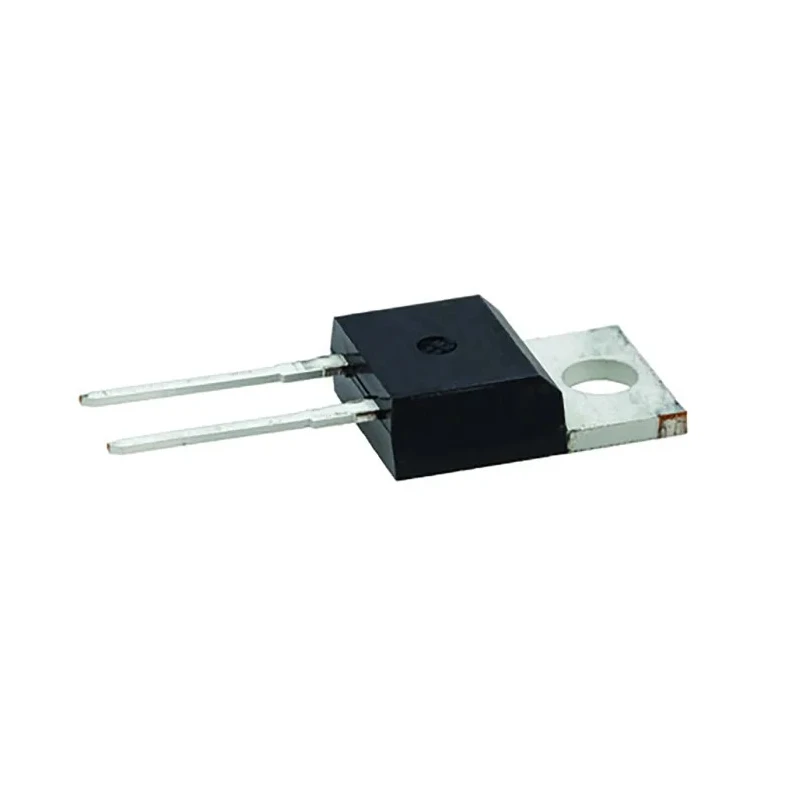

Infineon 1200 V 11.8 A Schottky Diode Single Rectifier Through Hole 3-Pin TO-220 IDH02G120C5XKSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 1200 V 11.8 A Schottky Diode Single Rectifier Through Hole 3-Pin TO-220 IDH02G120C5XKSA1

Name: Infineon 1200 V 11.8 A Schottky Diode Single Rectifier Through Hole 3-Pin TO-220 IDH02G120C5XKSA1
Brand: Infineon
SKU: 143943
Price: 1.75 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Infineon Condition New

Specifications

Country of Origin	Malaysia
Brand	Infineon
Height	15.95mm
Length	10.2mm
Model	IDH02G120C5XKSA1
Width	4.5mm
Mount Type	Through Hole
Series	IDH02G120C5
Maximum Operating Temperature	175°C
Package Type	TO-220
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Continuous Forward Current If	11.8A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	90μA
Peak Non-Repetitive Forward Surge Current Ifsm	37A
Maximum Forward Voltage Vf	2.3V

Key Features

Maximum continuous forward current of 11.8 A for robust operation.
Peak reverse repetitive voltage rating of 1200 V ensures high voltage tolerance.
Constructed in a TO-220 through-hole package with 3 pins for ease of mounting.
Operates reliably within -55°C to a maximum temperature of 175°C.
Features a maximum forward voltage of 2.3 V optimizing efficiency.
Low peak reverse current of 90 µA minimizes leakage losses.
Supports peak non-repetitive forward surge current up to 37 A for transient tolerance.
Compact dimensions with 10.2 mm length, 15.95 mm height, and 4.5 mm width.

Product Description

Infineon IDH02G120C5XKSA1 Schottky Diode in a TO-220 3-pin through-hole package offers excellent thermal characteristics using the advanced thinQ!™ Generation 5 silicon carbide (SiC) technology. It efficiently combines high voltage endurance and low forward voltage drop, making it ideal for high-power semiconductor applications.

This diode supports a maximum continuous forward current of 11.8 A and has a peak reverse repetitive voltage of 1200 V, enabling it to operate in demanding environments while maintaining reliable performance. Its maximum operating temperature is 175°C and the device operates down to -55°C, allowing use in a broad range of industrial applications.

The 3-pin TO-220 form factor ensures easy through-hole mounting suitable for telecom SMPS, server power supplies, uninterruptible power supplies (UPS), solar inverters, and motor drive installations. Its low peak reverse current of 90 µA and maximum forward voltage of 2.3 V contribute to improved efficiency by reducing power losses.

The diode's dimensions are compact, with a length of 10.2 mm, height of 15.95 mm, and width of 4.5 mm, which facilitates integration into various power electronic circuits. The single diode configuration and Schottky rectifier type ensure fast switching capabilities and reduced electromagnetic interference.

Efficient thermal conduction through advanced SiC thin wafer technology. Suitable for industrial, telecom, server, solar power, and motor drive applications. Precision-engineered for high voltage and current endurance with low losses.

Robust mechanical design for through-hole mounting and reliable operation. Compact, facilitates space-saving PCB designs. Manufactured in Malaysia with strict quality standards. Explore Infineon sector products and Schottky Diode categories on EnvMart for more high-quality semiconductor components.
