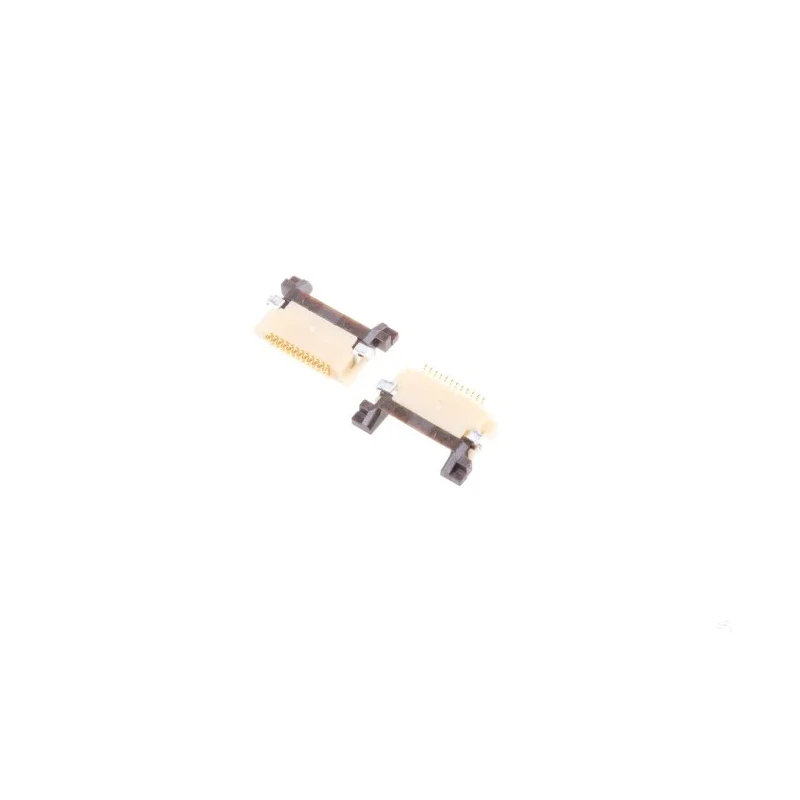

Hirose FPC Connector FH12 0.5 mm Pitch 12 Way Right Angle Female Solder Type

Hirose FH12 Series FPC Connector model FH12A-12S-0.5SH(55) is a 12-way right angle female connector with a 0.5 mm pitch designed for high density PCB applications. Featuring a one-touch rotating Zero Insertion Force (ZIF) actuator, it allows effortless cable connection and provides a tactile click to confirm secure mating. This surface mount connector has a top contact position and supports currents up to 500mA at 50V AC, suitable for low power signal transmissions.

The connector's contacts are made of phosphor bronze with gold plating to ensure excellent electrical conductivity and corrosion resistance. Its polyamide housing material offers mechanical strength and stability for demanding industrial and commercial electronics environments.

This FPC Connector is ideal for applications including mobile phones, GPS units, notebook computers, LCD TVs, digital and video cameras, and other compact handheld devices that require reliable and compact cable connections.

It is rated for operation in temperatures from -40°C to 70°C, ensuring performance integrity across a wide range of conditions. The connector’s right angle design helps save PCB space and supports high density mounting configurations.

The FH12 series supports both top and bottom mounting contact configurations; this particular model features the top contact with solder termination for secure attachment to PCBs. Locking is ensured through its positive locking mechanism integrated with the ZIF actuator.

The 12 contacts use phosphor bronze material and are gold plated for optimal conductivity. The one-touch rotating ZIF actuator provides easy operation and reliable mating confirmation. The compact right angle orientation enables efficient PCB space utilization.

Surface mount design facilitates automated assembly processes. Rated for 50V AC voltage and currents up to 500mA. Operates effectively between -40°C to 70°C temperature range. Durable polyamide housing material for long-term reliability.

Manufactured in Japan, ensuring high quality standards.

Suitable for diverse industrial, commercial, and consumer electronics including communication devices, instrumentation, imaging, and data terminal equipment, this connector ensures stable performance and ease of use with its ZIF functionality.
