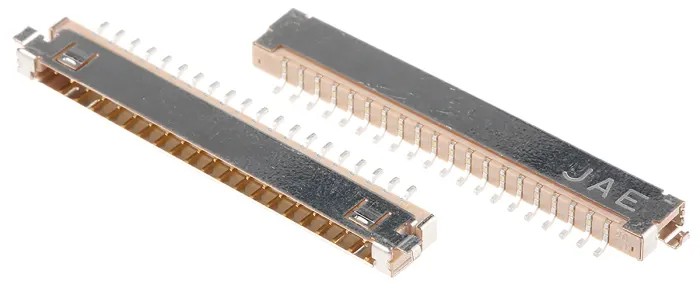

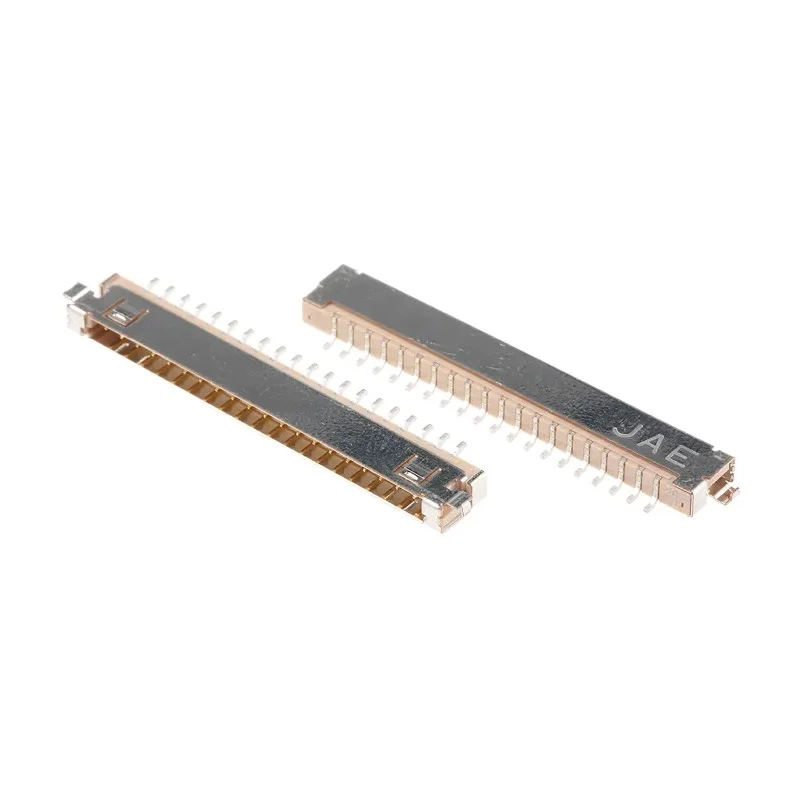

JAE FI 1.25 mm Pitch 20 Way 1 Row Right Angle Surface LVDS Connector Receptacle Solder FI-SE20P-HFE

JAE FI-SE20P-HFE is a high-performance LVDS connector designed for electronic components requiring reliable board-to-cable connections. Featuring a 1.25 mm pitch, this 20-way, 1-row connector is engineered for surface mounting with a right angle orientation, making it perfectly suited for space-constrained PCB layouts.

Its liquid crystal polymer housing offers mechanical strength and durability, while the beige housing color aids in easy identification during assembly. The copper alloy contacts ensure excellent conductivity and signal integrity for low voltage differential signaling, supporting data transmission rates necessary for modern LCD, plasma displays, and rear projection devices.

The connector complies with RoHS directives and is recognized by VESA as a standard LVDS connector, enhancing its suitability in display interfaces. With solder termination, it provides a robust and permanent mechanical and electrical connection to the PCB, suitable for industrial, manufacturing, and electronics assembly environments.

This FI series connector supports high speed differential transmissions with characteristic impedance between 90 and 100 ohms, ensuring minimal signal degradation and EMI interference. The right angle mounting orientation assists in efficient cable routing within compact electronic designs.

This product is ideal for use in commercial electronics, industrial computing, medical instrumentation, HVAC controls, and multimedia display systems where signal integrity and mechanical reliability are critical.

This connector supports 20 contacts organized in a single row with a 1.25 mm pitch. The right angle surface mount design facilitates compact PCB assembly. Constructed from liquid crystal polymer housing with beige coloration for durability.

Contact parts are made of copper alloy ensuring robust electrical performance. Meets RoHS compliance and VESA standards for LVDS connectors used in LCD and display interfaces. Suitable for high-speed differential transmission applications with 90 to 100-ohm impedance.

Offers solder termination type for secure PCB connections. The FI series is ideal for board-to-cable LVDS applications in industrial and electronic equipment. Provides improved EMI shielding and mechanical retention in versions with latches.

Set comprises a single LVDS connector with 20 contacts and is ready for surface mounting solder applications. This product falls under the LVDS Connectors category within Electronics & Electricals.
