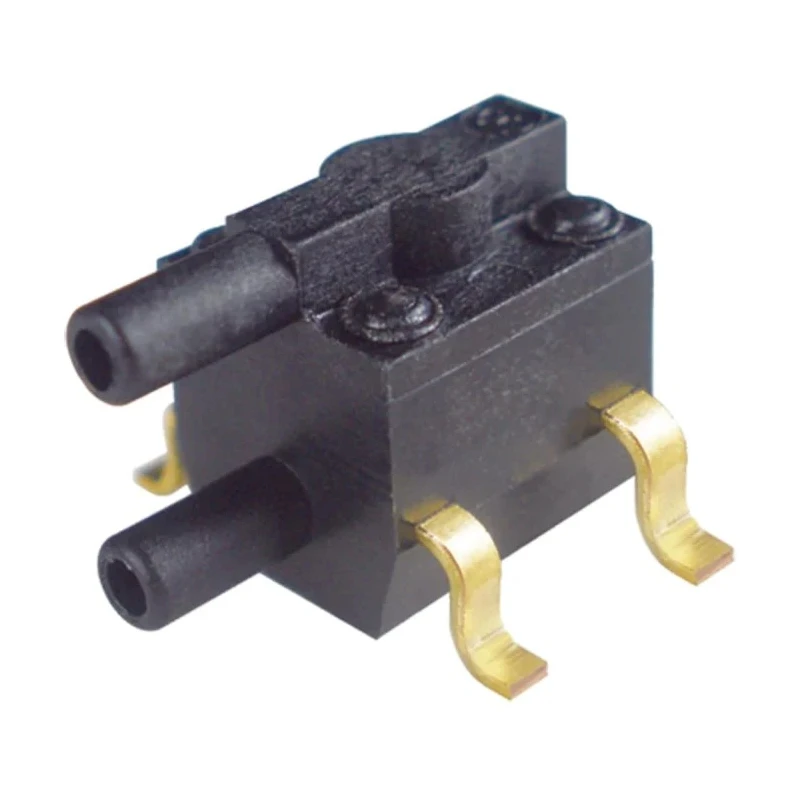

Honeywell Miniature SMT Differential Low Pressure Sensor 4-Pin Surface Mount 2.5V-12V 0-1 psi Accuracy ±0.2% 24PC01SMT

Honeywell 24PC01SMT miniature SMT differential low pressure sensor is designed for surface mount technology applications, featuring a 4-pin package optimized for compact PCB layouts and high-performance sensor integration. Operating across a supply voltage range from 2.5V to 12V, it is engineered to accurately measure low differential pressures up to 1 psi with a remarkable accuracy of ±0.2%.

This sensor supports wet/wet differential sensing, making it suitable for applications involving liquids on both ports, and the barb port type facilitates easy connection in fluidic systems. The device is housed in a compact SMT package measuring 7.7mm in height, 7.1mm in length, and 6.73mm in width, providing designers with versatile mounting options in space constrained designs.

With a maximum overload pressure rating of 20 psi and an operational temperature range from -40°C to 85°C, the 24PC01SMT sensor ensures reliable and durable performance in diverse industrial, electronic, and HVAC applications where precise low pressure measurement is critical.

The product conforms to RoHS requirements and is manufactured according to ISO 9001 quality standards, guaranteeing environmentally responsible production and high reliability. As part of Honeywell's 24PC series, the sensor is uncompensated and unamplified, suitable for integration with external signal conditioning circuits.

Operates on a broad supply voltage range from 2.5V to 12V for flexible power requirements. Offers differential pressure measurement with an accuracy of ±0.2% for precision applications. Compact SMT package minimizes PCB footprint and simplifies assembly processes.

Supports wet/wet sensing capability, enabling usage in fluidic systems with liquid contact. Wide operating temperature range of -40°C to 85°C supports varied environmental conditions. Manufactured in China, complying with RoHS and ISO 9001 standards.

Designed for cost-effective and reliable low-pressure sensing in industrial electronics.

This Honeywell pressure sensor is ideal for electronic component manufacturers, HVAC systems, laboratory instruments, and industrial automation applications that require accurate low differential pressure sensing in a miniature SMT form factor. Browse more precision sensor ICs in the pressure sensor category at EnvMart to find complementary products and technical data sheets.
