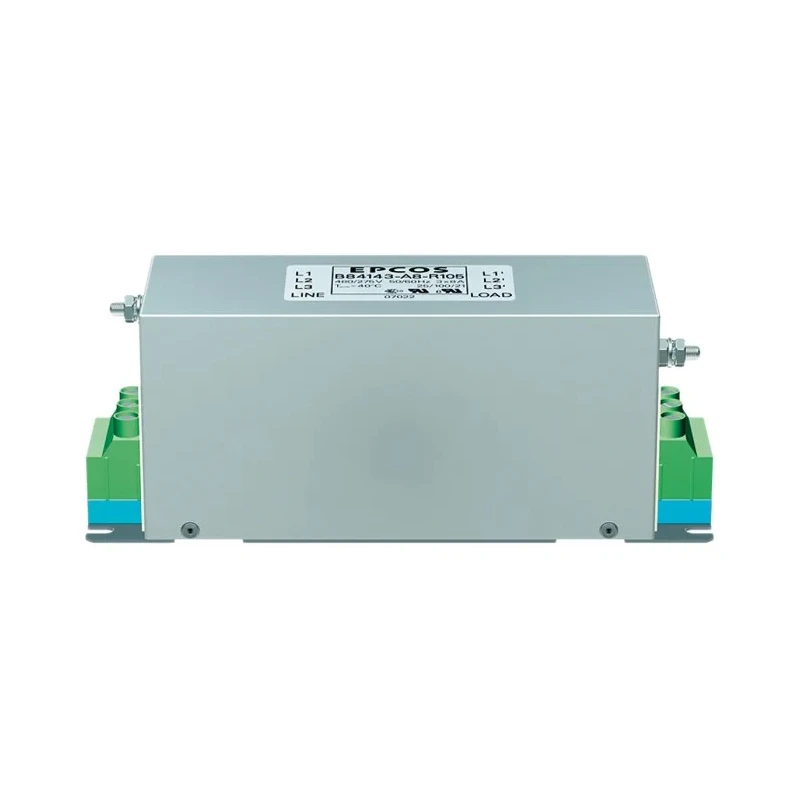

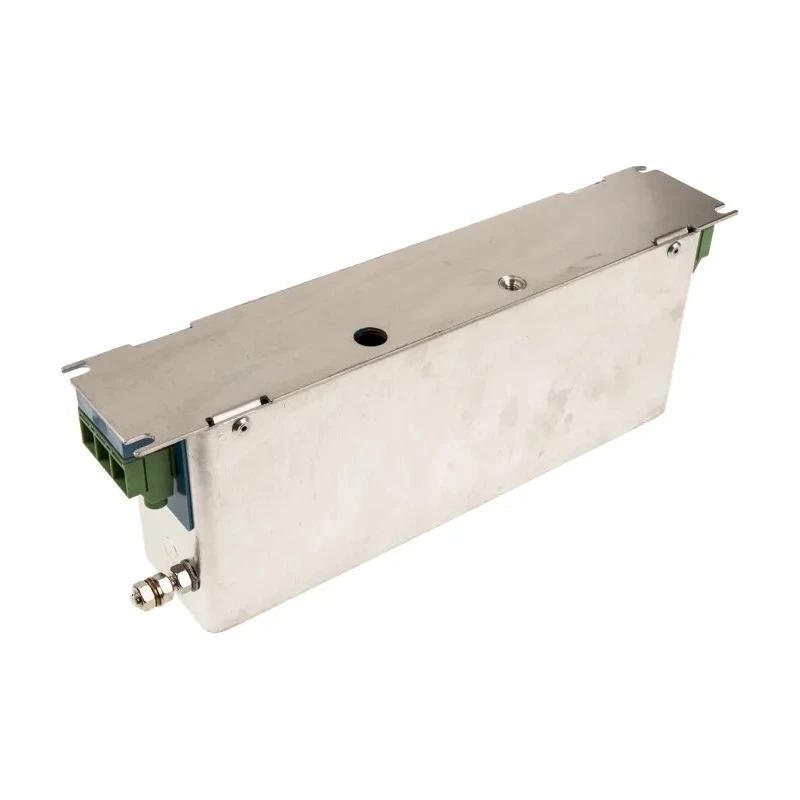

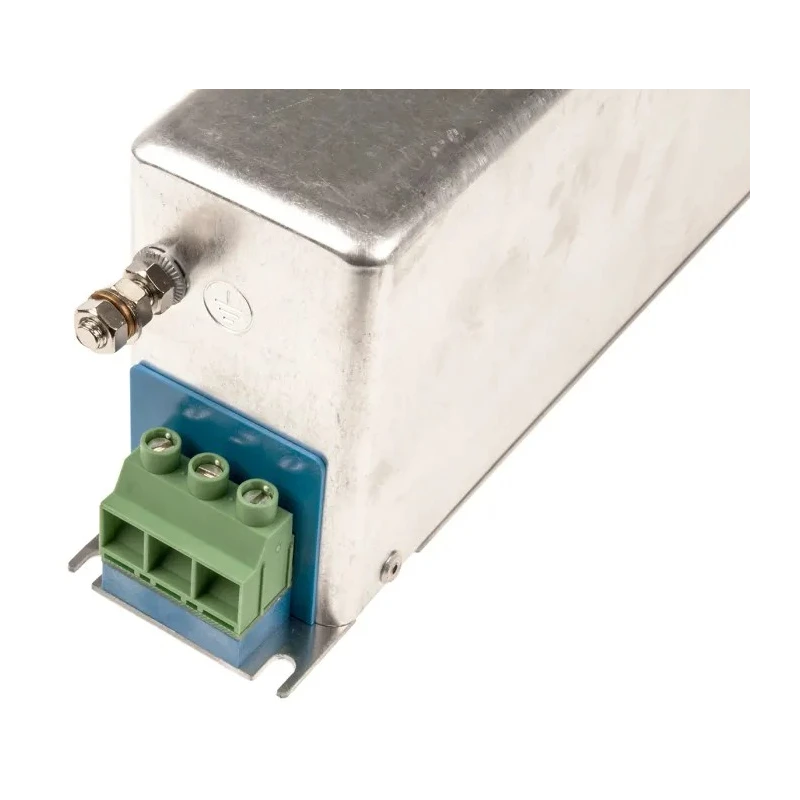

TDK 25 A 520V AC 50Hz, 60 Hz Flange EMC Filter Screw Termination 3 Phase B84143A0025R105
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 83mm |
| Length | 46.4mm |
| Model | B84143A0025R105 |
| Depth | 231mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84143A*R105 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 5mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 3 |
| Leakage Current | 4.7mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL1283 |
| Termination Style | Screw |
| TDK, B84143A 16 A 520V ac 60Hz, Flange EMC Filter, Screw 3 PhaseBrand | TDK |
Key Features
- Supports a maximum current of 25 amperes for robust electrical loads.
- Operates efficiently at voltages up to 520 volts AC.
- Engineered for frequencies of 50 and 60 hertz to suit international standards.
- Features a flange mount type for secure installation.
- Equipped with screw termination for reliable electrical connections.
- Designed for operating temperatures ranging from -25°C to 100°C.
- Leakage current rated at 4.7mA ensures low power loss.
- Complies with UL1283 safety standard for EMC filters.
Product Description
The TDK B84143A0025R105 is a flange-mounted EMC filter designed for three-phase electrical systems operating at 25 A current and 520 V AC voltage with frequencies of 50 and 60 Hz. This filter features screw termination style ensuring secure connections in industrial environments. It is suitable for use in diverse applications including machine tools, conveyor belts, robots, pumps, ventilation systems, and power supply units commonly found in manufacturing, industrial, and commercial settings.
Constructed to operate reliably in temperatures from -25°C up to 100°C, the device offers a low leakage current of 4.7 mA and a minimal resistance of 5 milliohms, reducing power loss and improving efficiency. Its compact dimensions (46.4mm length, 83mm height, and 231mm depth) allow installation in tight spaces with minimal footprint.
This product is certified to UL1283 standards, ensuring compliance with rigorous electromagnetic compatibility (EMC) requirements for noise suppression and interference filtering. Maximum current capacity of 25 A supports robust industrial loads.
Voltage rating of 520 V AC accommodates medium voltage systems. Flange mounting for strong mechanical stability in equipment assemblies. Screw termination style for easy and secure wiring connections. One-stage filter construction optimized for long motor cable runs.
Low leakage current and power loss, suitable for continuous operation. Wide operating temperature capability from -25°C to 100°C. Compact and efficient form factor for space-limited applications. Meets UL1283 safety and performance standards.
Ideal for electrical drives, industrial machinery, pumps, robots, and ventilation equipment.
This TDK EMC filter is made in China and represents a reliable solution for EMC noise reduction in three-phase power systems, enhancing machine reliability and compliance with electromagnetic standards.
Explore more EMC Filters from TDK and other top brands at EnvMart for your industrial and commercial electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 25 amperes.
It operates efficiently at voltages up to 520 volts AC.
This filter is engineered for operating frequencies of 50 and 60 hertz.
The leakage current is rated at 4.7 mA, ensuring low power loss.
The dimensions of this EMC filter are 46.4 mm in length, 83 mm in height, and 231 mm in depth.
It features a flange mount type for secure installation.
This model is equipped with screw termination for reliable electrical connections.
The operating temperature range for this EMC filter is from -25°C to 100°C.
It complies with the UL1283 safety standard for EMC filters.
It is suitable for use in machine tools, conveyor belts, robots, pumps, ventilation systems, and power supply units.
This filter features a one-stage construction optimized for long motor cable runs.
The resistance of this model is 5 milliohms, which helps reduce power loss.
