Epson 20 MHz Surface Mount Crystal Unit ±10 ppm Load Capacitance 10pF TSX-3225 4-Pin 3.2x2.5x0.6 mm X1E000021058112

Free Delivery in India | Lowest Global Shipping Charges

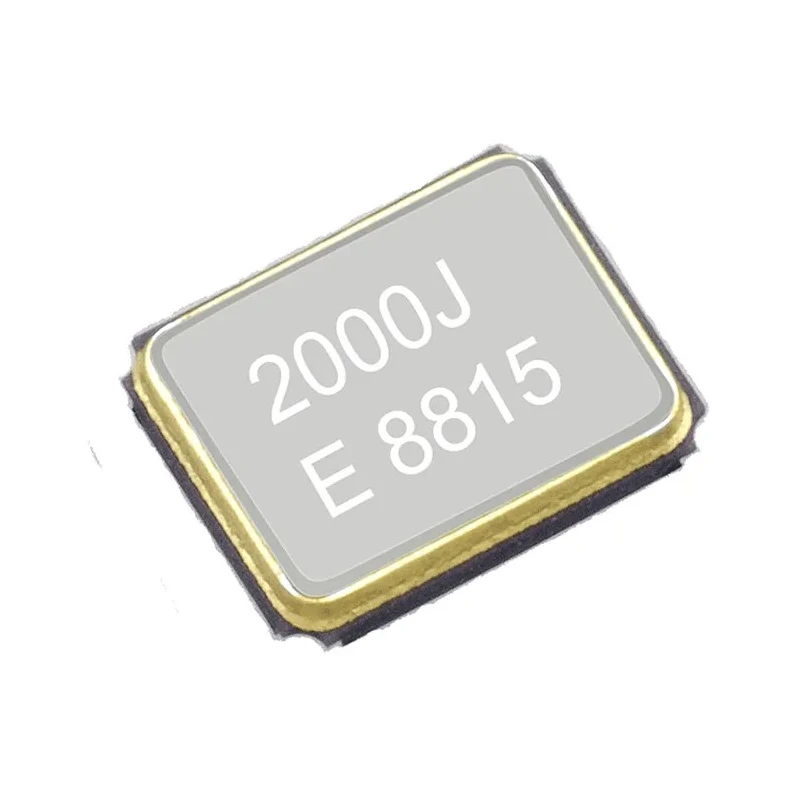

Epson 20 MHz Surface Mount Crystal Unit ±10 ppm Load Capacitance 10pF TSX-3225 4-Pin 3.2x2.5x0.6 mm X1E000021058112

Name: Epson 20 MHz Surface Mount Crystal Unit ±10 ppm Load Capacitance 10pF TSX-3225 4-Pin 3.2x2.5x0.6 mm X1E000021058112
Brand: Epson
SKU: 136077
Price: 2.18 USD
Availability: InStock



Category Crystal Unit Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 48 MHz
Brand	Epson
Height	0.6mm
Length	3.2mm
Model	X1E000021058112
Width	2.5mm
Mount Type	Surface
Series	TSX3225
Maximum Operating Temperature	85°C
Package Type	TSX-3225
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU
External Dimensions	3.2 x 2.5 x 0.6 mm
Standards/Approvals	REACH, RoHS
Pin Count	4
Standard Frequency	20MHz
Load Capacitance	10pF
Series Resistance	60Ω
Overtone order	Fundamental

Key Features

Compact TSX-3225 package with dimensions 3.2 x 2.5 x 0.6 mm offers easy PCB integration.
4-pin configuration suitable for surface mounting applications.
Load capacitance rated at 10pF supports stable oscillation.
Operating temperature range from -40°C to 85°C ensures reliability in various environments.
Series resistance of 60Ω optimizes signal quality and minimizes losses.
Designed for applications including mobile phones, Bluetooth, WLAN ISM band radios, and MPU clocks.
Meets REACH and RoHS standards, ensuring environmental compliance.
Fundamental overtone order enhances signal precision.

Product Description

Epson X1E000021058112 20 MHz Surface Mount Crystal Unit offers robust frequency stability with a tolerance of ±10 ppm, packaged in a low profile TSX-3225 ceramic case measuring 3.2 mm by 2.5 mm by 0.6 mm. This crystal oscillator unit features a 4-pin layout facilitating surface mount PCB assemblies, ideal for compact and precision-critical electronic devices.

Operating across a temperature range of -40°C to 85°C, this component maintains stable oscillation and frequency integrity essential for high-performance electronics. Its load capacitance of 10pF and series resistance of 60Ω are optimized for reduced signal attenuation and enhanced timing accuracy.

This crystal unit is well-suited to industrial, communications, and consumer electronic applications, including mobile phone modules, Bluetooth devices, WLAN ISM band radios, and microprocessor unit (MPU) clock circuits. Compliance with REACH and RoHS directives ensures environmental and safety conformity.

Compact TSX-3225 ceramic package for surface mounting. Standard frequency: 20 MHz with ±10 ppm tolerance. Load capacitance: 10 pF for stable oscillation. Wide operating temperature range (-40 to 85°C). Series resistance: 60Ω for signal optimization.

Fundamental overtone order enhances precision. Applicable in mobile, Bluetooth, WLAN, and MPU clock systems. Compliant with REACH and RoHS standards.

This Crystal Unit is integral to precision timing circuits across multiple industrial and communications applications, supporting electronics manufacturing, telecom equipment, and embedded systems. Explore more Epson electronic components on EnvMart for reliable and high-quality solutions.
