Epson 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.7 mm Height 3.2 mm Length 2.5 mm Width Q22FA2380019411

Name: Epson 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.7 mm Height 3.2 mm Length 2.5 mm Width Q22FA2380019411
Brand: Epson
SKU: 205044
Price: 5.16 USD
Availability: InStock



Category Crystal Units Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 60 MHz
Brand	Epson
Height	0.7mm
Length	3.2mm
Model	Q22FA2380019411
Width	2.5mm
Mount Type	Surface
Series	FA-238
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU

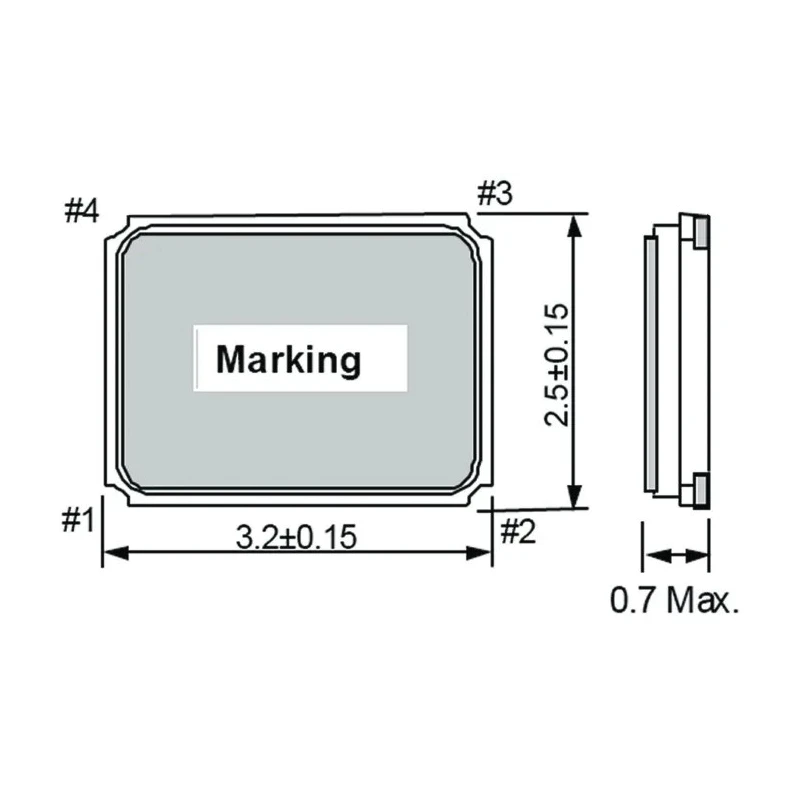

External Dimensions	3.2 x 2.5 x 0.7 mm
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	25MHz
Load Capacitance	12pF
Series Resistance	50Ω
Overtone order	Fundamental

Key Features

Operates at a standard frequency of 25 MHz.
Surface mount type designed for PCB integration.
Load capacitance of 12 pF ensures stable oscillation.
Compact external dimensions of 3.2 x 2.5 x 0.7 mm.
Operates within a temperature range of -40°C to 85°C.
Series resistance is 50 Ω for electrical performance consistency.
Overtone order is fundamental for frequency accuracy.
Suitable for applications including mobile phones, Bluetooth, and W-LAN ISM band radios.

Product Description

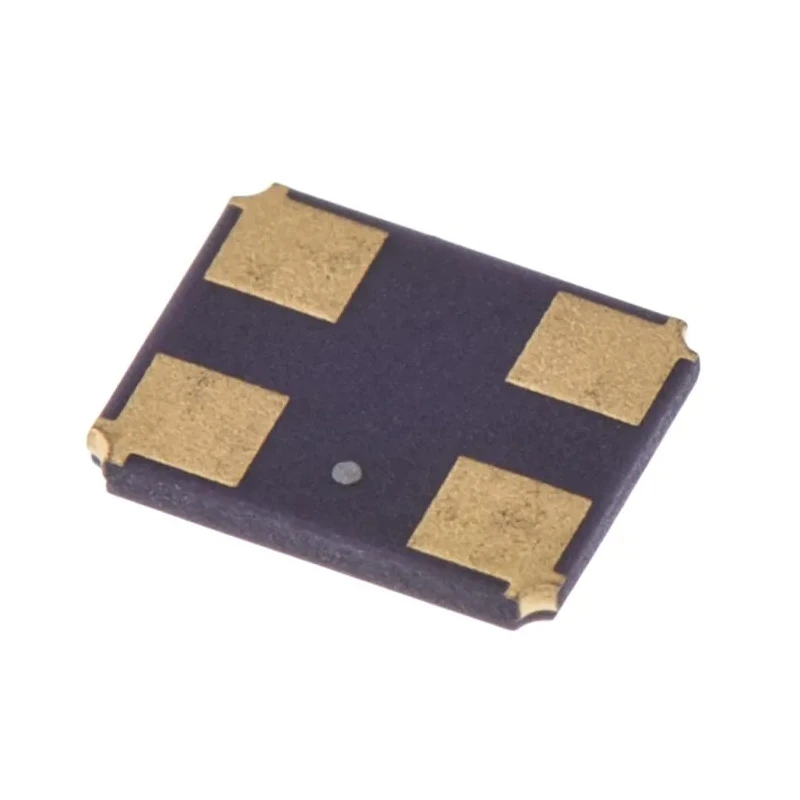

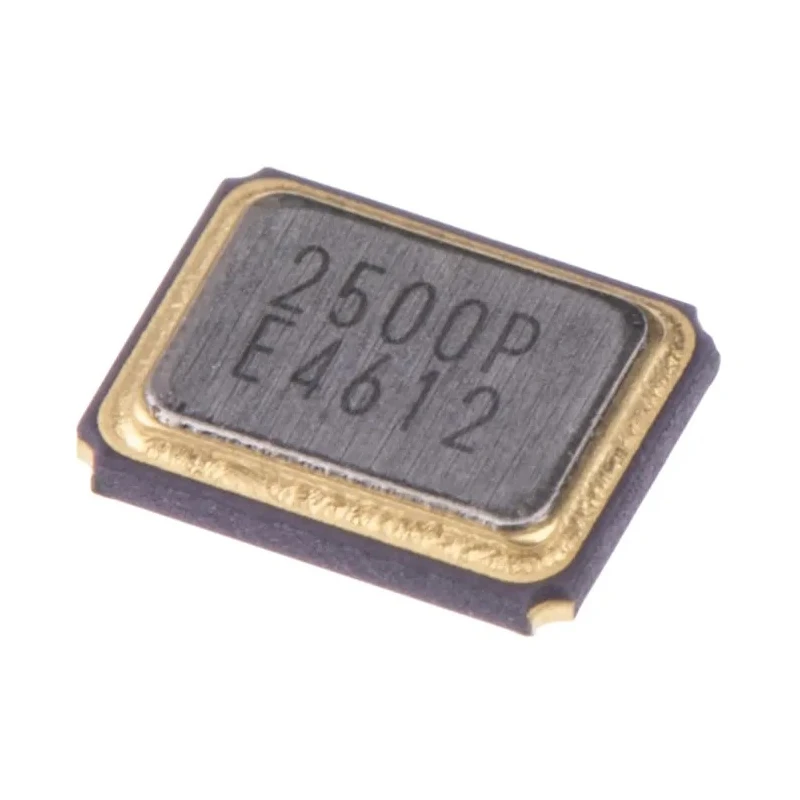

Epson Q22FA2380019411 is a 25 MHz miniature surface mount crystal unit designed for electronic applications requiring precise frequency control. It features a low-profile ceramic package with dimensions 3.2 mm (length) x 2.5 mm (width) x 0.7 mm (height), making it ideal for space-constrained PCB assemblies.

This crystal operates at a fundamental overtone order, delivering a stable frequency output with a tolerance of ±50 ppm and frequency stability of ±30 ppm. The 12 pF load capacitance and series resistance of 50 Ω ensure optimal oscillation performance.

Designed to function reliably within a wide temperature range of -40°C to 85°C, it is RoHS compliant and well-suited for high-frequency applications including mobile phones, Bluetooth devices, W-LAN ISM band radios, and MPU clock references.

The 4-pin surface mount configuration facilitates efficient PCB mounting and manufacturing processes. The FA-238 series is recognized for its miniature size and consistent frequency characteristics.

Operates at a standard frequency of 25 MHz. Surface mount design with 4 pins for secure PCB assembly. Compact ceramic package with low profile dimensions. Frequency tolerance ±50 ppm ensures precision. Operating temperature range from -40°C to 85°C.

Series resistance is 50 Ω for stable performance. Load capacitance fixed at 12 pF for reliable oscillation. Overtone order is fundamental for accurate frequency output. Applications in mobile communications and wireless networks.

Compliant with RoHS directives for environmental safety.

For industrial, telecommunications, and consumer electronics manufacturing requiring stable crystal oscillators, this Epson 25 MHz FA-238 series crystal offers an optimal solution.
