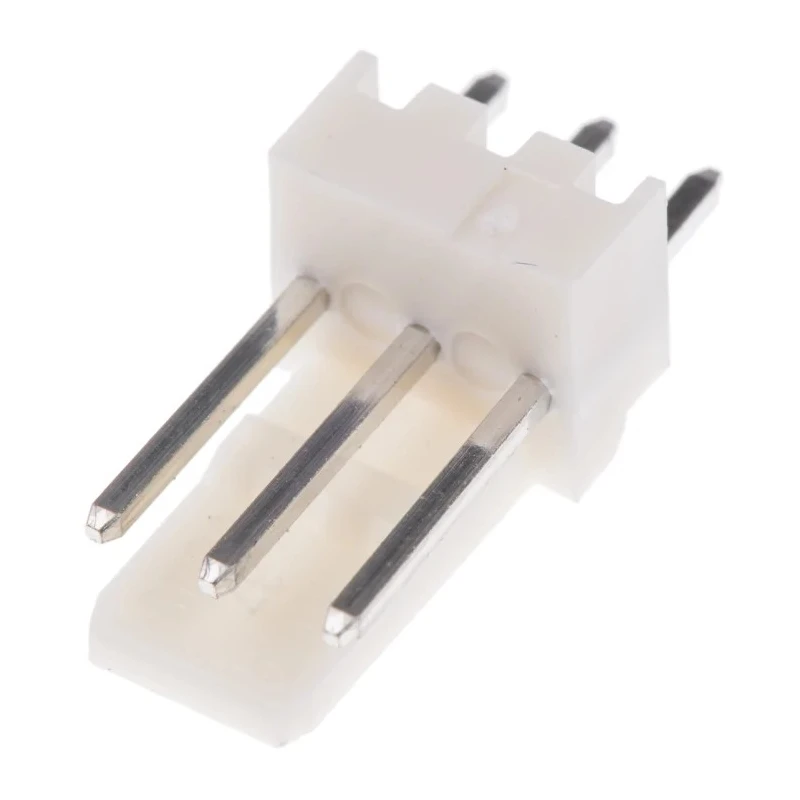

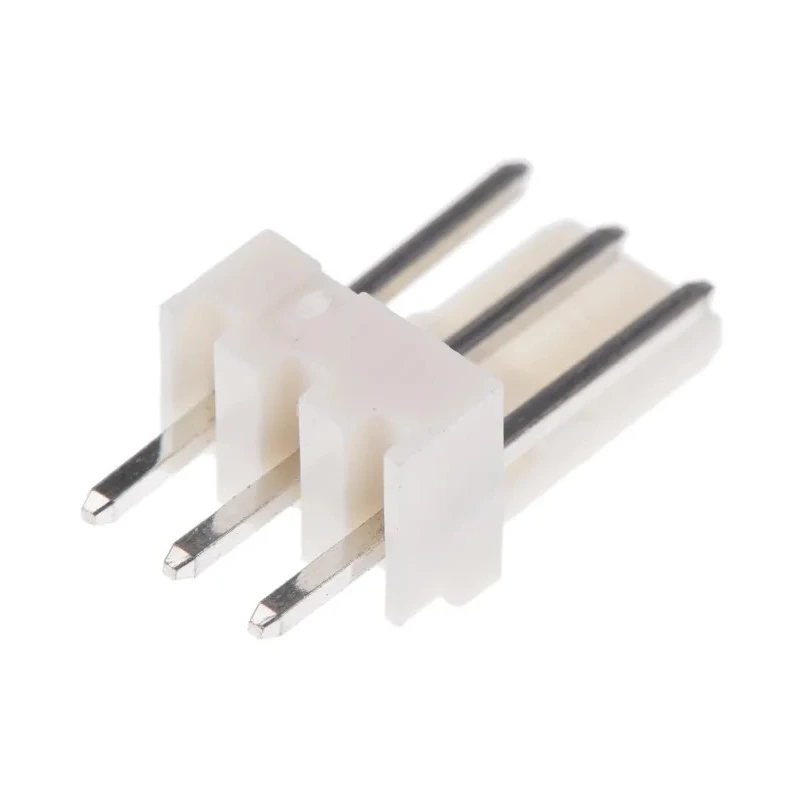

Molex Mini-Latch Series Straight Through Hole Pin Header 3 Contacts 2.5 mm Pitch 1 Row Shrouded 22-04-1031

Name: Molex Mini-Latch Series Straight Through Hole Pin Header 3 Contacts 2.5 mm Pitch 1 Row Shrouded 22-04-1031
Brand: Molex
SKU: 212000
Price: 0.93 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Latch
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with nylon housing for durability and insulation.
The brass contacts are plated with tin for corrosion resistance.
Rated for 3A current and 250V operating voltage.
Designed with a friction locking ramp to ensure secure mating connections.
Operates reliably within a temperature range of -40°C to 105°C.
Supports solder termination through hole mounting for PCB integration.
Compatible with Mini-Latch 51191 series and KK series 5051 crimp housings.
Available in straight orientation with a single row layout for flexible design applications.

Product Description

The Molex 22-04-1031 Mini-Latch Series Straight Through Hole Pin Header is a specialized 3-contact, 2.5 mm pitch, 1-row shrouded male connector designed for robust wire-to-board applications. Constructed with a durable nylon housing and brass contacts plated with tin, it delivers reliable electrical connections rated for 3 amperes at 250 volts. The friction locking ramp mechanism ensures secure mated connections, improving assembly integrity in industrial and commercial electronics.

Operating efficiently within a wide temperature range from -40°C to 105°C, this connector supports standard through hole solder termination, facilitating easy mounting on printed circuit boards. Designed for vertical straight orientation, this Mini-Latch header fits with corresponding Mini-Latch 51191 series and KK series 5051 crimp housings, offering excellent design flexibility.

Applications range across electronic components such as vehicles, telecommunications equipment like fax machines and printers, PC monitors, and data communication centers where a reliable and secure wire-to-board connection is critical.

Durable nylon housing offers insulation and mechanical strength. Brass contacts with tin plating ensure corrosion resistance and reliable conductivity. The 2.5 mm pitch spacing aligns with industry standard Mini-Latch connectors.

Friction ramp locking guarantees secure connector mating during operation. Robust performance over wide temperature and voltage ranges. Compatible with various Mini-Latch series crimp housings for expanded versatility. Straight orientation and single row layout support diverse PCB designs.

Ideal for automotive, communication, and general electronic applications. This product is a new Molex PCB header connector available for design and manufacturing use. Explore more PCB connectors from our catalog to complement your electronic projects.
