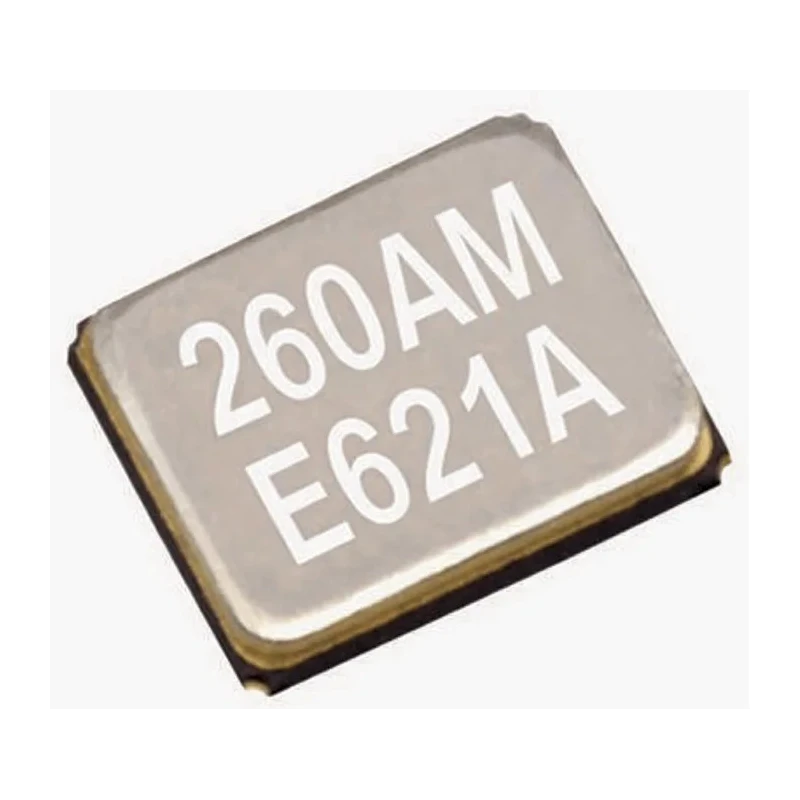

Epson 16 MHz Surface Mount Crystal 4-Pin 0.55 mm Height 2.5 x 2 mm FA-20H Series Q24FA20H0004411
Specifications
| Country of Origin | India |
|---|---|
| Brand | Epson |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | Q24FA20H0004411 |
| Width | 2mm |
| Mount Type | Surface |
| Series | FA-20H |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |

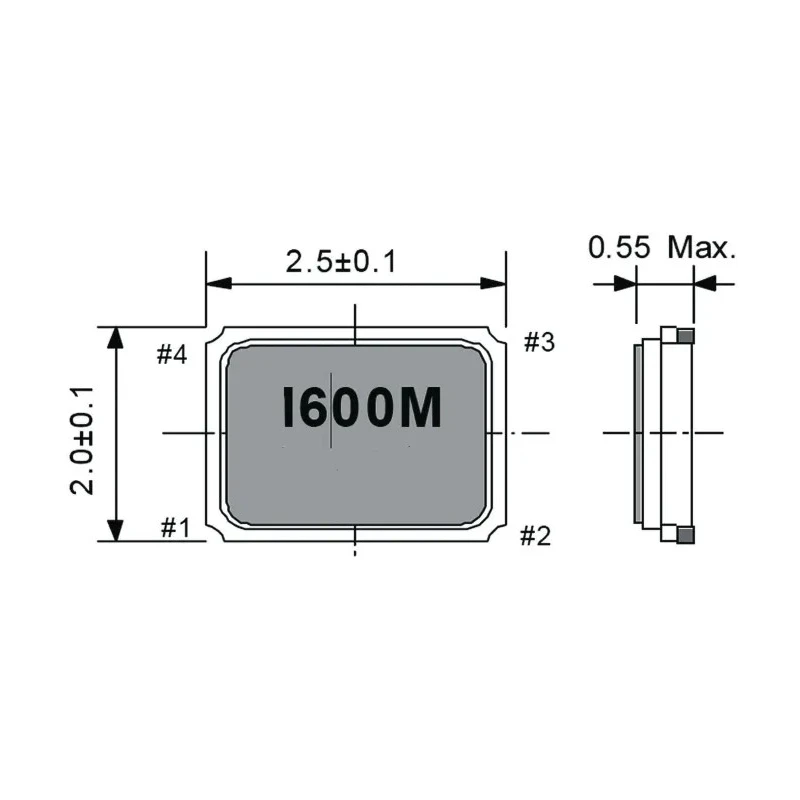

| External Dimensions | 2.5 x 2.0 x 0.55 mm |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 9pF |
| Series Resistance | 80Ω |
| Overtone order | Fundamental |
| Nominal frequency range | 12 MHz to 48 MHz |
Key Features
- Operates at a standard frequency of 16 MHz with ±10 to ±30 ppm tolerance.
- Packaged in a low profile 2.5 x 2.0 x 0.55 mm surface mount ceramic case.
- Features a load capacitance of 9pF suitable for stable oscillation.
- Designed for fundamental overtone order ensuring signal integrity.
- Has a series resistance of 80Ω for optimized performance in oscillators.
- Operates reliably between temperatures of -40°C to 85°C.
- Ideal for applications including mobile phones, Bluetooth, WLAN, ISM band radio, and MPU clocks.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Epson Q24FA20H0004411 is a high-precision 16 MHz surface mount crystal from the FA-20H series with a compact and low profile design measuring 2.5 x 2.0 x 0.55 mm. Featuring a 4-pin configuration, this crystal unit ensures stable frequency control, fundamental overtone operation, and low series resistance of 80Ω suitable for sensitive electronic applications.
This miniature SMD crystal is engineered to operate within a temperature range of -40°C to 85°C, making it highly reliable under various industrial and commercial conditions. It has a load capacitance of 9pF providing stable oscillation characteristics essential for communication devices.
The Q24FA20H0004411 is optimized for devices such as mobile phones, Bluetooth modules, WLAN, ISM band radios, and microprocessor clocks. Its surface mount design allows efficient use in compact circuit boards and automated assembly processes.
Compliant with RoHS directives, the unit supports environmentally responsible manufacturing without hazardous substances. Its ceramic case provides durability while maintaining ultra-miniature dimensions to fit space-constrained electronic designs.
Standard frequency: 16 MHz with ±10 to ±30 ppm tolerance. Package dimensions: 2.5 x 2.0 x 0.55 mm surface mount ceramic case. Pin count: 4 pins for reliable PCB mounting. Load capacitance: 9pF for signal stability. Series resistance: 80Ω for optimized oscillator performance.
Operating temperature range: -40°C to 85°C ensuring durability. Overtone order: Fundamental operation providing accuracy. RoHS compliant for environmental safety.
This product is ideal for industrial electronics, telecommunications, consumer electronics, and embedded systems requiring precise timing elements. Explore more electronic components and Crystal Units at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 16 MHz with a tolerance of ±10 to ±30 ppm.
This crystal unit has external dimensions of 2.5 x 2.0 x 0.55 mm.
It features a load capacitance of 9pF, which is suitable for stable oscillation.
The series resistance is 80Ω, optimizing performance in oscillators.
It operates reliably within a temperature range of -40°C to 85°C.
This model has a 4-pin configuration for reliable PCB mounting.
It is designed for surface mounting, making it suitable for compact circuit boards.
The crystal operates on a fundamental overtone order, ensuring signal integrity.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is ideal for applications such as mobile phones, Bluetooth, WLAN, ISM band radios, and MPU clocks.
The nominal frequency range for this crystal unit is from 12 MHz to 48 MHz.
The country of origin for this product is India.
