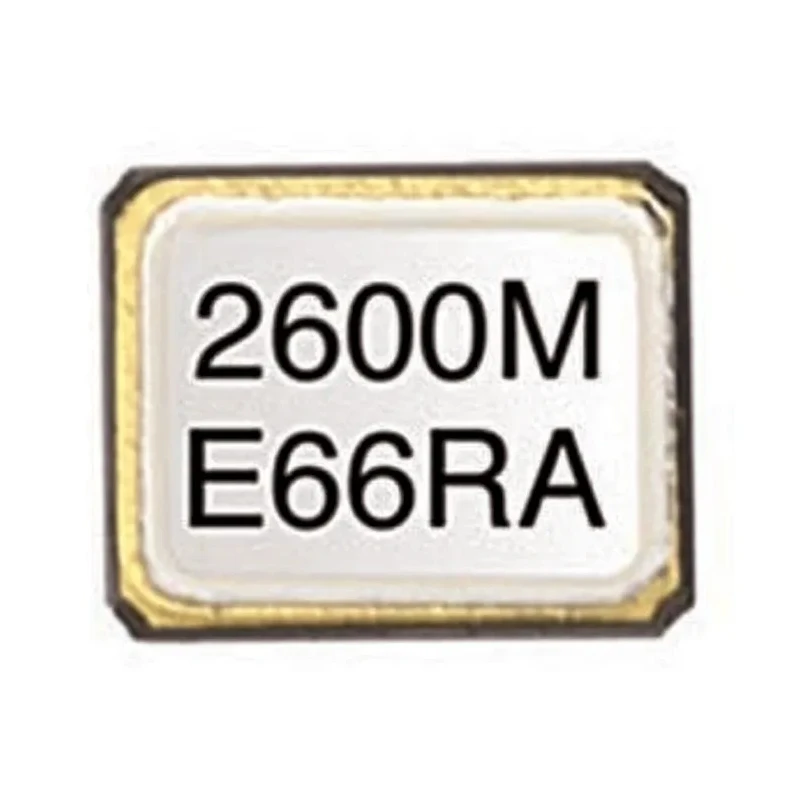

Epson 24 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.5 mm Height 2 mm Length 1.6 mm Width Q22FA1280002212

Epson Q22FA1280002212 is a 24 MHz crystal unit designed for surface mount applications, featuring a 4-pin configuration and compact dimensions of 2 mm length, 1.6 mm width, and 0.5 mm height. It operates with a frequency tolerance and stability of ±10 ppm, making it highly reliable for precision timing applications in electronic circuits.

Engineered to operate effectively within a temperature range of -40°C to 85°C, this crystal ensures stable performance even in harsh industrial environments. The load capacitance of 10 pF and series resistance of 80 Ω are optimized for integration into modern oscillators and resonators.

This surface mount crystal complies with RoHS standards, making it suitable for environmentally conscious manufacturing and use in diverse electronics fields. The compact ceramic case enhances durability and ease of mounting on printed circuit boards.

The 4-pin layout facilitates straightforward PCB placement and soldering for automated assembly processes. While not qualified for automotive standards, the FA-128 series is ideal for general industrial, laboratory instrumentation, communication devices, and consumer electronics requiring high-precision frequency control.

Applications include timing elements in microcontrollers, oscillators in communication equipment, and frequency references in industrial automation systems. This product supports efficient production with reel packaging that allows for automated insertion into manufacturing lines.

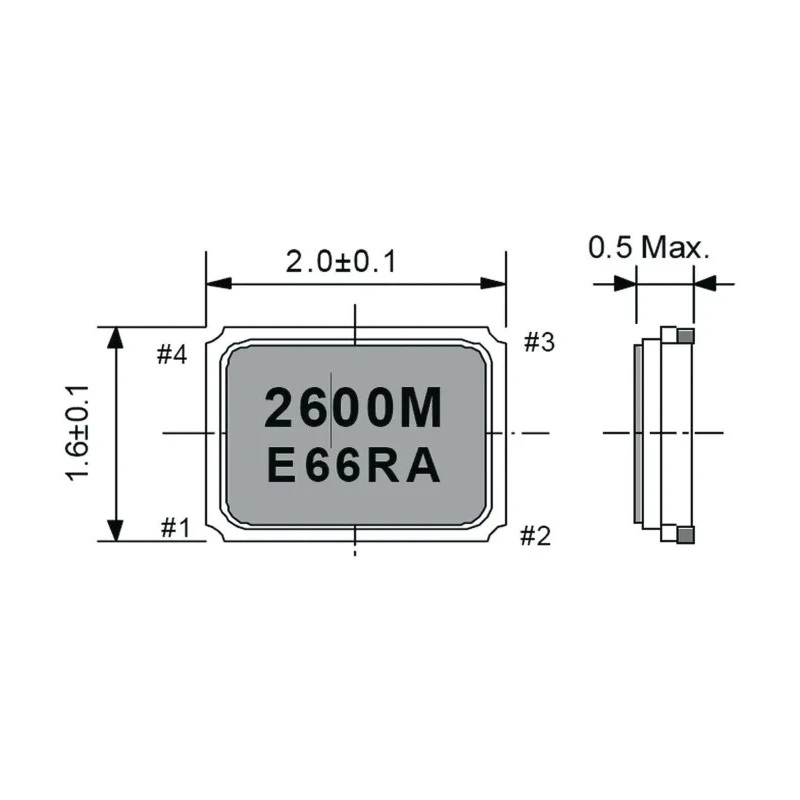

This crystal unit operates at a standard frequency of 24 MHz with a precise frequency tolerance of ±10 ppm. Features a surface mount package with 4 pins suitable for PCB assembly and compact device integration. Its physical dimensions include a length of 2 mm, width of 1.6 mm, and height of 0.5 mm for minimal footprint.

Designed for operation across temperatures from -40°C to 85°C, ensuring stability in diverse environments. The load capacitance is specified at 10 pF, supporting stable oscillation circuits. Series resistance is rated at 80 Ω, contributing to efficient electronic performance.

The component complies with RoHS standards, confirming its environmentally friendly manufacturing. The FA-128 series crystal is not rated for automotive standards but suits general industrial electronic applications. Browse more Crystal Units and electronic components at EnvMart to find suitable parts for your industrial and commercial projects.
