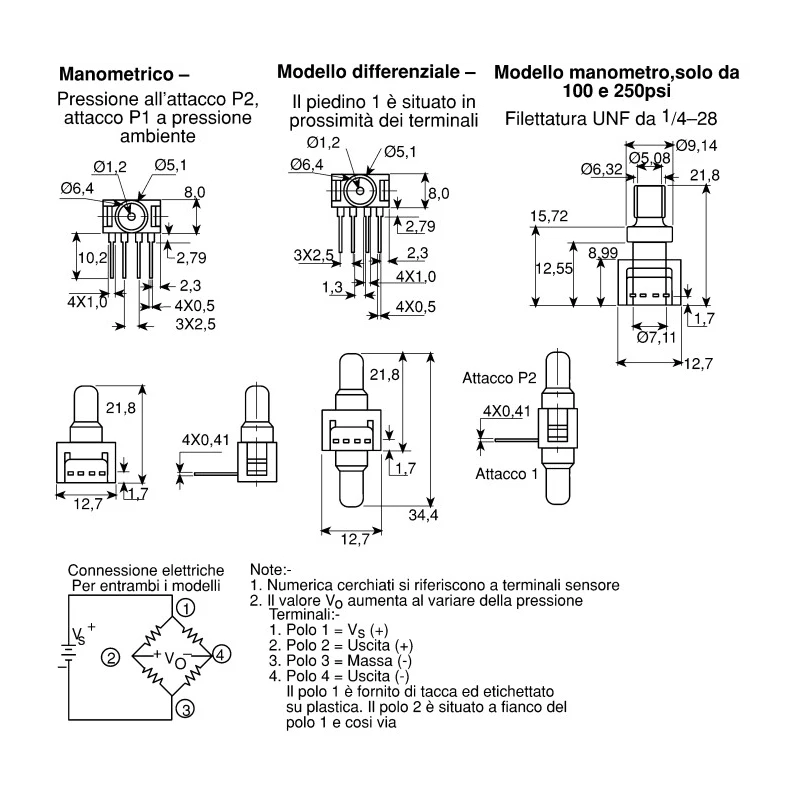

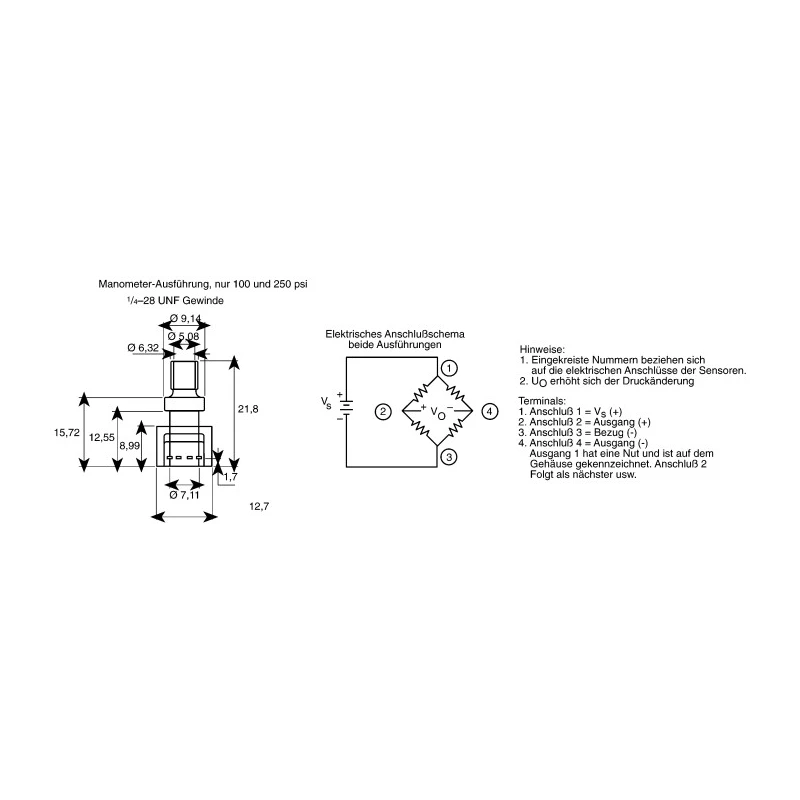

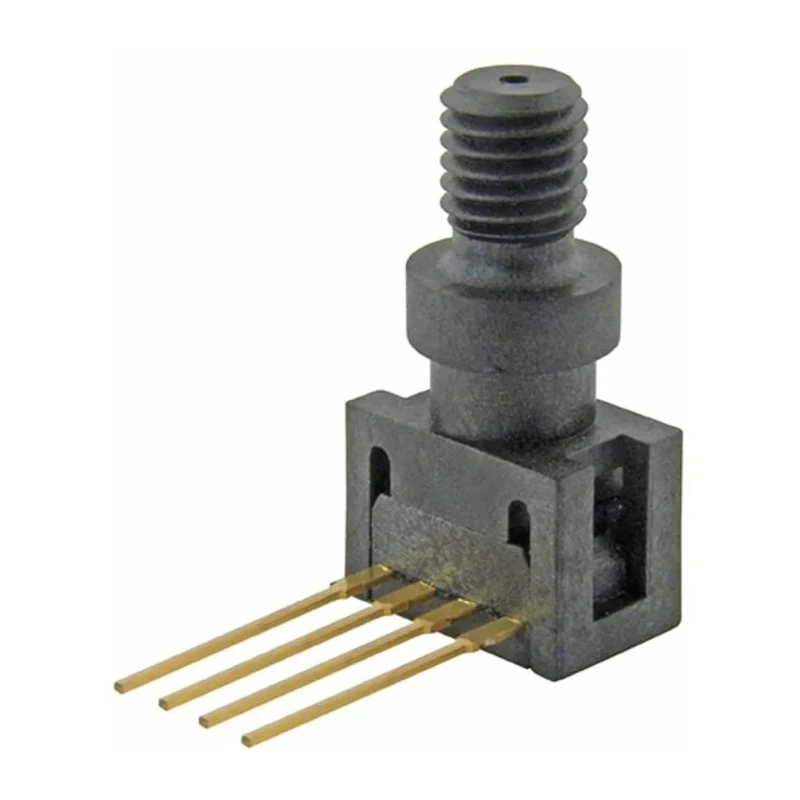

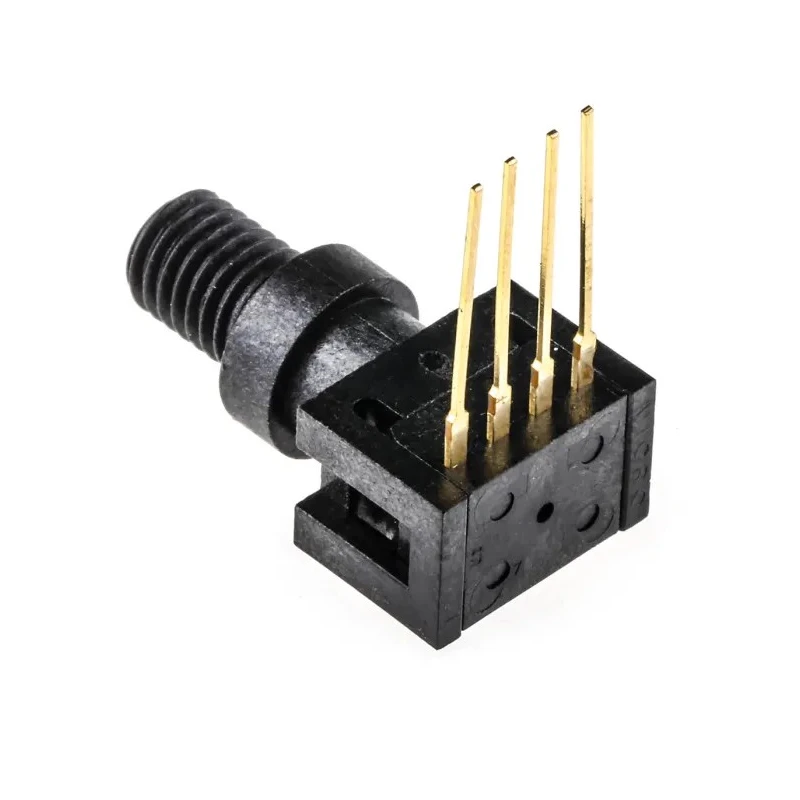

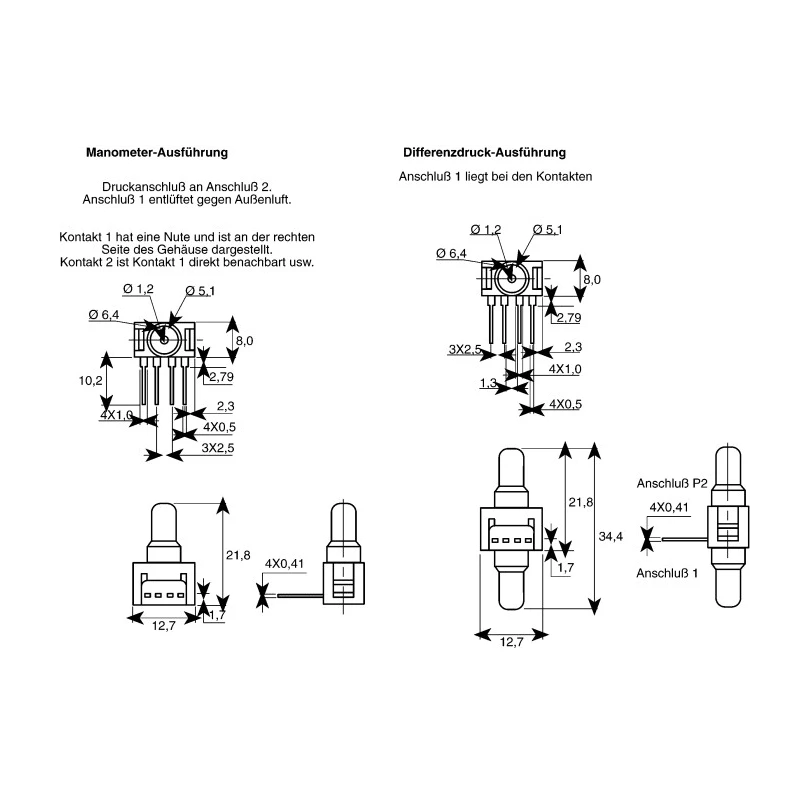

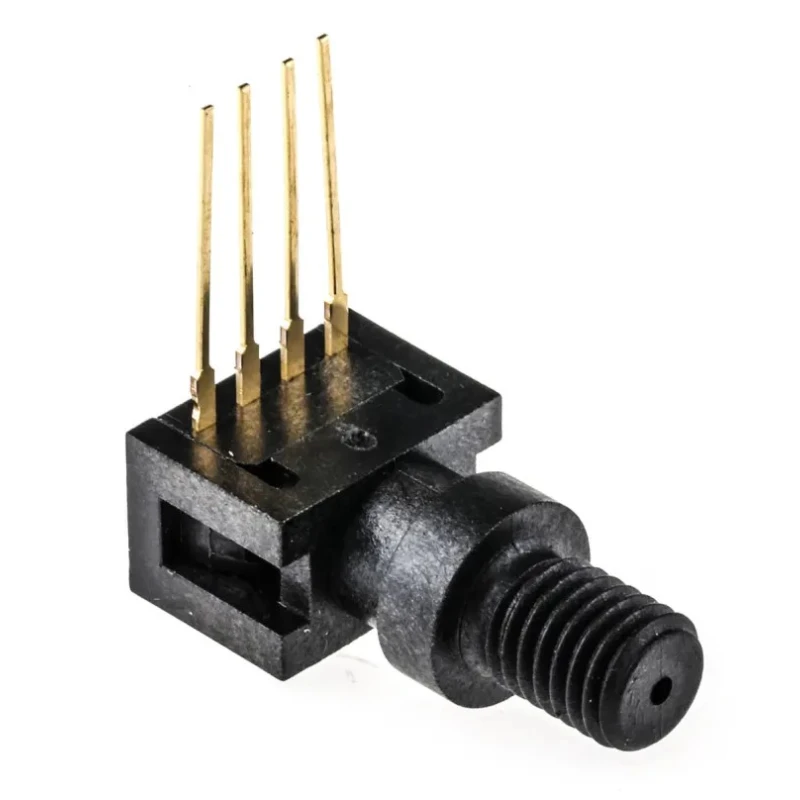

Honeywell Technologies 24PC Series Pressure Sensor Wheatstone Bridge Output, 0 psi to 250 psi, Relative, 2.5V 24PCGFM6G

Honeywell Technologies 24PCGFM6G is a 24PC Series Pressure Sensor featuring Wheatstone Bridge output, designed for relative pressure measurements ranging from 0 psi to 250 psi with an accuracy of ±0.2%. This miniature surface mount technology (SMT) sensor delivers a compact form factor suitable for reduced PCB sizes while maintaining high reliability.

The sensor supports wet/wet differential sensing, making it versatile for measuring pressures in various media including water, oxygen, and nitrogen. It operates over a temperature range of -40°C to 85°C, ensuring dependable performance in a wide array of industrial, laboratory, and automotive control applications.

These sensors are unamplified and uncompensated, allowing integrators to customize signal conditioning. Their Wheatstone Bridge output provides a stable electrical signal compatible with many electronics systems. The sensor requires a minimum supply voltage of 2.5V and can operate up to 12V, with a rapid response time of 1ms suitable for dynamic pressure monitoring.

Manufactured under ISO certification and compliant with RoHS directives, this sensor ensures adherence to environmental and quality standards. The compact SMT package enables easy board mounting alongside other SMT devices, streamlining production and minimizing secondary mounting steps.

Compact surface mount technology design reduces PCB footprint. Wet/wet differential sensing capability for versatile media measurement. Uncompensated and unamplified sensor allows flexible signal processing. High precision with ±0.2% accuracy.

Wide operating temperature range from -40°C to 85°C. Compatible with water, oxygen, and nitrogen media. Wheatstone Bridge electrical output for reliable pressure reading. Minimum supply voltage 2.5V, maximum 12V. Fast 1 millisecond response time.

RoHS and ISO compliant for quality assurance.

This sensor is ideal for integration in industrial instrumentation, laboratory equipment, HVAC controls, and environmental monitoring systems. It supports applications where precise, reliable pressure measurement with a compact footprint is critical.
