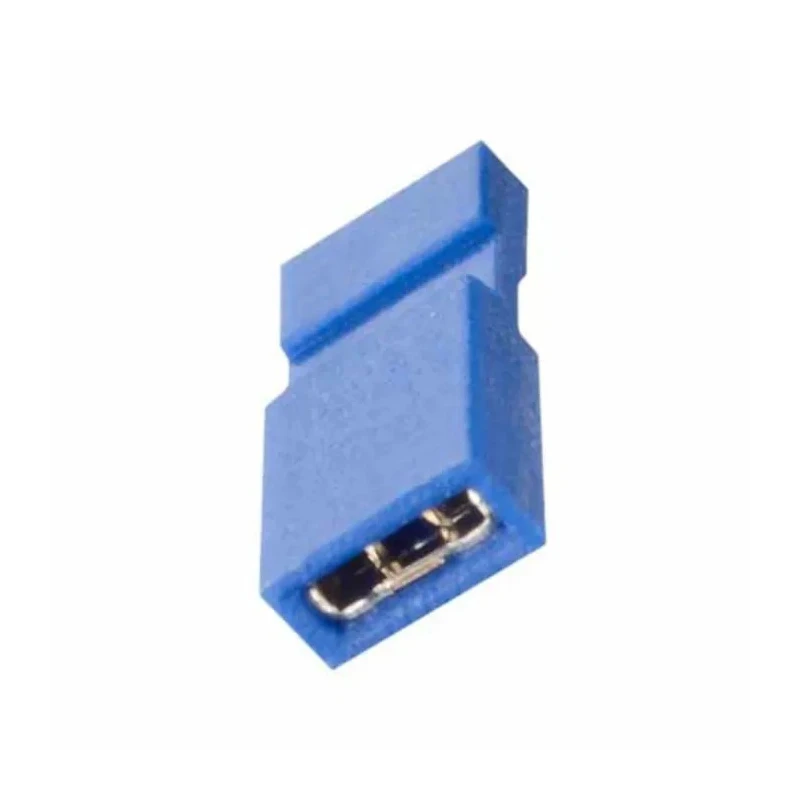

HARWIN Jumper Straight Female Blue Jumper Socket 2 Way 1 Row 1.27 mm Pitch M50-2030005

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Jumper Straight Female Blue Jumper Socket 2 Way 1 Row 1.27 mm Pitch M50-2030005

Name: HARWIN Jumper Straight Female Blue Jumper Socket 2 Way 1 Row 1.27 mm Pitch M50-2030005
Brand: HARWIN
SKU: 217257
Price: 0.28 USD
Availability: InStock



Category Jumpers & Shunts Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	HARWIN
Colour	Blue
Orientation	Straight
Current	1A
Length	2.5mm
Model	M50-2030005
Depth	5.5mm
Width	1.25mm
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	M50
Sub Type	Jumper Socket
Number of Rows	1
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ

Key Features

The jumper socket features a straight orientation with a blue polybutylene terephthalate housing.
It includes 2 female contacts plated with gold for enhanced conductivity.
The pitch between contacts is precisely 1.27 mm, suitable for compact PCB designs.
Durable copper alloy contact material ensures low contact resistance up to 20 milliohms.
Designed for high reliability with up to 300 operations and gold finish contacts.
Compact dimensions of length 2.5 mm, width 1.25 mm, and depth 5.5 mm allow space-efficient integration.
Manufactured in Taiwan, Province Of China, ensuring quality in connector production.

Product Description

HARWIN M50-2030005 is a high-quality jumper socket designed for electronic components requiring compact and reliable PCB connections. Featuring a straight, female connector type with a discrete 2-way, single-row configuration, this socket supports precise pitch spacing of 1.27 mm, making it ideal for dense circuit board layouts.

The jumper socket's housing material is polybutylene terephthalate, chosen for its durability and electrical insulating properties. It comes in a distinctive blue color to facilitate easy identification on assemblies.

Its copper alloy contacts plated with gold ensure considerably low electrical contact resistance, quoted at a maximum of 20 milliohms, optimizing signal integrity. Rated for a voltage of 500V and a current capacity of 1A, this jumper socket suits a broad range of electrical and electronic devices.

The compact size dimensions - 2.5 mm length, 1.25 mm width, and 5.5 mm depth - enable seamless use in space-restricted PCB designs. This component also offers a closed top with a handle jumper socket design for secure and easy placement.

Manufactured in Taiwan, Province Of China, the M50-2030005 model upholds high standards of quality and durability, providing reliable multi-usage with up to 300 operation cycles. The jumper socket is a preferred choice for electronic manufacturing, assembly, and prototyping applications in the electronics and electrical industries.

Its high-reliability performance and precise engineering make it suitable for commercial and industrial PCB connector needs. The product supports alternative programming methods to DIP switches, enhancing design flexibility.
