Bosch Rexroth 90° Connector Connecting Component for MGE Series Strut Profiles 40 mm to 60 mm 3842 535 466

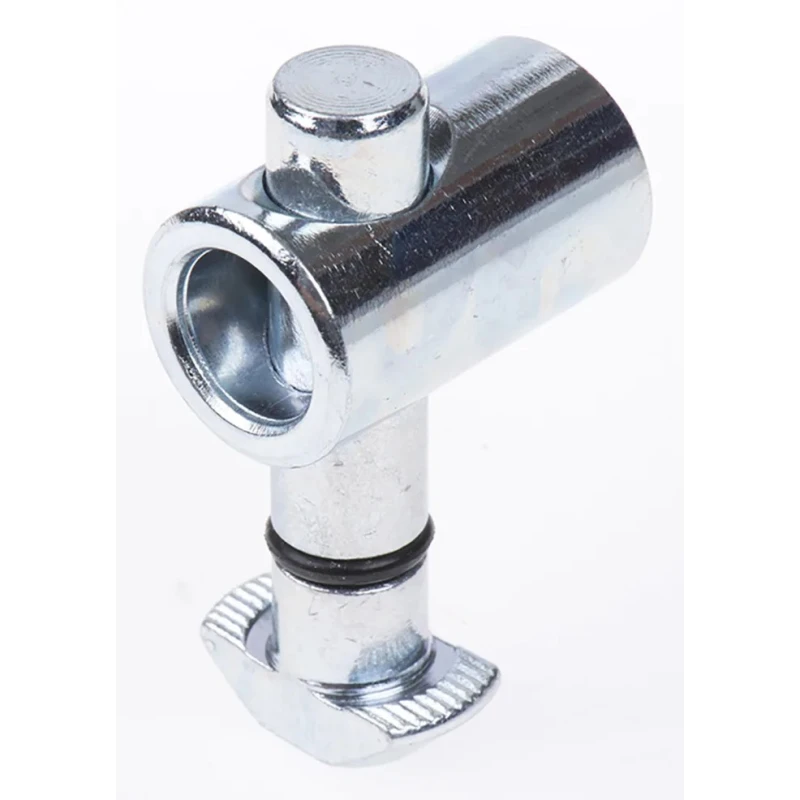

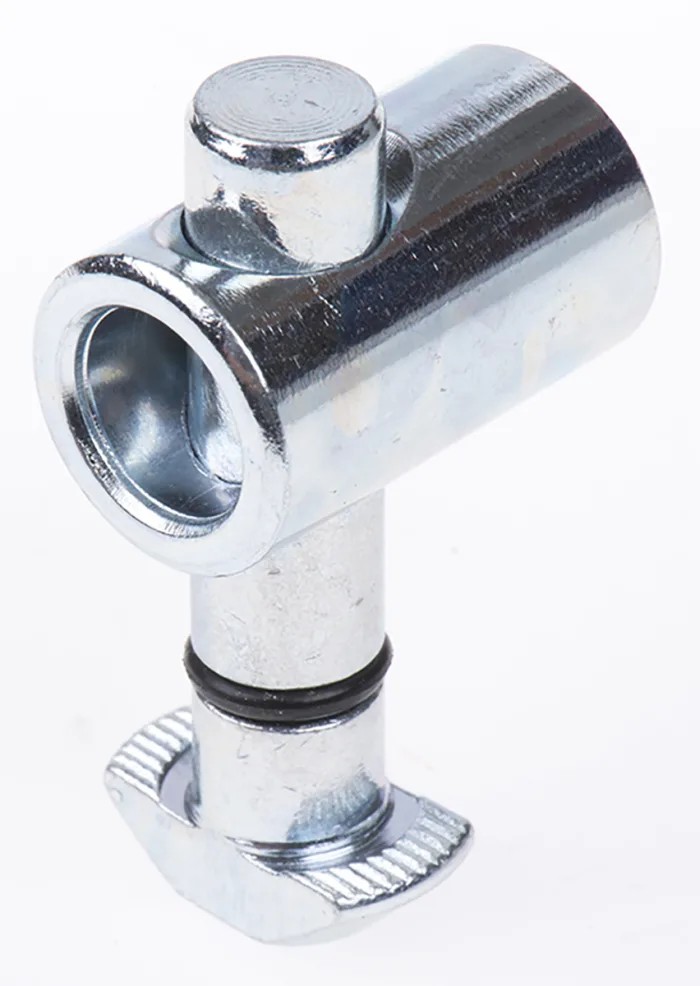

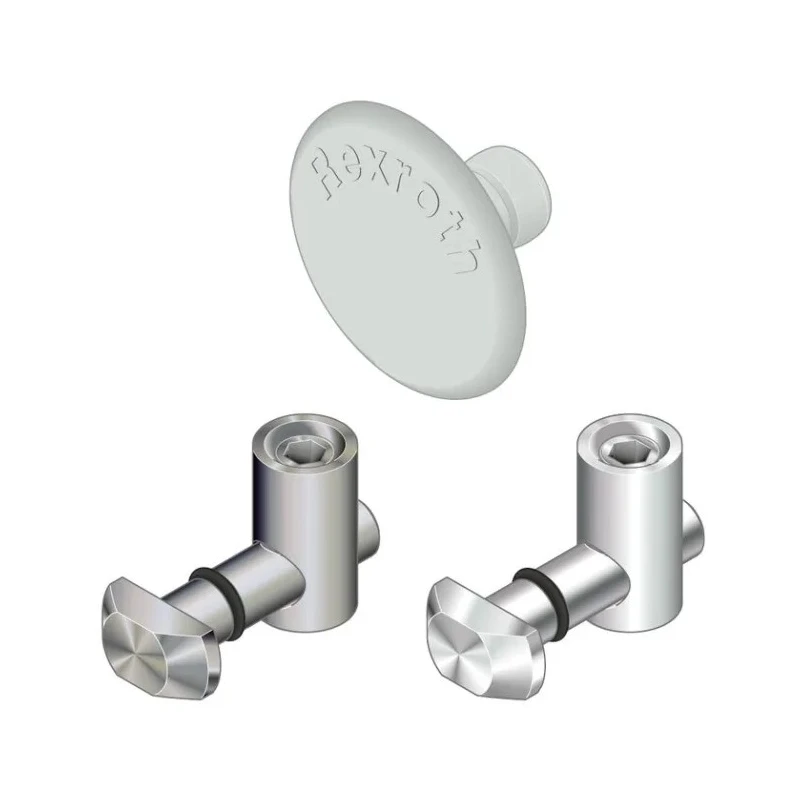

Bosch Rexroth 3842 535 466 90° Connector Connecting Component is engineered for durable right-angle connections in industrial structural frameworks. Built for MGE series aluminum strut profiles, it fits profile widths of 40 mm, 45 mm, 50 mm, and 60 mm with a compatible 10 mm groove size, making it adaptable for a wide range of applications.

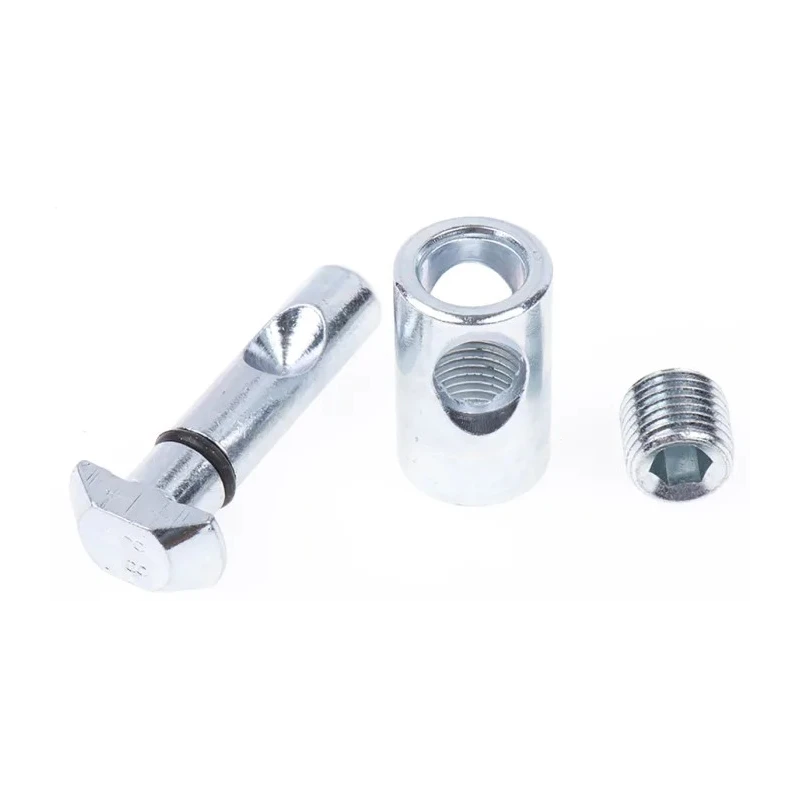

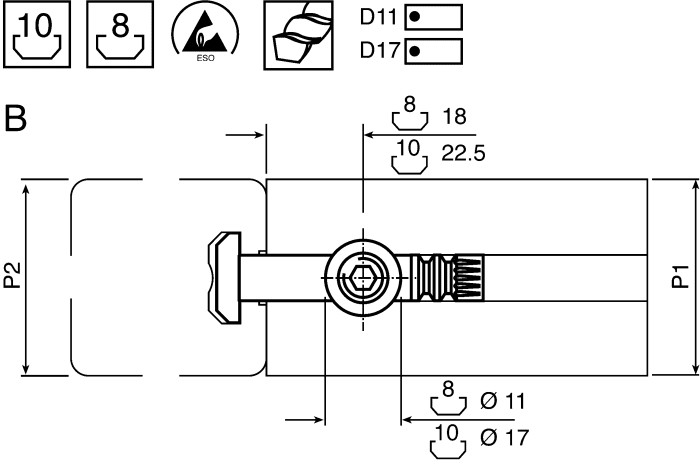

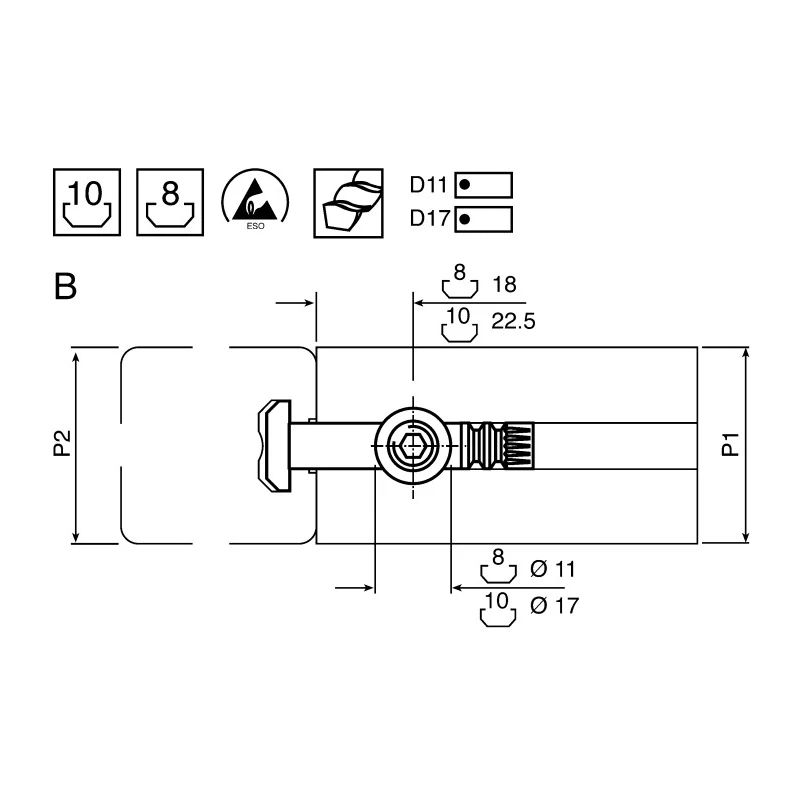

This component features a D17 threaded hole that allows fastening through a 17 mm machined through-hole, ensuring a secure and adjustable connection. The galvanised steel material provides excellent resistance to corrosion, wear, and abrasion, significantly extending the lifespan of assembled structures especially in demanding environments.

Weighing just 55.8 grams, it minimizes load on supporting aluminum profiles, enhancing overall structural stability without adding excessive weight. The ESD protective finish helps prevent static electricity damage, making it suitable for assembly lines and areas handling sensitive electronics or materials.

Common industrial applications include warehouse frameworks, flow racks, production lines, and temporary structures where quick yet reliable assembly is required. The connector enables robust construction capable of withstanding feed forces up to 4000N, ensuring lasting structural integrity.

The 90° connector design facilitates right-angle joining of strut profiles. Compatible with 40 mm to 60 mm MGE series profiles featuring 10 mm slots. Galvanised steel construction for durability and corrosion resistance.

D17 threaded through-hole simplifies assembly and ensures strong fastening. Lightweight at 55.8 g reduces strain on aluminium frames. ESD protection minimizes static discharge risks in sensitive industrial setups. Applications include warehouses, assembly lines, and flow rack construction.

Bosch Rexroth is a leading brand in engineering hardware, renowned for precision and quality. This connecting component exemplifies reliability for structural system builds, ensuring your assembly is stable and long-lasting. Explore more structural Connecting Components and engineering solutions at EnvMart for your industrial and construction needs.
