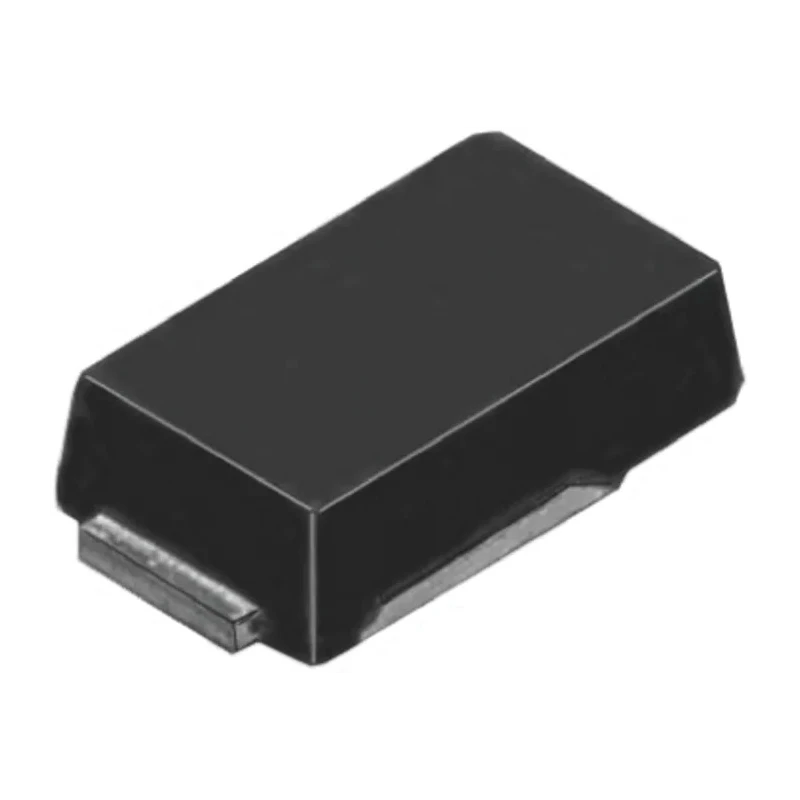

Vishay 30 V 2 A Schottky Diode 2-Pin SMP SS2P3-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | SS2P3-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | SS2P3 |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Designed as a high-performance single diode with a Schottky rectifier configuration.
- Surface mount package type SMP ensures compact footprint and easy assembly.
- Maximum forward voltage drop is low at 0.5 V reducing power loss.
- Operates reliably between -55°C and 150°C, suitable for harsh environments.
- Peak non-repetitive forward surge current capability of 50 A enhances robustness.
- Compact dimensions optimize PCB space.
- Low peak reverse current enhances efficiency in switching applications.
- Manufactured in China under Vishay Semiconductor guidelines.
Product Description
Vishay SS2P3-M3/84A is a 30 V, 2 A Schottky diode in a 2-pin SMP surface mount package designed for power and electronic applications requiring rapid switching and high efficiency.
Featuring a maximum continuous forward current of 2 A with a low forward voltage drop of 0.5 V, this diode is engineered to minimize conduction losses. The device’s fast switching capabilities and low reverse recovery time are ideal for high-frequency switching regulators and power supplies.
This diode operates reliably over a temperature range from -55°C to +150°C, making it suitable for demanding industrial and commercial environments. Its peak non-repetitive surge current rating of 50 A adds robustness for transient voltage scenarios.
The compact SMP package with precise dimensions of 3.61 mm length, 2.18 mm width, and 1.15 mm height facilitates integration on densely packed printed circuit boards, enhancing design flexibility.
The low peak reverse current of 150 μA improves overall circuit efficiency and reduces leakage power in critical applications. Although it does not meet any particular automotive standards, it is well-suited for a broad range of electronics and power component uses.
Designed as a high-performance single diode with a Schottky rectifier configuration. Surface mount package type SMP ensures compact footprint and easy assembly. Maximum forward voltage drop is low at 0.5 V reducing power loss.
Operates reliably between -55°C and 150°C, suitable for harsh environments. Peak non-repetitive forward surge current capability of 50 A enhances robustness. Compact dimensions optimize PCB space. Low peak reverse current enhances efficiency in switching applications.
Manufactured in China under Vishay Semiconductor guidelines. Ideal for industrial, power supply, and electronic component applications requiring fast switching and low losses. Single diode configuration simplifies circuit integration.
This Vishay diode is a reliable choice for engineers designing efficient, compact power electronics and high-frequency switching circuits. Explore similar Schottky diode components and other semiconductor parts at EnvMart for comprehensive electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 2 A.
The peak reverse repetitive voltage for this model is 30 V.
The maximum forward voltage drop is 0.5 V, which helps reduce power loss.
It operates reliably between -55°C and 150°C, making it suitable for harsh environments.
The peak non-repetitive forward surge current capability is rated at 50 A.
The dimensions of the SMP package are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height.
The peak reverse current is 150 μA, which enhances efficiency in switching applications.
This model uses a surface mount type for easy assembly and compact integration.
The diode configuration is a single Schottky diode, simplifying circuit integration.
This diode is manufactured in China under Vishay Semiconductor guidelines.
It is well-suited for industrial, power supply, and electronic component applications requiring fast switching and low losses.
